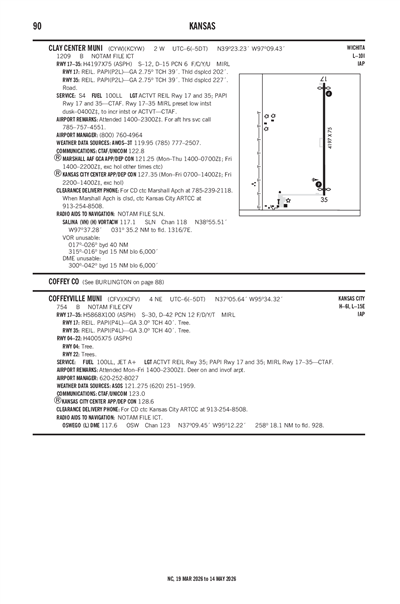

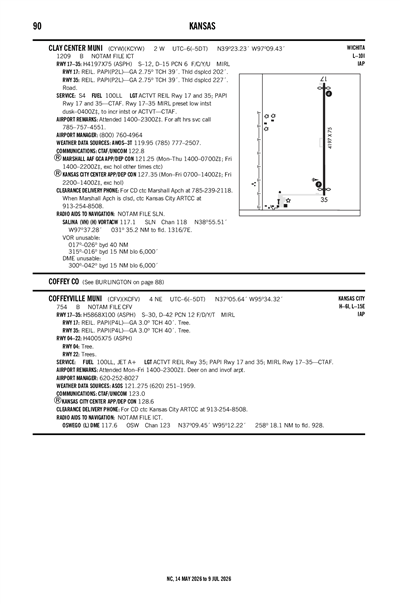

COFFEYVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCFV
COFFEYVILLE MUNI
PublicPUB

4 miles NE of COFFEYVILLE, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 05' 38"N 95° 34' 19"W
754' MSL
1754' MSL
05E
Jet A, 100LL
WICHITA (ICT)
KANSAS CITY
KANSAS CITY (ZKC)
5/16/24-6/13/24
KCFV VFR
4:34 AM CDT
Light Rain
Overcast 11,000'
Few 8,500'
10sm
65°F
62°F
29.88"Hg
150° 12kts
Gusts 16kts
AO2 WSHFT 0844 LTG DSNT ALQDS TSE10 PRESFR P0004 T01830167
KCFV 200934Z AUTO 15012G16KT 10SM -RA FEW085 OVC110 18/17 A2988 RMK AO2 WSHFT 0844 LTG DSNT ALQDS TSE10 PRESFR P0004 T01830167
List Your Business

KCFV FBOs, Flight Schools and Ground Support

Promote Listing
Coffeyville Municipal Airport
Freq: 123.0
Phone: (620) 251-4310
Other: (620) 252-8027
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/30
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.25
Full Serve 5.40 5.07

KCFV Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCFV Hotels

No hotels are listed for this airport.

KCFV Restaurants

No restaurants are listed for this airport.

KCFV Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
620-251-1959
 121.275

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBVO (29nm)
Mon, 5/20 12:25 AM CDT
Mon, 5/20 1:00 AM CDT - Tue, 5/21 1:00 AM CDT
VFR
1:00 AM CDT - 4:00 AM CDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 5,000'
6sm
030° 8kts
MVFR
Temporary 1:00 AM CDT - 3:00 AM CDT
Thunderstorm and Rain and Mist
Broken 2,500'
3sm
VRB° 35kts
Gusts 45kts
VFR
4:00 AM CDT - 6:00 AM CDT
Thunderstorm in vicinity
Broken 10,000'
Scattered 5,000'
6sm
100° 8kts
VFR
6:00 AM CDT - 9:00 AM CDT
Broken 25,000'
6sm
150° 10kts
VFR
9:00 AM CDT - 8:00 PM CDT
Scattered 3,500'
6sm
170° 13kts
Gusts 20kts
VFR
8:00 PM CDT - 1:00 AM CDT
Scattered 25,000'
6sm
170° 10kts
KBVO 200525Z 2006/2106 03008KT 6SM -SHRA VCTS BKN050CB
   TEMPO 2006/2008 VRB35G45KT 3SM TSRA BR BKN025CB
   FM200900 10008KT P6SM VCTS SCT050CB BKN100
   FM201100 15010KT P6SM BKN250
   FM201400 17013G20KT P6SM SCT035
   FM210100 17010KT P6SM SCT250
KCFV
Domestic
5/11/240505Z !CFV 05/002 CFV OBST TOWER LGT (ASR 1033231) 370025.20N0954028.90W (7.2NM SW CFV) 1164.0FT (294.9FT AGL) U/S 2405110505-2407152359
12/28/231732Z !CFV 12/004 CFV OBST TOWER LGT (ASR 1033310) 370839.00N0952843.00W (5.4NM NE CFV) 1131.9FT (354.0FT AGL) U/S 2312281732-2406302359
12/28/231731Z !CFV 12/003 CFV OBST TOWER LGT (ASR 1033309) 370842.00N0952841.00W (5.5NM NE CFV) 1134.8FT (354.0FT AGL) U/S 2312281731-2406302359
12/28/231731Z !CFV 12/002 CFV OBST TOWER LGT (ASR 1033308) 370852.00N0952848.00W (5.5NM NE CFV) 1147.0FT (354.0FT AGL) U/S 2312281731-2406302359
12/28/231731Z !CFV 12/001 CFV OBST TOWER LGT (ASR 1033307) 370855.00N0952846.00W (5.5NM NE CFV) 1146.0FT (354.0FT AGL) U/S 2312281731-2406302359
FDC
8/30/222103Z !FDC 2/9474 CFV IAP COFFEYVILLE MUNI, COFFEYVILLE, KS.
RNAV (GPS) RWY 35, AMDT 1...
TAA SECTOR 085/24 CW 175/24 TO HORSU MINIMUM ALTITUDE 2500.
2208302103-2408302103EST
No
MON-SAT 0800-1600
SUN 1000-1700
AFTER HRS FUEL SVC CALL 620-870-0935.
CITY OF COFFEYVILLE
CITY HALL
COFFEYVILLE, KS 67337
Phone: 620-251-4310
JARROD POWERS
BOX 1629
COFFEYVILLE, KS 67337
Phone: (620) 252-8027
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
CFV
--
ACTVT MIRL RWY 17/35; PAPI RWY 17 & 35 AND REIL RWY 17 & 35 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
25
1
0
0
0
0
None
None
None
None
None

Runway 04/22

4005 ft. x 75 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern
Markings BSC BSC
Markings Condition POOR POOR
Latitude 37° 05' 18"N 37° 05' 46"N
Longitude 95° 34' 24"W 95° 33' 49"W
Elevation 746' 753'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5868 ft. x 100 ft.
ASPH
Fair
NONE
MED
12 /F/D/Y/T
30,000lbs
42,000lbs
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 37° 06' 12"N 37° 05' 14"N
Longitude 95° 34' 28"W 95° 34' 28"W
Elevation 746' 743'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1DEER ON & INVOF ARPT.
A110-3(E81) EXIT LGTS ONLY.
A110-4AFTER HRS CITY OF COFFEYVILLE CONTACT 620-252-8027.
A110-5FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
COFFEYVILLE MUNI (ICAO: KCFV, IATA: CFV) is a public airport located in COFFEYVILLE, KS.
