KCID
THE EASTERN IOWA
PublicPUB

6 miles SW of CEDAR RAPIDS, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 53' 05"N 91° 42' 39"W
869' MSL
1869' MSL
02E
Jet A, 100LL
FORT DODGE (FOD)
CHICAGO
CHICAGO (ZAU)
4/18/24-5/16/24
KCID MVFR
6:04 AM CDT
Mist
Few 200'
5sm
44°F
44°F
30.00"Hg
Calm
AO2 T00670067
KCID 031104Z 00000KT 5SM BR FEW002 07/07 A3000 RMK AO2 T00670067
List Your Business

KCID FBOs, Flight Schools and Ground Support

Promote Listing
Signature Aviation
Freq: 131.0
Phone: (319) 366-1925
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/2
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.91 7.28
Promote Listing
Eastern Iowa Airport
Phone: (319) 362-8336
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 4/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.86
Full Serve

KCID Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCID Hotels

No hotels are listed for this airport.

KCID Restaurants

No restaurants are listed for this airport.

KCID Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.7

ATIS

ATIS
 124.15

Approach

APCH/S
 119.05

Approach/Departure

APCH/P DEP/P
270-090
 134.05
APCH/P DEP/P IC
091-269
 119.7

Clearance Delivery

CD/P
 125.45

Ground

GND/P
 121.6

Tower

LCL/P IC
 118.7

Other

CLASS C
091-269
 119.7
CLASS C
270-090
 134.05

FAA A/FD Pages

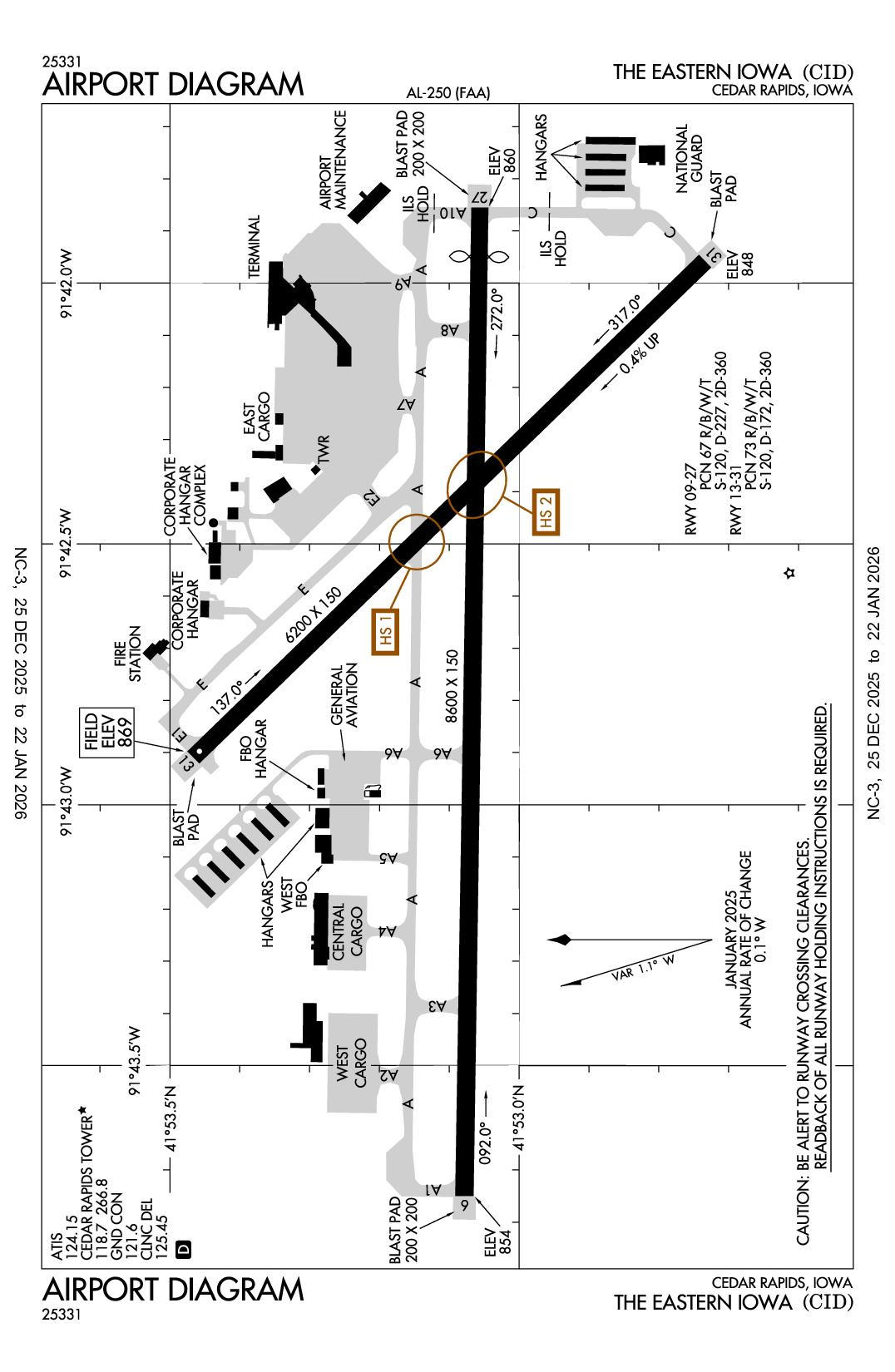

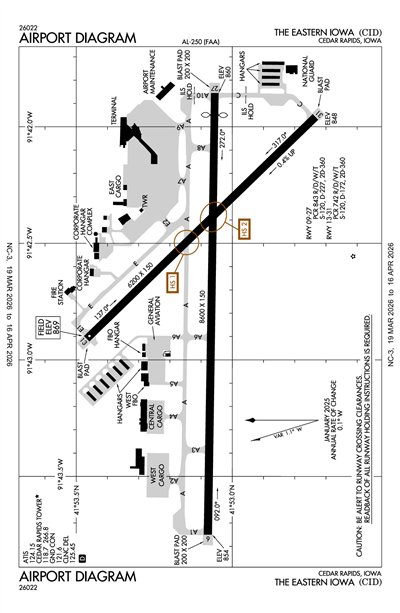

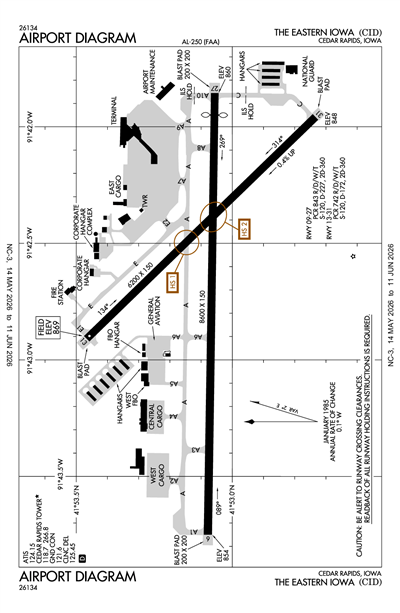

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCID
Fri, 5/3 12:20 AM CDT
Fri, 5/3 1:00 AM CDT - Sat, 5/4 1:00 AM CDT
VFR
1:00 AM CDT - 3:00 AM CDT
Broken 3,500'
Scattered 2,500'
6sm
330° 5kts
MVFR
3:00 AM CDT - 7:00 AM CDT
Mist
Sky Clear
3sm
310° 5kts
VFR
7:00 AM CDT - 11:00 AM CDT
Sky Clear
6sm
020° 5kts
VFR
11:00 AM CDT - 1:00 AM CDT
Sky Clear
6sm
090° 7kts
KCID 030520Z 0306/0406 33005KT P6SM SCT025 BKN035
   FM030800 31005KT 3SM BR SKC
   FM031200 02005KT P6SM SKC
   FM031600 09007KT P6SM SKC
KCID
Domestic
5/3/240651Z !CID 05/005 CID OBST TOWER LGT (ASR 1017926) 415710.60N0914100.50W (4.3NM NNE CID) 1284.8FT (445.9FT AGL) U/S 2405030651-2408310651
4/30/241657Z !CID 04/115 CID OBST CRANE LGT (ASN 2022-ACE-4367-NRA) 415313N0914207W (0.4NM ENE CID) 988FT (125FT AGL) U/S 2404301657-2406302000
3/2/241333Z !CID 03/001 CID APRON TERMINAL RAMP W 550FT WIP CONST LGTD AND BARRICADED 2403021333-2406301200
8/29/231821Z !CID 08/049 CID OBST POLE LGT (ASN 2023-ACE-3624-NRA) 415237N0914141W (0.9NM ESE CID) 884FT (35FT AGL) U/S 2308291821-2408292359
8/29/231821Z !CID 08/048 CID OBST POLE LGT (ASN 2023-ACE-3623-NRA) 415239N0914141W (0.8NM ESE CID) 885FT (37FT AGL) U/S 2308291821-2408292359
8/29/231819Z !CID 08/047 CID OBST POLE LGT (ASN 2023-ACE-3620-NRA) 415257N0914142W (0.7NM E CID) 888FT (39FT AGL) U/S 2308291819-2408292359
8/29/231818Z !CID 08/046 CID OBST POLE LGT (ASN 2023-ACE-3619-NRA) 415308N0914147W (0.6NM E CID) 865FT (8FT AGL) U/S 2308291818-2408292359
FDC
12/11/231307Z !FDC 3/3868 CID IAP THE EASTERN IOWA, CEDAR RAPIDS, IA.
RNAV (GPS) RWY 9, AMDT 2D...
CIRCLING CATS A/B MDA 1360/HAA 491.
TEMPORARY CRANES, UP TO 989 MSL, BEGINNING 2271FT NE OF KCID AIRPORT (2022-ACE-4357/4363/4364/4365/4367-NRA). TEMPORARY CRANE 1005FT MSL 1.12NM EAST OF RWY 27 (2023-ACE-3138-OE).
2312111307-2407161307EST
12/11/231307Z !FDC 3/3866 CID IAP THE EASTERN IOWA, CEDAR RAPIDS, IA.
RNAV (GPS) RWY 27, AMDT 1B...
LNAV/VNAV DA 1350/HAT 488 ALL CATS. VISIBILITY ALL CATS RVR 5000. LNAV MDA 1320/HAT 458 ALL CATS. VISIBILITY CATS C/D RVR 4500. CIRCLING CATS A/B MDA 1360/HAA 491. VDP 1.29 NM TO RW27. WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE IOWA CITY ALTIMETER SETTING: INCREASE LPV DA TO 1241 FEET; INCREASE LNAV/VNAV DA TO 1419 FEET; INCREASE ALL MDA 80 FEET, INCREASE CIRCLING CAT C/D VISIBILITY 1/4 SM. FOR INOPERATIVE MALSR INCREASE LNAV/VNAV ALL CATS VISIBILITY TO RVR 5000 AND LNAV CAT C/D VISIBILITY TO 1 3/8 SM. TEMPORARY CRANES, UP TO 989 MSL, BEGINNING 1313FT NW OF RWY 27 (2022-ACE-4357/4363/4364/4365/4367-NRA). TEMPORARY CRANE 1005FT MSL 1.12NM EAST OF RWY 27 (2023-ACE-3138-OE).
2312111307-2407161307EST
12/11/231307Z !FDC 3/3865 CID IAP THE EASTERN IOWA, CEDAR RAPIDS, IA.
ILS OR LOC RWY 27, AMDT 6H...
S-ILS 27# DA 1112/HAT 250 ALL CATS.
S-LOC 27 MDA 1320/HAT 458 ALL CATS. VIS CATS C/D RVR 4500.
CIRCLING CATS A/B MDA 1360/HAA 491.
VDP AT I-RRU 2.85 DME; DISTANCE VDP TO THLD 1.29 MILES.
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE IOWA CITY ALTIMETER SETTING: INCREASE DA TO 1181 FEET; INCREASE ALL MDA 80 FEET, INCREASE S-LOC CAT C/D VISIBILITY TO RVR 5500, AND CIRCLING CAT C/D VISIBILITY 1/4 SM. DISREGARD NOTE: #RVR 1800 AUTHORIZED WITH USE OF FD OR HUD TO DA.
TEMPORARY CRANES, UP TO 989 MSL, BEGINNING 1313FT NW OF RWY 27 (2022-ACE-4357/4363/4364/4365/4367-NRA). TEMPORARY CRANE 1005FT MSL 1.12NM EAST OF RWY 27 (2023-ACE-3138-OE).
2312111307-2407161307EST
8/29/231613Z !FDC 3/2939 CID ODP THE EASTERN IOWA, CEDAR RAPIDS, IA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
ADD TAKEOFF OBSTACLE NOTE: RWY 9, TEMPORARY CRANE 685FT FROM DER, 647FT RIGHT OF CENTERLINE, 39FT AGL/ 888FT MSL (2023-ACE-3620-NRA).
ADD TAKEOFF OBSTACLE NOTE: RWY 13, TEMPORARY CRANE 1287FT FROM DER, 532FT LEFT OF CENTERLINE, 37FT AGL/ 885FT MSL (2023-ACE-3623-NRA).
2308291613-2410271613EST
Yes
MON-FRI 0430-2300
SAT-SUN 0430-2200
CITY OF CEDAR RAPIDS
101 FIRST STREET SE
CEDAR RAPIDS, IA 52401
Phone: 319-362-3131
MARTIN LENSS, CM
2515 ARTHUR COLLINS PKWY SW
CEDAR RAPIDS, IA 52404-8952
Phone: (319) 731-5711
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
CID
--
WHEN TWR CLSD ACTVT HIRL RY 09/27; MIRL RY 13/31; VASI RY 31, PAPI RYS 13 & 09 AND 27; MALSR RYS 31 & 09 AND 27 (2330-0500) AND TWY LGTS - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
112
4
11
1
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

8600 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH
67 /R/B/W/T
120,000lbs
227,000lbs
360,000lbs
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 53' 05"N 41° 53' 03"N
Longitude 91° 43' 45"W 91° 41' 51"W
Elevation 854' 860'
Threshold Crossing Height 60 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 13/31

6200 ft. x 150 ft.
CONC
Good
GRVD
MED
73 /R/B/W/T
120,000lbs
172,000lbs
360,000lbs
--
  Runway 13 Runway 31
True Heading 136°316°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 53' 28"N 41° 52' 44"N
Longitude 91° 42' 54"W 91° 41' 57"W
Elevation 869' 848'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1BIRDS ON & INVOF ARPT.
A110-2WHEN ATCT CLSD & DURING SNOW & ICE EVENTS; ALL ARR/ DEP ACFT ANNOUNCE THEIR INTENTIONS ON CTAF 5 MINS PRIOR TO USING THE RYS. PERSONNEL & EQUIPMENT PERFORMING SNOW & ICE REMOVAL OPS WILL MONITOR CTAF.
A110-3TWY D IS NON-MOVEMENT SOUTHEAST OF ARPT ACCESS ROAD.
A110-4RY 27 IS CALM WIND RY.
A110-5TRML RAMP IS NON-MOVEMENT. CALL FOR PUSH-BACK NOT RQRD.
A110-7100LL SELF FUELING STATION LOCATED ON WEST GA APRON.
A110-8FOR CD IF UNA TO CTC ON FSS FREQ, CTC CHICAGO ARTCC AT 630-906-8921.
THE EASTERN IOWA (ICAO: KCID, IATA: CID) is a public airport located in CEDAR RAPIDS, IA.
