iFlightPlanner



...

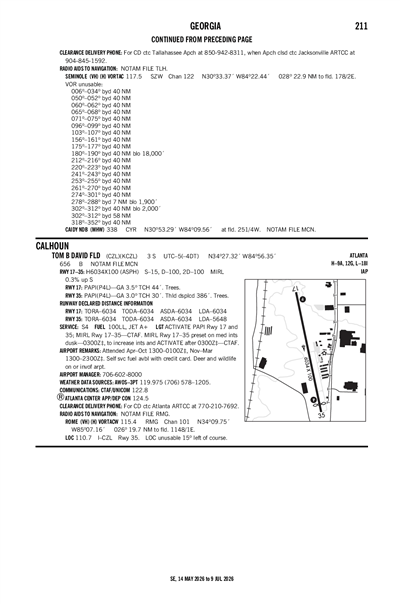

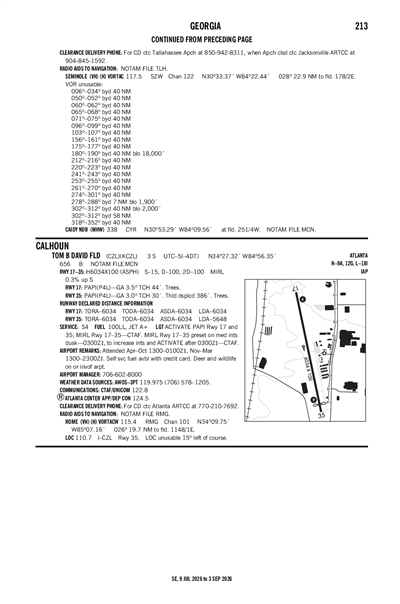

TOM B DAVID FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCZL
TOM B DAVID FLD
PublicPUB

3 miles S of CALHOUN, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 27' 19"N 84° 56' 21"W
656' MSL
1656' MSL
05W
Jet A+, 100LL
MACON (MCN)
ATLANTA
ATLANTA (ZTL)
4/18/24-5/16/24
KCZL VFR
12:15 AM EDT
Overcast 12,000'
Broken 7,500'
Scattered 7,000'
10sm
68°F
68°F
30.04"Hg
Calm
AO2
KCZL 060415Z AUTO 00000KT 10SM SCT070 BKN075 OVC120 20/20 A3004 RMK AO2
List Your Business

KCZL FBOs, Flight Schools and Ground Support

Promote Listing
Calhoun-Gordon County Airport Authority
Freq: 122.8
Phone: (706) 602-8000
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.59 5.49
Full Serve 5.49

KCZL Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KCZL Hotels

No hotels are listed for this airport.

KCZL Restaurants

No restaurants are listed for this airport.

KCZL Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
706-602-5906
 119.975

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRYY (31nm)
Sun, 5/5 9:16 PM EDT
Sun, 5/5 9:00 PM EDT - Mon, 5/6 8:00 PM EDT
VFR
9:00 PM EDT - 12:00 AM EDT
Scattered 10,000'
Few 5,000'
6sm
VRB° 3kts
VFR
12:00 AM EDT - 5:00 AM EDT
Light Showers and Rain
Broken 10,000'
Scattered 2,500'
6sm
VRB° 3kts
MVFR
Temporary 12:00 AM EDT - 3:00 AM EDT
Light Thunderstorm and Rain
Broken 2,500'
N/A
Calm
VFR
5:00 AM EDT - 7:00 AM EDT
Scattered 10,000'
Scattered 1,200'
6sm
Calm
MVFR
7:00 AM EDT - 10:00 AM EDT
Broken 1,200'
6sm
Calm
MVFR
10:00 AM EDT - 12:00 PM EDT
Broken 2,500'
6sm
VRB° 3kts
VFR
12:00 PM EDT - 8:00 PM EDT
Broken 5,000'
6sm
220° 3kts
MVFR
4:00 PM EDT - 8:00 PM EDT
Light Thunderstorm and Rain
Overcast 4,500'
4sm
Calm
KRYY 060116Z 0601/0624 VRB03KT P6SM FEW050 SCT100
   FM060400 VRB03KT P6SM -SHRA SCT025 BKN100
   TEMPO 0604/0607 -TSRA BKN025CB
   FM060900 00000KT P6SM SCT012 SCT100
   FM061100 00000KT P6SM BKN012
   FM061400 VRB03KT P6SM BKN025
   FM061600 22003KT P6SM BKN050
   PROB30 0620/0624 4SM -TSRA OVC045CB
KCZL
Domestic
5/5/240141Z !MCN 05/153 CZL OBST TOWER LGT (ASR 1215271) 342647.00N0844804.10W (6.8NM E CZL) 940.0FT (263.1FT AGL) U/S 2405050141-2405200041
5/4/240023Z !MCN 05/116 CZL OBST TOWER LGT (ASN 2021-ASO-6954-OE) 343316N0850019W (6.7NM NNW CZL) 968FT (310FT AGL) U/S 2405040023-2406020001
4/28/241416Z !MCN 04/849 CZL OBST TOWER LGT (ASR 1020091) 342051.40N0845330.10W (6.8NM SSE CZL) 1290.0FT (210.0FT AGL) U/S 2404281416-2405140400
4/27/241800Z !MCN 04/842 CZL OBST TOWER LGT (ASR 1231681) 343017.30N0844959.10W (6.1NM ENE CZL) 1082.0FT (355.0FT AGL) U/S 2404271800-2405132359
4/14/241719Z !MCN 04/457 CZL OBST TOWER LGT (ASR 1023216) 342122.20N0845301.60W (6.5NM SSE CZL) 1340.9FT (265.1FT AGL) U/S 2404141719-2407130400
4/10/241630Z !MCN 04/269 CZL OBST TOWER LGT (ASR 1027895) 343235.20N0845537.00W (5.3NM NE CZL) 1190.9FT (314.0FT AGL) U/S 2404101630-2408081630
3/1/241845Z !MCN 03/021 CZL OBST TOWER LGT (ASR 1039170) 343254.90N0845532.40W (5.6NM NE CZL) 1286.1FT (480.0FT AGL) U/S 2403011845-2405300500
1/29/242020Z !MCN 01/979 CZL SVC AUTOMATED WX BCST SYSTEM TEL CHANGED TO
706-578-1205 2401292020-2501032359EST
No
NOV-MAR 0800-1800
APR-OCT 0800-2000
CALHOUN-GORDON CO ARPT AUTH
1957 HWY 41 S
CALHOUN, GA 30701
Phone: 706-602-8000
DWIGHT ALBRITTON
1957 HWY 41 S
CALHOUN, GA 30701
Phone: 706-602-8000
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF. MIRL RWY 17/35 PRESET ON MED INTST DUSK - 2200, TO INCR INTST & ACTVT AFT 2200 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
103
7
2
12
0
4
Major
Major
None
None
Air Ambulance
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 17/35

6034 ft. x 100 ft.
ASPH
Good
NONE
MED

15,000lbs
100,000lbs
100,000lbs
--
  Runway 17 Runway 35
True Heading 168°348°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 27' 49"N 34° 26' 50"N
Longitude 84° 56' 28"W 84° 56' 14"W
Elevation 639' 656'
Threshold Crossing Height 44 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1SELF-SVC FUEL AVBL WITH CREDIT CARD.
A110-2DEER & WILDLIFE ON OR INVOF ARPT.
A110-3FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
TOM B DAVID FLD (ICAO: KCZL, IATA: CZL) is a public airport located in CALHOUN, GA.
