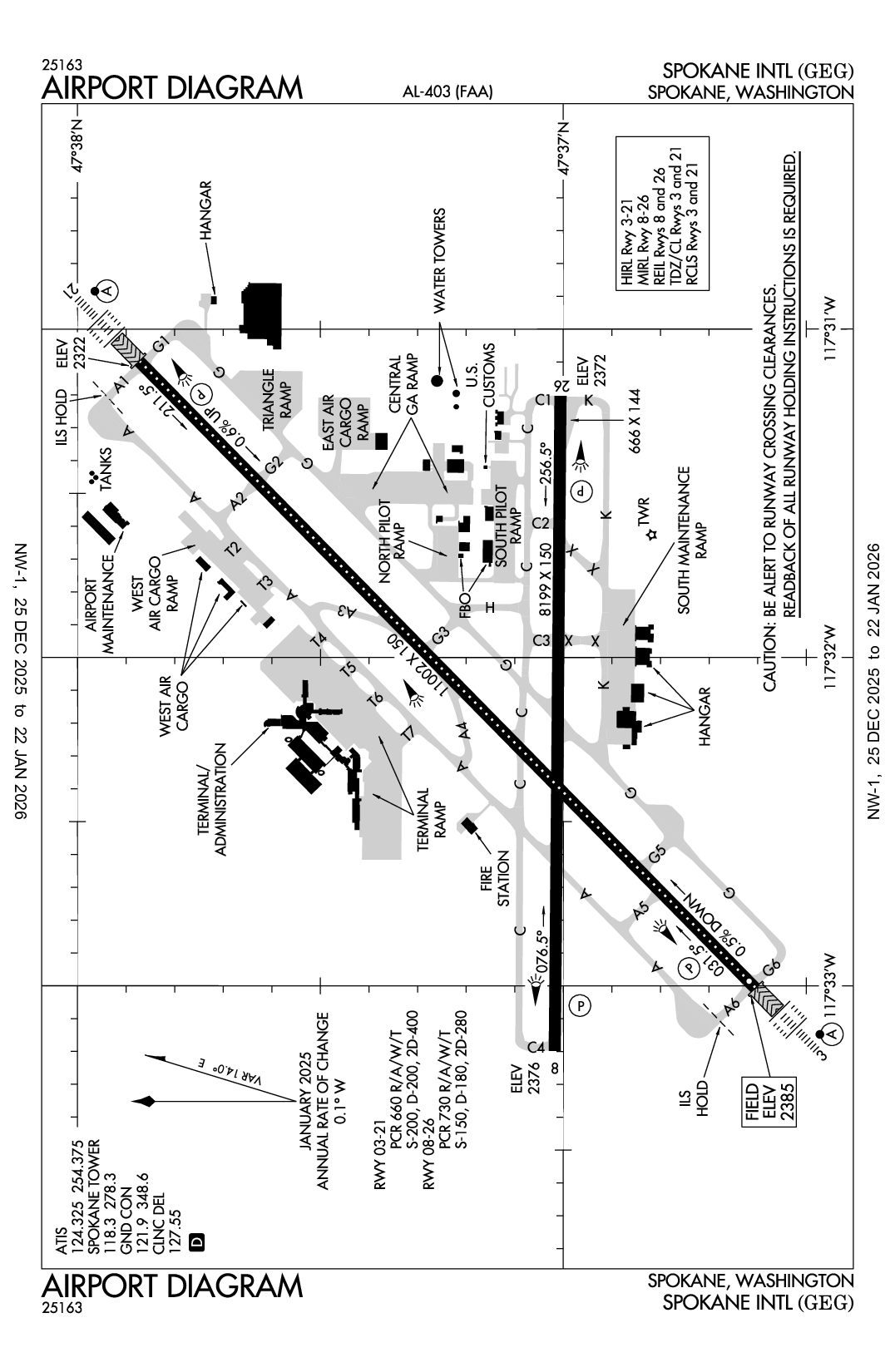

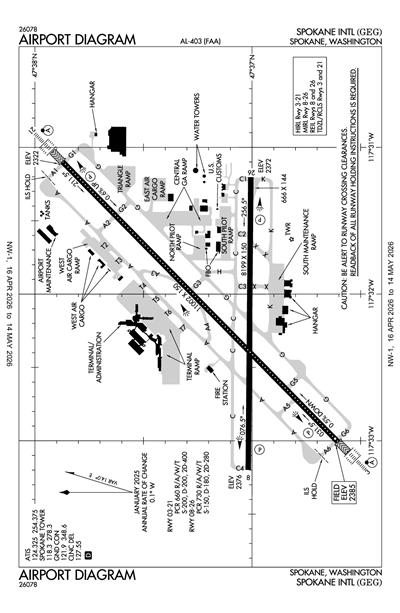

SPOKANE INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGEG
SPOKANE INTL
PublicPUB

5 miles SW of SPOKANE, WA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 37' 08"N 117° 32' 07"W
2385' MSL
3385' MSL
14E
Jet A, 100LL, 100
SEATTLE (SEA)
SEATTLE
SEATTLE (ZSE)
4/18/24-5/16/24
KGEG VFR
11:53 AM PDT
Few 25,000'
Few 3,500'
10sm
60°F
31°F
30.03"Hg
160° 7kts
Gusts 15kts
AO2 SLP167 T01561006
KGEG 031853Z 16007G15KT 10SM FEW035 FEW250 16/M01 A3003 RMK AO2 SLP167 T01561006
List Your Business

KGEG FBOs, Flight Schools and Ground Support

Promote Listing
Signature Aviation
Freq: 122.775
Phone: (509) 455-5204
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel, Independent
As of 5/2
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.05 8.40
Promote Listing
Aero Center
Freq: 129.225
Phone: (509) 206-9256
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel, World Fuel
As of 4/30
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.02 8.45 8.53

KGEG Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KGEG Hotels

No hotels are listed for this airport.

KGEG Restaurants

No restaurants are listed for this airport.

KGEG Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
509-838-0895
 124.325

Approach/Departure

APCH/P DEP/P IC
205-025
 123.75
APCH/P DEP/P IC
026-204
 133.35

Clearance Delivery

CD/P
 127.55

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.3

Other

CLASS C
205-025
 123.75
CLASS C
026-204
 133.35
HILIE STAR
 133.35
ZOOMR STAR
 123.75

Terminal Area Forecast

KGEG
Fri, 5/3 10:39 AM PDT
Fri, 5/3 11:00 AM PDT - Sat, 5/4 11:00 AM PDT
VFR
11:00 AM PDT - 7:00 PM PDT
Few 5,000'
6sm
130° 7kts
VFR
7:00 PM PDT - 12:00 AM PDT
Broken 20,000'
6sm
090° 7kts
VFR
12:00 AM PDT - 11:00 AM PDT
Overcast 20,000'
Broken 15,000'
Scattered 12,000'
6sm
070° 8kts
KGEG 031739Z 0318/0418 13007KT P6SM FEW050
   FM040200 09007KT P6SM BKN200
   FM040700 07008KT P6SM SCT120 BKN150 OVC200
KGEG
Domestic
5/6/241500Z !GEG 05/011 GEG NAV ILS RWY 21 CAT II/III NA 2405061500-2405062200
5/6/241500Z !GEG 05/010 GEG AD AP RVR ALL U/S 2405061500-2405062200
5/2/241529Z !GEG 05/009 GEG AD AP WINDCONE FOR RWY 21 MISSING 2405021529-2405172359EST
5/1/241559Z !GEG 05/007 GEG APRON TERMINAL RAMP SW 1000FT CLSD LGTD AND BARRICADED 2405011559-2406142359
4/28/240911Z !GEG 04/070 GEG OBST TOWER LGT (ASR 1216657) 474151.60N1173110.80W (4.8NM NE GEG) 2463.3FT (263.1FT AGL) U/S 2404280911-2405280001
4/10/241929Z !GEG 04/043 GEG TWY G SOUTH HLDG PAD HLDG PSN MARKINGS REMOVED 2404101929-2405312359
4/10/241405Z !GEG 04/040 GEG APRON NORTH PILOT RAMP NONMOVEMENT AREA BDRY MARKINGS REMOVED 2404101405-2405312359
4/2/241300Z !GEG 04/006 GEG OBST CRANE LGT (ASN 2022-ANM-4650-NRA) 473726N1173225W (0.4NM NW GEG) 2530FT (175FT AGL) U/S FLAGGED NOT LGTD DLY 1300-2359 2404021300-2405312359
FDC
5/3/241400Z !FDC 4/8028 GEG SID SPOKANE INTL, SPOKANE, WA.
SPOKANE SEVEN DEPARTURE...
DEPARTURE PROCEDURE LOST COMMUNICATIONS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GEG VORTAC OUT OF SERVICE. 2405031400-2405100454EST
5/3/241400Z !FDC 4/8023 GEG ODP SPOKANE INTL, SPOKANE, WA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GEG VORTAC OUT OF SERVICE. 2405031400-2405100454EST
5/3/241400Z !FDC 4/8021 GEG IAP SPOKANE INTL, SPOKANE, WA.
ILS OR LOC RWY 21, AMDT 24A...
ILS RWY 21 (SA CAT I) AMDT 24A...
ILS RWY 21 (CAT II AND III) AMDT 24A...
MISSED APPROACH: CLIMB TO 2800 THEN CLIMBING RIGHT TURN TO 6500 ON HEADING 048 TO INTERCEPT COE VOR/DME R-245 TO COE VOR/DME AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GEG VORTAC OUT OF SERVICE. 2405031400-2405100454EST
5/3/241400Z !FDC 4/8019 GEG IAP SPOKANE INTL, SPOKANE, WA.
ILS OR LOC RWY 3, AMDT 7B...
ILS RWY 3 (SA CAT I) AMDT 7B...
ILS RWY 3 (CAT II AND III) AMDT 7B...
MISSED APPROACH: CLIMB TO 3000 THEN CLIMBING RIGHT TURN TO 6500 ON HEADING 057 AND ON COE VOR/DME R-240 TO COE VOR/DME AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GEG VORTAC OUT OF SERVICE. 2405031400-2405100454EST
5/2/241400Z !FDC 4/7245 GEG IAP SPOKANE INTL, SPOKANE, WA.
VOR RWY 3, AMDT 15...
VDP NA,
GEG TACAN OUT OF SERVICE. 2405021400-2405091415EST
4/9/241415Z !FDC 4/8410 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (RNP) Z RWY 21, AMDT 1C...
RNP 0.11 NA. TEMPORARY CRANE 2615FT MSL 3760FT S OF RWY 21 (2023-ANM-3703-NRA), TEMPORARY CRANE 2490 MSL 1540FT NW OF RWY 21 (2023-ANM-5476-NRA).
2404091415-2406241415EST
4/9/241411Z !FDC 4/8401 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (GPS) Y RWY 26, AMDT 4B...
LPV DA 2753/HAT 381 ALL CATS. VISIBILITY ALL CATS 1 1/8. TEMPORARY CRANE 2615FT MSL 1529FT NORTH OF RWY 26 (2023-ANM-3703-NRA).
2404091411-2406241411EST
6/29/230201Z !FDC 3/8448 GEG IAP SPOKANE INTL, SPOKANE, WA.
ILS RWY 03 (SA CAT I), AMDT 7B ...
ILS RWY 21 (SA CAT I), AMDT 24A ...
ILS RWY 03 (CAT II - III), AMDT 7B ...
ILS RWY 21 (CAT II - III), AMDT 24A ...
PROCEDURE NA EXC FOR RDO ALTIMETER TOLERANT ACFT AND ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVE 2023-10-02 AND 5G C-BAND DOMESTIC NOTICES. 2306290201-2506290152EST
Yes
ALL
SPOKANE COUNTY-CITY
ARPT BOARD, 9000 W AIRPORT DRIVE
SPOKANE, WA 99224
Phone: 509-455-6455
LAWRENCE J KRAUTER
9000 W AIRPORT DR., SUITE 204
SPOKANE, WA 99224
Phone: (509) 455-6418
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
GEG
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
36
10
12
2
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

11002 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
HIGH
88 /R/B/W/T
200,000lbs
200,000lbs
400,000lbs
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 36' 36"N 47° 37' 52"N
Longitude 117° 33' 00"W 117° 31' 06"W
Elevation 2,385' 2,322'
Threshold Crossing Height 69 ft. AGL 73 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 08/26

8199 ft. x 150 ft.
ASPH
Good
GRVD
MED
40 /R/B/X/T
150,000lbs
180,000lbs
280,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 37' 01"N 47° 37' 00"N
Longitude 117° 33' 12"W 117° 31' 12"W
Elevation 2,376' 2,372'
Threshold Crossing Height 45 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2BE ALERT TO TURBULENCE OVER SMOKE STACKS 1 MILE EAST OF ARPT.
A110-4WATERFOWL & BIRDS ON & INVOF ARPT.
A110-6TWY K UNLGTD ON RAMP SIDE ALONG MAINTENANCE RAMP AND IS UNAVBL BELOW 1200 RVR UNLESS UNDER ESCORT BY "FOLLOW ME".
A110-7PORTIONS OF TWY K NOT VISIBLE FM ATCT.
SPOKANE INTL (ICAO: KGEG, IATA: GEG) is a public airport located in SPOKANE, WA.
