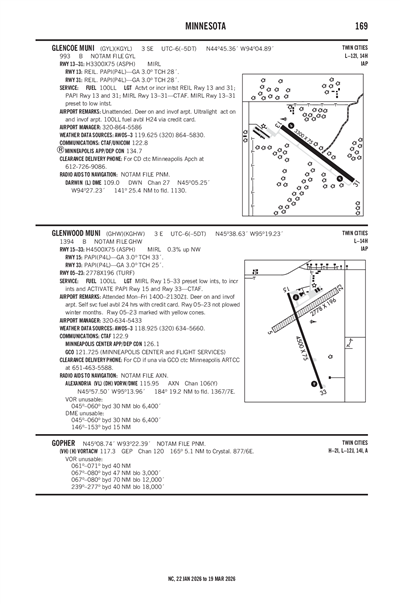

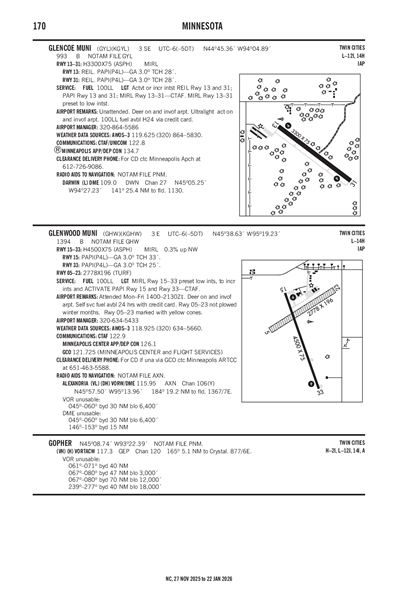

GLENWOOD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGHW
GLENWOOD MUNI
PublicPUB

3 miles E of GLENWOOD, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 38' 38"N 95° 19' 14"W
1394' MSL
2394' MSL
04E
100LL
PRINCETON (PNM)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KGHW VFR
2:55 AM CDT
Rain
Broken 4,200'
Broken 3,400'
Scattered 2,800'
10sm
54°F
52°F
29.81"Hg
100° 5kts
AO2 LTG DSNT E
KGHW 200755Z AUTO 10005KT 10SM RA SCT028 BKN034 BKN042 12/11 A2981 RMK AO2 LTG DSNT E
List Your Business

KGHW FBOs, Flight Schools and Ground Support

Promote Listing
Glenwood Municipal Airport
Phone: (320) 634-5433
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/26
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.65
Full Serve

KGHW Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KGHW Hotels

No hotels are listed for this airport.

KGHW Restaurants

No restaurants are listed for this airport.

KGHW Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3

AWOS-3
320-634-5660
 118.925

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAXN (14nm)
Mon, 5/20 12:30 AM CDT
Mon, 5/20 1:00 AM CDT - Tue, 5/21 1:00 AM CDT
VFR
1:00 AM CDT - 5:00 AM CDT
Light Showers and Rain
Overcast 3,500'
6sm
010° 4kts
MVFR
Temporary 1:00 AM CDT - 3:00 AM CDT
Light Thunderstorm and Rain and Mist
Overcast 2,800'
3sm
Calm
IFR
5:00 AM CDT - 10:00 AM CDT
Mist
Overcast 800'
4sm
140° 5kts
MVFR
10:00 AM CDT - 2:00 PM CDT
Broken 1,300'
6sm
310° 8kts
VFR
2:00 PM CDT - 1:00 AM CDT
Broken 8,000'
Scattered 2,200'
6sm
320° 11kts
KAXN 200530Z 2006/2106 01004KT 6SM -SHRA OVC035
   TEMPO 2006/2008 3SM -TSRA BR OVC028CB
   FM201000 14005KT 4SM BR OVC008
   FM201500 31008KT P6SM BKN013
   FM201900 32011KT P6SM SCT022 BKN080
KGHW
FDC
11/20/232051Z !FDC 3/4270 GHW IAP GLENWOOD MUNI, GLENWOOD, MN.
VOR RWY 33, AMDT 2D...
MOX VOR R-087 UNUSABLE AT MONKE (IAF, FAF). DME REQUIRED.
2311202051-2511202051EST
No
MON-FRI 0800-1530
CITY OF GLENWOOD
137 E MINNESOTA
GLENWOOD, MN 56334
Phone: 320-634-5433
DAVID IVERSON
137 E. MINNESOTA AVE
GLENWOOD, MN 56334
Phone: 320-634-5433
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
GHW
--
MIRL RY 15/33 PRESET LOW INTST; TO INCREASE INTST AND ACTIVATE PAPI RY 15 AND 33 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
0
0
0
0
0
None
None
None
None
Avionics
Aircraft Sales

Runway 05/23

2778 ft. x 196 ft.
TURF
Good
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 58°238°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition
Latitude 45° 38' 39"N 45° 38' 54"N
Longitude 95° 19' 31"W 95° 18' 58"W
Elevation 1,394' 1,394'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 15/33

4500 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 15 Runway 33
True Heading 162°342°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 38' 53"N 45° 38' 11"N
Longitude 95° 19' 23"W 95° 19' 03"W
Elevation 1,391' 1,377'
Threshold Crossing Height 33 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RY 05/23 NOT PLOWED WINTER MONTHS.
A110-3DEER ON & INVOF ARPT.
A110-4GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.
A110-5FOR CD IF UNA VIA GCO CTC MINNEAPOLIS ARTCC AT 651-463-5588.
GLENWOOD MUNI (ICAO: KGHW, IATA: GHW) is a public airport located in GLENWOOD, MN.
