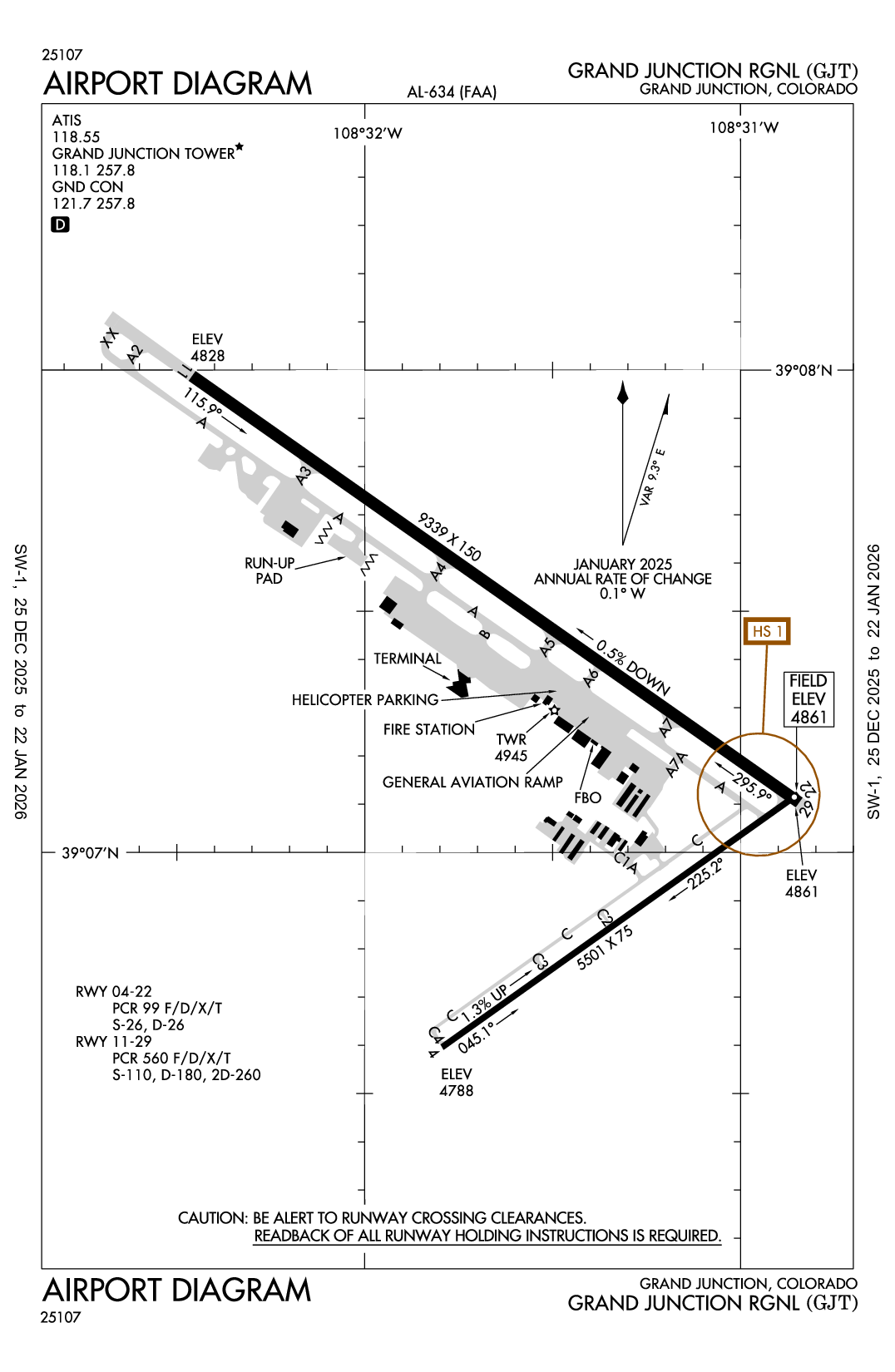

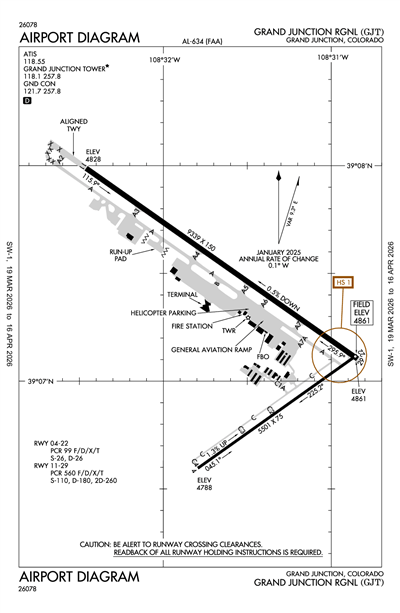

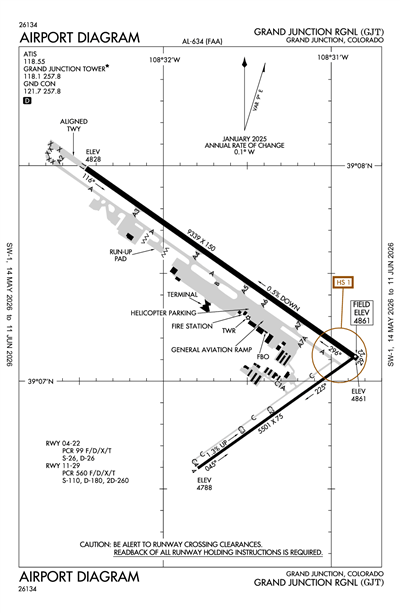

GRAND JUNCTION RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGJT
GRAND JUNCTION RGNL
PublicPUB

3 miles NE of GRAND JUNCTION, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 07' 21"N 108° 31' 36"W
4861' MSL
5861' MSL
13E
Jet A, 100LL
DENVER (DEN)
DENVER
DENVER (ZDV)
4/18/24-5/16/24
KGJT VFR
1:53 AM MDT
Clear
10sm
55°F
18°F
29.84"Hg
110° 12kts
AO2 SLP057 T01281078
KGJT 030753Z AUTO 11012KT 10SM CLR 13/M08 A2984 RMK AO2 SLP057 T01281078
List Your Business

KGJT FBOs, Flight Schools and Ground Support

Promote Listing
West Star Aviation
Freq: 129.575
Phone: (970) 243-7500
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/24
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.65
Full Serve 6.90 8.60

KGJT Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KGJT Hotels

No hotels are listed for this airport.

KGJT Restaurants

No restaurants are listed for this airport.

KGJT Other Airport-Related Businesses

Grand Junction Aircraft Sales
Phone: (970) 210-6000
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.1

ATIS

ATIS
 118.55

ASOS

ASOS
970-245-7881
 118.55

Ground

GND/P IC
 121.7

Tower

LCL/P
 118.1

Other

VFR ADZY
 118.1

Terminal Area Forecast

KGJT
Thu, 5/2 11:20 PM MDT
Fri, 5/3 12:00 AM MDT - Sat, 5/4 12:00 AM MDT
VFR
12:00 AM MDT - 3:00 AM MDT
Scattered 25,000'
6sm
300° 5kts
VFR
3:00 AM MDT - 10:00 AM MDT
Few 25,000'
6sm
110° 10kts
VFR
10:00 AM MDT - 12:00 PM MDT
Few 12,000'
6sm
190° 11kts
VFR
12:00 PM MDT - 8:00 PM MDT
Few 11,000'
6sm
290° 16kts
Gusts 28kts
VFR
8:00 PM MDT - 12:00 AM MDT
Few 9,000'
6sm
360° 12kts
Gusts 20kts
KGJT 030520Z 0306/0406 30005KT P6SM SCT250
   FM030900 11010KT P6SM FEW250
   FM031600 19011KT P6SM FEW120
   FM031800 29016G28KT P6SM FEW110
   FM040200 36012G20KT P6SM FEW090
KGJT
Domestic
5/4/240559Z !GJT 05/006 GJT RWY 04/22 CLSD EXC 30MIN PPR 970-260-7164 DLY 0559-1200 2405040559-2405061200
5/2/241529Z !GJT 05/011 GJT SVC TAR U/S 2405021529-2405032000EST
5/2/240559Z !GJT 05/007 GJT RWY 04/22 OPN DLY 0559-1200 2405020559-2405031200
5/2/240559Z !GJT 04/089 GJT RWY 11/29 CLSD DLY 0559-1200 2405020559-2405061200
5/2/240445Z !GJT 05/009 GJT SVC SSR U/S 2405020445-2405032000EST
5/1/240559Z !GJT 04/133 GJT RWY 04/22 REDL U/S EXC LOW INTST ON CONS 2405010559-2405061200
4/29/240559Z !GJT 04/130 GJT RWY 29 RWY END ID LGT U/S DLY 0559-1200 2404290559-2405151200
4/29/240559Z !GJT 04/129 GJT NAV LOC TYPE DIRECTIONAL AID RWY 29 U/S DLY 0559-1200 2404290559-2405151200
4/29/240559Z !GJT 04/128 GJT RWY 29 VASI U/S DLY 0559-1200 2404290559-2405151200
4/27/241200Z !GJT 04/103 GJT RWY 11/29 SFC MARKINGS NOT STD 2404271200-2405172359
4/27/241200Z !GJT 04/087 GJT RWY 29 DECLARED DIST: TORA 9339FT TODA 9339FT ASDA 9339FT LDA 9339FT. 2404271200-2405312359
4/27/241200Z !GJT 04/086 GJT RWY 11 THR DISPLACED 1164FT. DECLARED DIST: TORA 9339FT TODA 9339FT ASDA 9339FT LDA 9339FT. 2404271200-2405312359
4/27/240628Z !GJT 04/104 GJT AD AP WDI FOR RWY 11 RELOCATED SW SIDE 2404270628-2405312359
4/17/241719Z !GJT 04/057 GJT TWY A1 CLSD 2404171719-PERM
4/12/241243Z !GJT 04/035 GJT RWY 11 RVR U/S 2404121243-2812292200
4/12/241243Z !GJT 04/034 GJT NAV ILS RWY 11 U/S 2404121243-2405312200
4/12/241242Z !GJT 04/033 GJT RWY 11 ALS U/S 2404121242-2405312200
3/26/241659Z !GJT 03/101 GJT AD AP WDI FOR RWY 11 RELOCATED SW SIDE 2403261659-2406302359
3/9/240659Z !GJT 03/033 GJT RWY 11 PAPI U/S 2403090659-2405312359
FDC
10/19/231526Z !FDC 3/8132 GJT IAP GRAND JUNCTION RGNL, GRAND JUNCTION, CO.
ILS OR LOC RWY 11, AMDT 16E...
I-GJT DME UNUSABLE AT WINDO.
2310191526-2510191522EST
1/3/232022Z !FDC 3/0649 GJT SID GRAND JUNCTION REGIONAL, Grand Junction, CO.
GRAND JUNCTION SEVEN DEPARTURE...
DISREGARD NOTE: TOP ALTITUDE: 6000.
NOTE: TOP ALTITUDE: 14000.
ALL OTHER DATA REMAINS AS PUBLISHED. 2301032022-2501022022EST
Yes
0530-0000L
FOR FUEL AFT HRS CALL 970-243-7500.
GRAND JUNCTION REG ARPT AUTH
2828 WALKER FLD DR SUITE 301
GRAND JUNCTION, CO 81506
Phone: 970-244-9100
ANGELA PADALECKI
2828 WALKER FIELD DRIVE SUITE 301
GRAND JUNCTION, CO 81506
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
GJT
--
WHEN ATCT CLSD ACTVT MALSR RWY 11; HIRL RWY 11/29; TWY LGTS - CTAF. REIL RWY 29; PAPI RWY 11; VASI RWY 29 ON CONSLY. REIL RWY 04 & 22; PAPI RWY 04; MIRL RWY 04/22 ON CONSLY DURG ATCT OPER HRS AND OFF WHEN ATCT CLSD.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
130
35
4
2
0
0
Major
Major
High Pressure
High Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

5501 ft. x 75 ft.
ASPH
Good
GRVD
MED

26,000lbs
26,000lbs
--
--
  Runway 04 Runway 22
True Heading 54°234°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 39° 06' 36"N 39° 07' 07"N
Longitude 108° 31' 48"W 108° 30' 51"W
Elevation 4,788' 4,861'
Threshold Crossing Height 41 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 11/29

10503 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH
57 /F/C/X/T
110,000lbs
180,000lbs
260,000lbs
--
  Runway 11 Runway 29
True Heading 125°305°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 39° 08' 06"N 39° 07' 06"N
Longitude 108° 32' 40"W 108° 30' 51"W
Elevation 4,823' 4,861'
Threshold Crossing Height 51 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1TWY C1A & TWY C, 150 FT EITHER SIDE OF THE INTXN NOT VSBL FM ATCT.
A110-10CONDITIONS NOT MONITORED 0000-0530 LOCAL TIME EXCEPT BY PPR.
A110-11CD FONE: WHEN TWR CLSD, CTC GRAND JUNCTION APCH 303-342-1916. IFUN, CTC DENVER ARTCC 303-342-4257.
A110-2HEL PRKG AVBL AT FBO; PPR RCMDD.
A110-3FLOCKS OF BIRDS ON & INVOF ARPT.
A110-6NOISE ABATEMENT PROCEDURES IN EFCT, CTC ARPT MGMT FOR DETAILS AT (970) 244-9100.
A110-7JASU: 1(MD-3A), 1(NC-10A/A1/BC), 2(AM32A-60B).
A110-8FLUID: SP, LHOX LOX, LHNIT, DE-ICE(MIL A-8243).
A110-9ARPT OPS NUMBER IS 970-260-7164. PLEASE CALL FOR ANY NOTAMS OR CONCERNS.
GRAND JUNCTION RGNL (ICAO: KGJT, IATA: GJT) is a public airport located in GRAND JUNCTION, CO.
