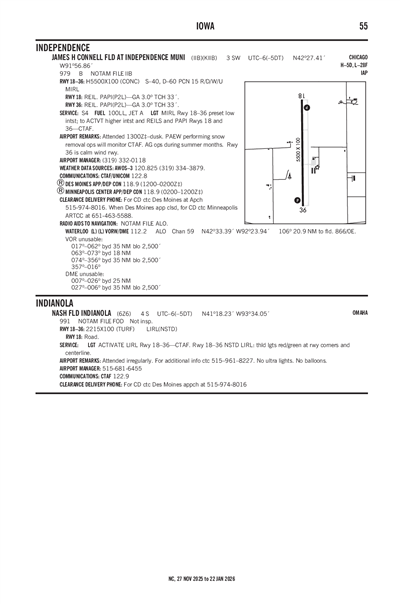

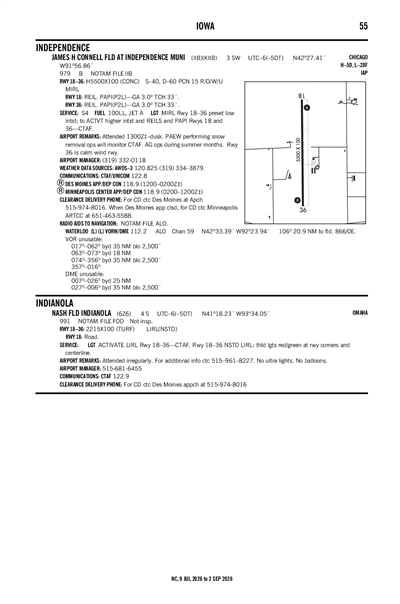

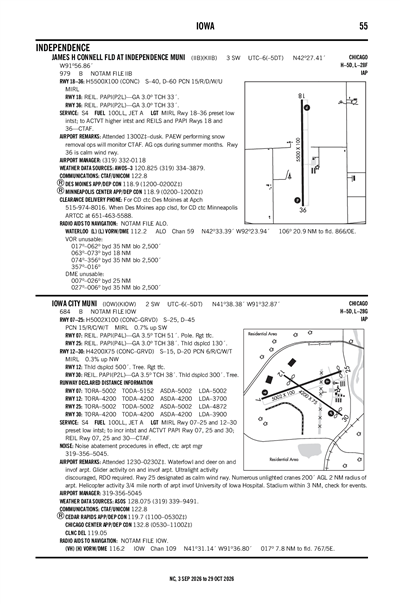

JAMES H CONNELL FLD AT INDEPENDENCE MUNI - Airport Diagram

KIIB

JAMES H CONNELL FLD AT INDEPENDENCE MUNI

PublicPUB

3 miles SW of INDEPENDENCE, IA

View on Map

Status

Operational

Coordinates

42° 27' 25"N 91° 56' 52"W

Elevation

979' MSL

Pattern Alt

1979' MSL

Mag Variation

00E

Fuel

Jet A, 100LL

FSS

FORT DODGE (FOD)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

4/18/24-5/16/24

KIIB VFR

11:35 PM CDT RAW

Overcast 8,000'

Viz

10sm

Temp

53°F

Dew

50°F

Pres

29.97"Hg

Wind

010° 6kts

RMK

AO2 T01190099

KIIB 020435Z AUTO 01006KT 10SM OVC080 12/10 A2997 RMK AO2 T01190099

List Your Business

KIIB FBOs, Flight Schools and Ground Support

Promote Listing

P&N Flight and Charter

Freq: 122.8

Phone: (319) 777-9488

Other: (319) 377-0457

0 Reviews (Read | Sign In To Write)

Avfuel

As of 4/24	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	5.50	5.00
Full Serve

KIIB Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KIIB Hotels

No hotels are listed for this airport.

KIIB Restaurants

No restaurants are listed for this airport.

KIIB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3

319-334-3879

120.825

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KALO (21nm)

RAW

Reported

Wed, 5/1 6:37 PM CDT

Valid

Wed, 5/1 7:00 PM CDT - Thu, 5/2 7:00 PM CDT

VFR

7:00 PM CDT - 9:00 PM CDT

Broken 13,000'

Viz

6sm

Wind

VRB° 4kts

VFR

9:00 PM CDT - 8:00 AM CDT

Light Showers and Rain

Overcast 8,000'

Viz

6sm

Wind

070° 9kts

MVFR

8:00 AM CDT - 11:00 AM CDT

Showers and Rain and Mist and Thunderstorm in vicinity

Overcast 2,600'

Viz

4sm

Wind

110° 16kts

Gusts 26kts

Shear 140° 45kts @ 2000'

IFR

11:00 AM CDT - 4:00 PM CDT

Showers and Rain and Mist and Thunderstorm in vicinity

Overcast 700'

Viz

3sm

Wind

130° 15kts

Gusts 24kts

IFR

4:00 PM CDT - 7:00 PM CDT

Showers and Rain and Mist and Thunderstorm in vicinity

Overcast 900'

Viz

4sm

Wind

190° 11kts

KALO 012337Z 0200/0224 VRB04KT P6SM BKN130
   FM020200 07009KT P6SM -SHRA OVC080
   FM021300 11016G26KT 4SM SHRA BR VCTS OVC026CB WS020/14045KT
   FM021600 13015G24KT 3SM SHRA BR VCTS OVC007CB
   FM022100 19011KT 4SM SHRA BR VCTS OVC009CB

KIIB

Domestic
5/1/240635Z	!IIB 05/001 IIB OBST TOWER LGT (ASR 1226698) 422636.40N0921147.60W (11.0NM W IIB) 1207.0FT (265.1FT AGL) U/S 2405010635-2407300400
4/29/240217Z	!IIB 04/003 IIB OBST TOWER LGT (ASR 1209216) 422719.20N0920040.90W (2.8NM W IIB) 1334.0FT (357.0FT AGL) U/S 2404290217-2408270217
4/14/240132Z	!IIB 04/001 IIB OBST TOWER LGT (ASR 1053693) 422832.00N0915227.00W (3.4NM ENE IIB) 1387.8FT (426.5FT AGL) U/S 2404140132-2408120132
3/17/242009Z	!IIB 03/002 IIB OBST TOWER LGT (ASR 1254521) 422307.80N0914842.10W (7.4NM SE IIB) 1282.2FT (310.0FT AGL) U/S 2403172009-2406171159

ATC Tower

Attendance

0700-DUSK

Owner

CITY OF INDEPENDENCE
331 1ST ST. EAST
INDEPENDENCE, IA 50644
Phone: 319-334-2780

Manager

BRETT SOUKUP
1684 - 230TH STREET, P.O. BOX 214
INDEPENDENCE, IA 50644-0506
Phone: (319) 332-0118

FSS

FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF

NOTAM

IIB

Light Schedule

Lights

MIRL RY 18/36 PRESET LOW INTST; TO ACTVT HIGHER INTST & REILS & PAPI RYS 18 & 36 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Charter Service
Pilot Instruction
Aircraft Rental

Runway 18/36

Dimensions

5500 ft. x 100 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

15 /R/D/W/U

Single Wheel

40,000lbs

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	179°	359°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	42° 27' 52"N	42° 26' 58"N
Longitude	91° 56' 52"W	91° 56' 51"W
Elevation	970'	979'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	PAEW PERFORMING SNOW REMOVAL OPS WILL MONITOR CTAF.
A110-2	AG OPS DURG SUMMER MONTHS.
A110-3	RY 36 IS CALM WIND RY.
A110-4	CLEARANCE DELIVERY PHONE: FOR CD CTC WATERLOO APCH 319-233-4835. WHEN WATERLOO APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.

JAMES H CONNELL FLD AT INDEPENDENCE MUNI (ICAO: KIIB, IATA: IIB) is a public airport located in INDEPENDENCE, IA.
