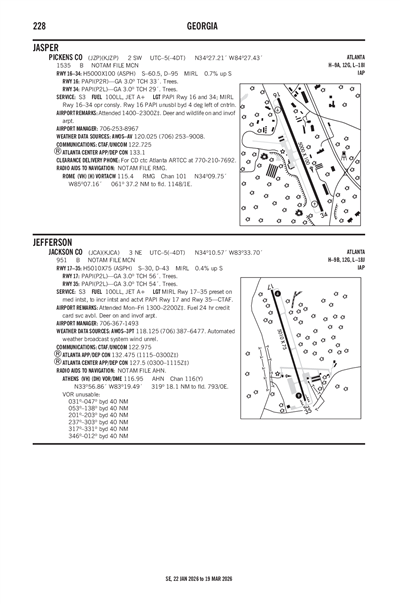

JACKSON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJCA
JACKSON COUNTY
PublicPUB

3 miles NE of JEFFERSON, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 10' 34"N 83° 33' 42"W
950' MSL
1950' MSL
05W
Jet A+, 100LL
MACON (MCN)
ATLANTA
ATLANTA (ZTL)
4/18/24-5/16/24
KJCA MVFR
8:55 AM EDT
Rain
Overcast 6,000'
5sm
64°F
32°F
30.06"Hg
050° 6kts
AO2 P0001 T0176////
KJCA 031255Z AUTO 05006KT 5SM RA OVC060 18/ A3006 RMK AO2 P0001 T0176////
List Your Business

KJCA FBOs, Flight Schools and Ground Support

Jackson County Airport
Freq: 122.975
Phone: (706) 367-1493
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan, Other
As of 5/2
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.79 4.19
Full Serve 4.49 4.59

KJCA Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KJCA Hotels

No hotels are listed for this airport.

KJCA Restaurants

No restaurants are listed for this airport.

KJCA Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 122.975

AWOS-3PT

AWOS-3PT
706-387-6477
 118.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAHN (18nm)
Fri, 5/3 7:38 AM EDT
Fri, 5/3 8:00 AM EDT - Sat, 5/4 8:00 AM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Light Rain
Broken 10,000'
Scattered 5,000'
6sm
Calm
VFR
11:00 AM EDT - 2:00 PM EDT
Broken 12,000'
Scattered 6,000'
6sm
150° 3kts
VFR
2:00 PM EDT - 10:00 PM EDT
Showers in vicinity
Broken 8,000'
Scattered 5,000'
6sm
170° 8kts
MVFR
Temporary 5:00 PM EDT - 9:00 PM EDT
Light Thunderstorm and Rain and Mist
Broken 2,500'
4sm
Calm
VFR
10:00 PM EDT - 6:00 AM EDT
Broken 8,000'
Scattered 4,000'
6sm
100° 3kts
MVFR
6:00 AM EDT - 8:00 AM EDT
Mist
Broken 1,200'
6sm
VRB° 3kts
KAHN 031138Z 0312/0412 00000KT P6SM -RA SCT050 BKN100
   FM031500 15003KT P6SM SCT060 BKN120
   FM031800 17008KT P6SM VCSH SCT050 BKN080
   TEMPO 0321/0401 4SM -TSRA BR BKN025CB
   FM040200 10003KT P6SM SCT040 BKN080
   FM041000 VRB03KT 6SM BR BKN012
KJCA
Domestic
4/24/240040Z !MCN 04/740 JCA OBST TOWER LGT (ASR 1039166) 341201.00N0832543.80W (6.8NM ENE JCA) 1327.1FT (478.0FT AGL) U/S 2404240040-2407220400
4/19/241306Z !MCN 04/624 JCA OBST TOWER LGT (ASR 1325239) 341821.10N0833857.20W (8.9NM NNW JCA) 1177FT (265FT AGL) U/S 2404191306-2405202359
4/10/241434Z !MCN 04/265 JCA OBST TOWER LGT (ASR 1326400) 341658.90N0832527.00W (9.37NM NE JCA) 972FT (208FT AGL) OUT OF SERVICE 2404101433-2404251433 2404101434-2407102359
FDC
4/16/241554Z !FDC 4/1481 JCA IAP JACKSON COUNTY, JEFFERSON, GA.
RNAV (GPS) RWY 17, AMDT 3...
CIRCLING CAT C/D MDA 1580/HAT 629. CIRCLING CAT C VISIBILITY 1 3/4.
DELETE NOTE: DME/DME RNP-0.3 NA. PBN REQUIREMENTS NOTE: RNP
APCH-GPS. DELETE PROFILE NOTE *LNAV ONLY. DELETE ASTERISK FROM
MINIMUM ALTITUDE 2060 AT KAWAS 2.9 NM TO RW17. DELETE ASTERISK FROM
VDP 1 NM TO RW17. CHANGE HELICOPTER NOTE TO READ: RWY 17 HELICOPTER
VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. CHANGE ALTIMETER
NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WINDER
ALTIMETER SETTING; INCREASE LPV DA TO 1310 FEET; INCREASE LNAV/VNAV
DA TO 1363 FEET; INCREASE ALL MDAS 40 FEET AND LNAV VISIBILITY CATS
C/D 1/8 SM. CHANGE NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV
SYSTEMS, LNAV/VNAV NA BELOW -16C OR ABOVE 53C. ALTERNATE MINIMUMS:
STANDARD; NA WHEN LOCAL WEATHER NOT AVAILABLE.
THIS IS RNAV (GPS) RWY 17, AMDT 3A. 2404161554-PERM
No
MON-FRI 0800-1700
JACKSON COUNTY, C/O COUNTY MGR.
67 ATHENS STREET
JEFFERSON, GA 30549
Phone: 706-367-6314
TOM STRONG
500 SKY HARBOR DRIVE
JEFFERSON, GA 30549
Phone: 706-367-1493
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
MIRL RWY 17/35 PRESET ON LOW INTST. TO INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
55
5
0
3
0
4
Major
Minor
None
None
Avionics
Pilot Instruction
Aircraft Rental

Runway 17/35

5010 ft. x 75 ft.
ASPH
Excellent
NONE
MED

30,000lbs
43,000lbs
--
--
  Runway 17 Runway 35
True Heading 163°343°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 10' 58"N 34° 10' 10"N
Longitude 83° 33' 51"W 83° 33' 34"W
Elevation 931' 950'
Threshold Crossing Height 56 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER ON & INVOF ARPT.
A110-3FUEL 24 HR CREDIT CARD SVC AVBL.
A110-4FOR APCH/DEP SVC CTC ATLANTA APCH AT 678-364-6131. WHEN ATLANTA APCH UNAVBL CTC ATLANTA ARTCC AT 770-210-7692.
JACKSON COUNTY (ICAO: KJCA, IATA: JCA) is a public airport located in JEFFERSON, GA.
