iFlightPlanner



...

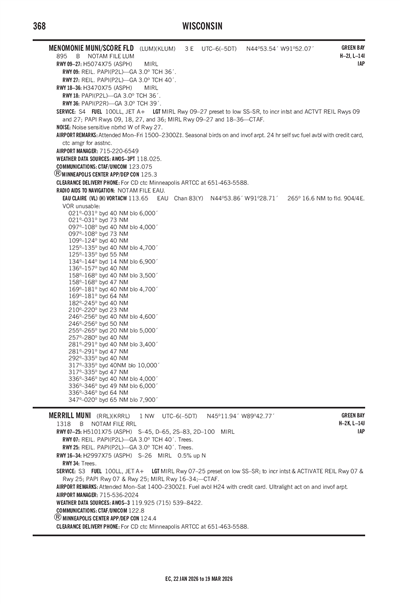

MENOMONIE MUNI/SCORE FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLUM
MENOMONIE MUNI/SCORE FLD
PublicPUB

3 miles E of MENOMONIE, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 53' 32"N 91° 52' 04"W
895' MSL
1895' MSL
01E
Jet A+, 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KLUM VFR
6:35 AM CDT
Overcast 10,000'
Broken 5,000'
Broken 4,300'
7sm
57°F
57°F
29.86"Hg
120° 6kts
AO2 P0001 T01410141 PWINO
KLUM 201135Z AUTO 12006KT 7SM BKN043 BKN050 OVC100 14/14 A2986 RMK AO2 P0001 T01410141 PWINO
List Your Business

KLUM FBOs, Flight Schools and Ground Support

Promote Listing
Gibson Aviation Services
Freq: 122.7
Phone: (715) 220-6549
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 4/28
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.90 4.17
Full Serve

KLUM Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLUM Hotels

No hotels are listed for this airport.

KLUM Restaurants

No restaurants are listed for this airport.

KLUM Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
715-235-5342
 118.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEAU (16nm)
Mon, 5/20 6:52 AM CDT
Mon, 5/20 7:00 AM CDT - Tue, 5/21 7:00 AM CDT
VFR
7:00 AM CDT - 9:00 AM CDT
Light Showers and Rain and Mist
Overcast 6,000'
6sm
090° 7kts
VFR
9:00 AM CDT - 2:00 PM CDT
Broken 4,000'
Scattered 1,400'
6sm
150° 5kts
VFR
2:00 PM CDT - 5:00 PM CDT
Broken 15,000'
Scattered 2,100'
6sm
200° 7kts
VFR
5:00 PM CDT - 7:00 PM CDT
Scattered 4,000'
6sm
280° 4kts
VFR
7:00 PM CDT - 12:00 AM CDT
Scattered 10,000'
6sm
010° 4kts
VFR
12:00 AM CDT - 7:00 AM CDT
Broken 7,000'
6sm
080° 4kts
KEAU 201152Z 2012/2112 09007KT 6SM -SHRA BR OVC060
   FM201400 15005KT P6SM SCT014 BKN040
   FM201900 20007KT P6SM SCT021 BKN150
   FM202200 28004KT P6SM SCT040
   FM210000 01004KT P6SM SCT100
   FM210500 08004KT P6SM BKN070
KLUM
Domestic
5/18/241841Z !LUM 05/006 LUM OBST TOWER LGT (ASR 1287138) 445935.20N0915142.80W (6.1NM NE LUM) 1197.2FT (254.9FT AGL) U/S 2405181841-2407021841
5/17/240402Z !LUM 05/005 LUM OBST TOWER LGT (ASR 1035148) 445739.00N0914001.00W (9.5NM ENE LUM) 1774.9FT (505.2FT AGL) U/S 2405170402-2405312359
4/14/240716Z !LUM 04/005 LUM OBST TOWER LGT (ASR 1264378) 443828.60N0915934.50W (16.0NM SSW LUM) 1069.6FT (269.7FT AGL) U/S 2404140716-2408120716
1/18/240000Z !LUM 01/007 LUM RWY 09 PAPI U/S 2401180000-PERM
FDC
5/6/241100Z !FDC 4/8816 LUM ODP MENOMONIE MUNI/SCORE FLD, MENOMONIE, WI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
ADD TAKEOFF OBSTACLE NOTE: RWY 9, TEMPORARY CONSTRUCTION EQUIPMENT BEGINNING 748FT FROM DER, ON CENTERLINE AND 200FT LEFT AND RIGHT OF CENTERLINE, UP TO 20FT AGL/914FT MSL (2024-AGL-3638 TO 3640-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2405061100-2411160145EST
No
MON-FRI 0800-1700
CITY OF MENOMONIE
800 WILSON AVE
MENOMONIE, WI 54751-2795
Phone: 715-232-2187
DARREL GIBSON
1400 INDIANHEAD DR.
MENOMONIE, WI 54751
Phone: (715) 220-6549
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
LUM
--
ACTVT REIL RWYS 09 & 27; PAPI RWYS 09, 18, 27, & 36; MIRL RWY 09/27 & 18/36 - CTAF. MIRL RWY 9/27 PRESET TO LOW SS-SR, TO INCR INTST - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
29
2
0
0
0
0
Major
Major
None
None
Avionics
Pilot Instruction
Aircraft Rental

Runway 09/27

5074 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 44° 53' 27"N 44° 53' 28"N
Longitude 91° 52' 37"W 91° 51' 26"W
Elevation 892' 893'
Threshold Crossing Height 48 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

3470 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 177°357°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 44° 53' 57"N 44° 53' 23"N
Longitude 91° 52' 09"W 91° 52' 06"W
Elevation 895' 893'
Threshold Crossing Height 43 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights No
A110-2SEASONAL BIRDS ON & INVOF ARPT.
A110-3FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-4NOISE SENSITIVE NBRHD W OF RWY 27.
MENOMONIE MUNI/SCORE FLD (ICAO: KLUM, IATA: LUM) is a public airport located in MENOMONIE, WI.
