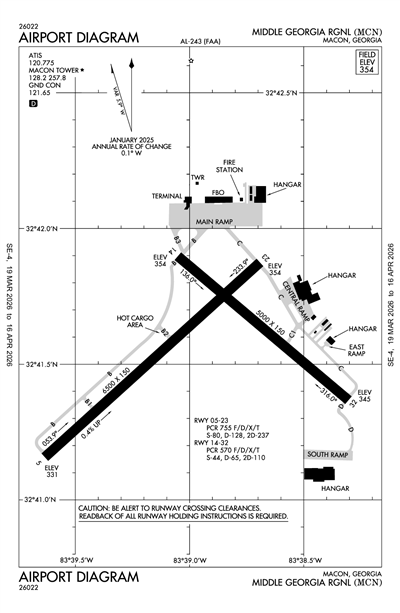

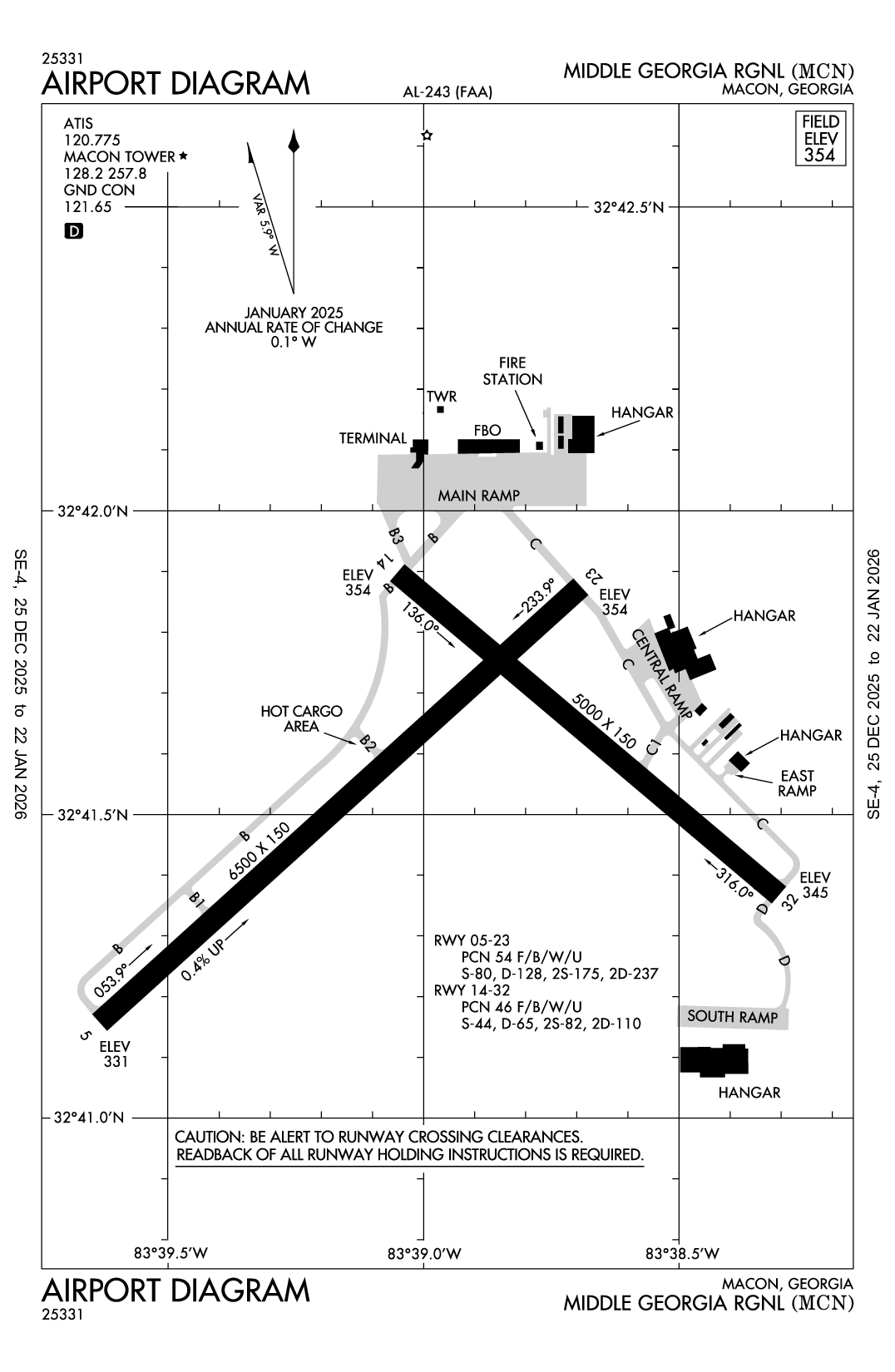

MIDDLE GEORGIA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCN
MIDDLE GEORGIA RGNL
PublicPUB

9 miles S of MACON, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 41' 34"N 83° 38' 57"W
354' MSL
1354' MSL
06W
Jet A, 100LL
MACON (MCN)
ATLANTA
ATLANTA (ZTL)
4/18/24-5/16/24
KMCN VFR
12:53 AM EDT
Broken 6,000'
10sm
69°F
63°F
29.96"Hg
110° 4kts
AO2 SLP141 T02060172 403110133
KMCN 030453Z AUTO 11004KT 10SM BKN060 21/17 A2996 RMK AO2 SLP141 T02060172 403110133
List Your Business

KMCN FBOs, Flight Schools and Ground Support

Promote Listing
HighNote Aviation
Freq: 122.95
Phone: (478) 310-4689
Fax: (478) 957-9100
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/30
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.62
Full Serve 6.12 5.84

KMCN Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMCN Hotels

No hotels are listed for this airport.

KMCN Restaurants

No restaurants are listed for this airport.

KMCN Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 128.2

ATIS

ATIS
 120.775

Emergency

EMERG
 121.5

Ground

GND/P
 121.65

Tower

LCL/P
 128.2

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMCN
Thu, 5/2 7:35 PM EDT
Thu, 5/2 8:00 PM EDT - Fri, 5/3 8:00 PM EDT
VFR
8:00 PM EDT - 4:00 AM EDT
Scattered 20,000'
Few 7,000'
6sm
120° 5kts
VFR
4:00 AM EDT - 11:00 AM EDT
Broken 20,000'
Scattered 7,000'
6sm
140° 5kts
VFR
11:00 AM EDT - 8:00 PM EDT
Broken 15,000'
Scattered 5,000'
6sm
190° 8kts
MVFR
2:00 PM EDT - 8:00 PM EDT
Light Thunderstorm and Rain and Mist
Overcast 2,500'
4sm
Calm
KMCN 022335Z 0300/0324 12005KT P6SM FEW070 SCT200
   FM030800 14005KT P6SM SCT070 BKN200
   FM031500 19008KT P6SM SCT050 BKN150
   PROB30 0318/0324 4SM -TSRA BR OVC025CB
KMCN
Domestic
5/7/241200Z !MCN 05/063 MCN TWY B BTN APCH END RWY 05 AND TWY B1 CLSD 2405071200-2405091200
5/7/241200Z !MCN 05/062 MCN RWY 05/23 NE 5000FT CLSD EXC TAX 2405071200-2405091200
5/7/241200Z !MCN 05/061 MCN RWY 05/23 SW 1501FT CLSD 2405071200-2405091200
5/3/241200Z !MCN 05/060 MCN TWY B BTN TWY B1 AND APCH END RWY 05 CLSD 2405031200-2405061200
5/3/241200Z !MCN 05/059 MCN RWY 05/23 SW 1501FT CLSD 2405031200-2405061200
5/3/241200Z !MCN 05/058 MCN RWY 05/23 NE 5000FT CLSD EXC TAX 2405031200-2405061200
5/2/240441Z !MCN 05/035 MCN OBST TOWER LGT (ASR 1254081) 324803.70N0834800.50W (9.9NM NW MCN) 754.9FT (255.9FT AGL) U/S 2405020441-2405170341
4/30/242127Z !MCN 04/929 MCN TWY B RWY LOCATION SIGN BTN TWY B2 AND TWY B1 LGT U/S 2404302127-2405311800
4/30/242126Z !MCN 04/928 MCN AD AP WINDCONE FOR RWY 32 OBST LGT U/S 2404302126-2406302359
4/30/242126Z !MCN 04/927 MCN OBST TOWER LGT (ASR UNKNOWN) 324116.00N0833805.00W (1NM SE MCN) 384FT (30FT AGL) U/S 2404302126-2406302359
4/30/242119Z !MCN 04/926 MCN TWY C HLDG PSN SIGN NORTH SIDE FOR APCH END RWY 23 LGT U/S 2404302119-2405311800
4/30/242113Z !MCN 04/925 MCN TWY C BTN RWY 05/23 AND RWY 14/32 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2404302113-2406302359
4/30/241818Z !MCN 04/922 MCN AD AP WINDCONE FOR RWY 32 LGT U/S 2404301818-2405301800
4/30/241814Z !MCN 04/921 MCN RWY 14/32 REDL NOT STD 2404301814-2405301800
4/30/241812Z !MCN 04/920 MCN TWY B2 HLDG PSN SIGN FOR RWY 05/23 LGT U/S 2404301812-2405301800
4/30/241811Z !MCN 04/919 MCN TWY B TWY DIRECTION SIGN FOR TWY B1 LGT U/S 2404301811-2405301800
4/30/241810Z !MCN 04/918 MCN RWY 23 RWY EXIT SIGN AT TWY B1 RIGHT SIDE LGT U/S 2404301810-2405301800
4/30/241809Z !MCN 04/917 MCN TWY B HLDG PSN SIGN FOR APCH END RWY 05 LGT U/S 2404301809-2405301800
4/30/241807Z !MCN 04/916 MCN TWY C HLDG PSN SIGN SOUTH SIDE FOR APCH END RWY 23 LGT U/S 2404301807-2405301800
4/30/240545Z !MCN 04/900 MCN OBST TOWER LGT (ASR 1216110) 323721.70N0833640.10W (4.6NM SSE MCN) 543.0FT (195.9FT AGL) U/S 2404300545-2405150400
4/29/241300Z !MCN 04/872 MCN RWY 23 RVR U/S 2404291300-2511032359EST
4/29/241300Z !MCN 04/870 MCN RWY 23 PAPI U/S 2404291300-2511032359EST
4/29/241300Z !MCN 04/869 MCN RWY 05 RVR U/S 2404291300-2511032359EST
4/29/241300Z !MCN 04/868 MCN RWY 05 ALS U/S 2404291300-2511032359EST
4/29/241300Z !MCN 04/867 MCN NAV ILS RWY 05 U/S 2404291300-2511032359EST
4/22/241030Z !MCN 04/697 MCN RWY 23 RWY END ID LGT U/S 2404221030-2502242359EST
4/10/241252Z !MCN 04/262 MCN OBST LGT (ASR 1326355) 325836.00N0823534.00W (10.5NM W 2J3) 611FT (270FT AGL) U/S 2404101252-2405102300
2/5/240225Z !MCN 02/120 MCN OBST TOWER LGT (ASR 1027782) 324200.20N0833221.00W (5.6NM E MCN) 640.1FT (315.0FT AGL) U/S 2402050225-2405040500
4/26/212318Z !MCN 04/614 MCN RWY 05 SAFETY AREA NOT STD NW SIDE 236FT WID 2104262318-PERM
1/5/211709Z !MCN 01/149 MCN RWY 14/32 CHANGED TO 5000FT X 100FT. 2101051709-PERM
FDC
6/29/230201Z !FDC 3/8400 MCN IAP MIDDLE GEORGIA RGNL, MACON, GA.
ILS RWY 05 (SA CAT I - II), AMDT 4 ...
PROCEDURE NA EXC FOR RDO ALTIMETER TOLERANT ACFT AND ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVE 2023-10-02 AND 5G C-BAND DOMESTIC NOTICES. 2306290201-2506290149EST
Yes
0500-2000
FOR SVC AFT HRS HIGHNOTE AVIATION - 478-957-9791.
MACON-BIBB COUNTY
CITY HALL
MACON, GA 31202
Phone: 478-788-3760
DOUGLAS FAOUR
1000 TERMINAL DR
MACON, GA 31297
Phone: 478-219-1145
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT MALSR RWY 05; REIL RWY 23 & 32; HIRL RWY 05/23; MIRL RWY 14/32 & TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
36
26
13
3
0
0
Major
Major
High & Low Pressure
None
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

6500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
54 /F/B/W/U
80,000lbs
128,000lbs
237,000lbs
--
  Runway 05 Runway 23
True Heading 48°228°
Traffic Pattern Left Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 32° 41' 10"N 32° 41' 53"N
Longitude 83° 39' 38"W 83° 38' 42"W
Elevation 331' 354'
Threshold Crossing Height -- 67 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 14/32

5000 ft. x 150 ft.
ASPH
Excellent
GRVD
MED
46 /F/B/W/U
44,000lbs
65,000lbs
110,000lbs
--
  Runway 14 Runway 32
True Heading 130°310°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 41' 54"N 32° 41' 22"N
Longitude 83° 39' 03"W 83° 38' 18"W
Elevation 354' 345'
Threshold Crossing Height 46 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes
A110-1ROBINS AFB CLASS D AIRSPACE .4 MI SE OF DEP END RY 14. VFR ACFT DEP RY 14 BTN 2000-0800 ARE ADVISED TO CTC ROBINS ATCT 133.22/320.1 PRIOR TO DEP.
A110-2DEER ON & INVOF ARPT.
A110-3PAEW ADJ TO THE MOVEMENT AREAS FROM MARCH 1 TO NOV 1 FOR GRASS CUTTING.
A110-4FOR CD IF UNA TO CTC ON FSS FREQ, CTC ATLANTA APCH AT 678-364-6132, WHEN ATCT CLSD CTC ATLANTA ARTCC AT 770-210-7692.
A110-5NO ACFT WITH WINGSPAN GTR THAN 118 FT MAY TAXI ON TWY C BTN RWY 23 AND RWY 32.
MIDDLE GEORGIA RGNL (ICAO: KMCN, IATA: MCN) is a public airport located in MACON, GA.
