iFlightPlanner



...

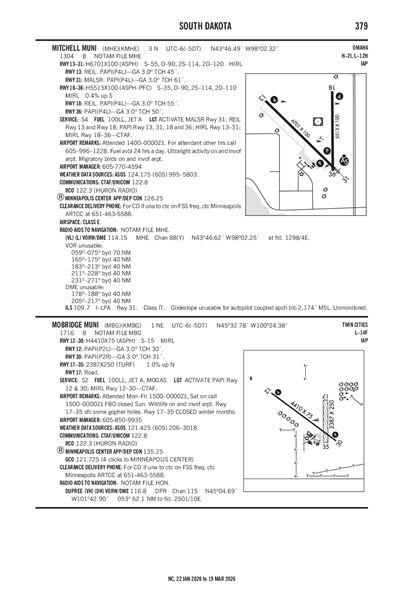

MITCHELL MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMHE
MITCHELL MUNI
PublicPUB

3 miles N of MITCHELL, SD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 46' 29"N 98° 02' 19"W
1304' MSL
2304' MSL
04E
Jet A, 100LL
HURON (HON)
OMAHA
MINNEAPOLIS (ZMP)
4/18/24-5/16/24
KHON (37nm) VFR
11:55 PM CDT
Overcast 6,000'
10sm
57°F
44°F
29.81"Hg
140° 11kts
Gusts 19kts
AO2 SLP091 T01390067
KHON 060455Z AUTO 14011G19KT 10SM OVC060 14/07 A2981 RMK AO2 SLP091 T01390067
List Your Business

KMHE FBOs, Flight Schools and Ground Support

Promote Listing
Wright Brothers Aviation
Freq: 122.8
Phone: (605) 996-1228
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.35 5.70 5.70

KMHE Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMHE Hotels

No hotels are listed for this airport.

KMHE Restaurants

No restaurants are listed for this airport.

KMHE Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
605-995-5803
 124.175

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHON (37nm)
Mon, 5/6 12:20 AM CDT
Mon, 5/6 1:00 AM CDT - Tue, 5/7 1:00 AM CDT
VFR
1:00 AM CDT - 6:00 AM CDT
Broken 25,000'
Scattered 5,000'
6sm
150° 17kts
Gusts 25kts
MVFR
6:00 AM CDT - 8:00 AM CDT
Broken 2,500'
6sm
140° 21kts
Gusts 35kts
MVFR
8:00 AM CDT - 12:00 PM CDT
Light Showers and Rain
Overcast 1,500'
Scattered 700'
6sm
140° 20kts
Gusts 27kts
IFR
Temporary 8:00 AM CDT - 12:00 PM CDT
Broken 700'
N/A
Calm
MVFR
12:00 PM CDT - 3:00 PM CDT
Overcast 1,500'
Scattered 700'
6sm
150° 25kts
Gusts 40kts
IFR
12:00 PM CDT - 3:00 PM CDT
Light Showers and Rain
Broken 700'
N/A
Calm
MVFR
3:00 PM CDT - 6:00 PM CDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 1,500'
6sm
150° 27kts
Gusts 40kts
MVFR
6:00 PM CDT - 9:00 PM CDT
Overcast 1,500'
6sm
150° 24kts
Gusts 32kts
VFR
9:00 PM CDT - 1:00 AM CDT
Overcast 5,000'
6sm
150° 12kts
Gusts 20kts
KHON 060520Z 0606/0706 15017G25KT P6SM SCT050 BKN250
   FM061100 14021G35KT P6SM BKN025
   FM061300 14020G27KT P6SM -SHRA SCT007 OVC015
   TEMPO 0613/0617 BKN007
   FM061700 15025G40KT P6SM SCT007 OVC015
   PROB30 0617/0620 -SHRA BKN007
   FM062000 15027G40KT P6SM -SHRA VCTS OVC015CB
   FM062300 15024G32KT P6SM OVC015
   FM070200 15012G20KT P6SM OVC050
KMHE
Domestic
5/5/242248Z !MHE 05/002 MHE OBST TOWER LGT (ASR 1219059) 434120.90N0975244.50W (8.6NM SE MHE) 1668.0FT (349.1FT AGL) U/S 2405052248-2406192245
5/2/240706Z !MHE 05/001 MHE OBST TOWER LGT (ASR 1048746) 434139.00N0980002.00W
(5.1NM SSE MHE) 1665FT (343FT AGL) U/S
2405020706-2406032359
4/22/241155Z !MHE 04/017 MHE RWY 36 PAPI U/S 2404221155-2405302359
FDC
4/9/241213Z !FDC 4/8333 MHE IAP MITCHELL MUNI, MITCHELL, SD.
VOR RWY 13, AMDT 11A...
MINIMUM ALTITUDE AT GEBEL 1760 (1860 WITH HURON RGNL ALTIMETER SETTING).
S-13 ALL CATS MDA 1760/HAT 459, VIS CAT C/D 1 3/8. CIRCLING CAT A MDA 1760/ HAA 456.
CHANGE MISSED APPROACH TO READ CLIMB TO 2900 THEN CLIMBING LEFT TURN TO 3100 DIRECT MHE VORDME AND HOLD, CONTINUE CLIMB-IN-HOLD TO 3100..
2404091213-2604091213EST
4/4/241118Z !FDC 4/6716 MHE IAP MITCHELL MUNI, MITCHELL, SD.
RNAV (GPS) RWY 13, ORIG-A...
LNAV MDA 1660/HAT 359.
2404041118-2604041118EST
No
0800-1800
FOR ATTENDANT OTHER HRS CALL 605-996-1228.
CITY OF MITCHELL
612 N MAIN ST.
MITCHELL, SD 57301
Phone: 605-995-8420
MIKE SCHERSCHLIGT
621 WEST 5TH
MITCHELL, SD 57301
Phone: 605-770-4594
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
MHE
--
ACTVT MALSR RWY 31, REIL RWY 13 & 18, PAPI RWY 13, 31, 18 & 36 , HIRL RWY 13/31; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
24
3
2
2
0
0
Major
Major
None
None
Air Freight
Crop Dusting
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

6701 ft. x 100 ft.
ASPH
Good
NONE
HIGH

55,000lbs
90,000lbs
120,000lbs
--
  Runway 13 Runway 31
True Heading 134°314°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 43° 46' 51"N 43° 46' 05"N
Longitude 98° 03' 05"W 98° 02' 00"W
Elevation 1,296' 1,304'
Threshold Crossing Height 45 ft. AGL 61 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes

Runway 18/36

5513 ft. x 100 ft.
ASPH
Fair
PFC
MED

35,000lbs
90,000lbs
110,000lbs
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 43° 46' 58"N 43° 46' 03"N
Longitude 98° 02' 03"W 98° 02' 02"W
Elevation 1,283' 1,303'
Threshold Crossing Height 55 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1MIGRATORY BIRDS ON & INVOF ARPT.
A110-2ULTRALGT ACTVT ON & INVOF ARPT.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
MITCHELL MUNI (ICAO: KMHE, IATA: MHE) is a public airport located in MITCHELL, SD.
