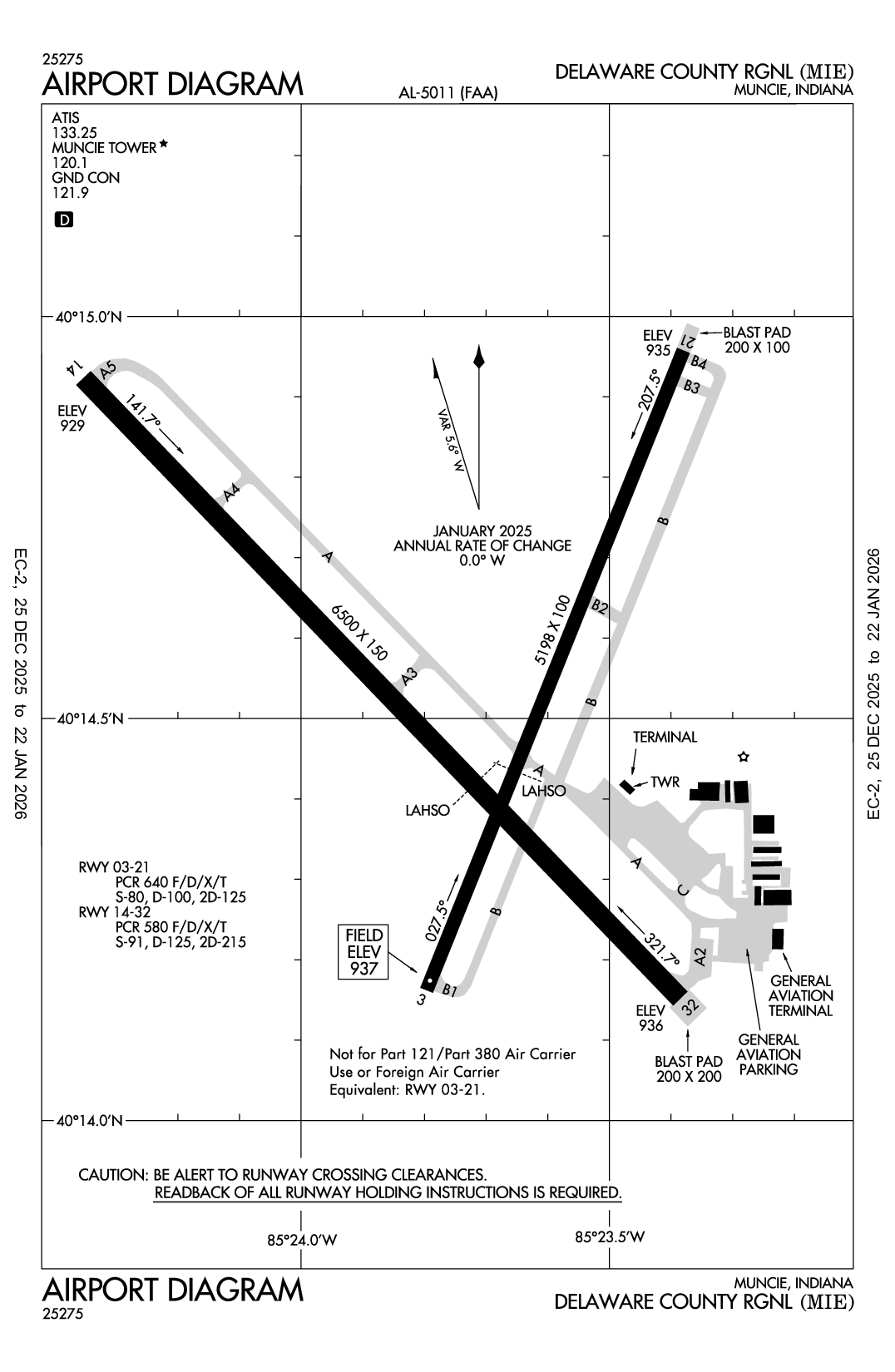

DELAWARE COUNTY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMIE
DELAWARE COUNTY RGNL
PublicPUB

3 miles NW of MUNCIE, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 14' 33"N 85° 23' 45"W
937' MSL
1937' MSL
03W
Jet A, 100LL
TERRE HAUTE (HUF)
CHICAGO
INDIANAPOLIS (ZID)
4/18/24-5/16/24
KMIE VFR
11:53 PM EDT
Few 4,600'
10sm
60°F
51°F
30.04"Hg
040° 5kts
AO2 SLP165 T01560106
KMIE 060353Z AUTO 04005KT 10SM FEW046 16/11 A3004 RMK AO2 SLP165 T01560106
List Your Business

KMIE FBOs, Flight Schools and Ground Support

Promote Listing
Muncie Aviation Company
Freq: 122.95
Phone: (765) 254-8004
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/4
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.07 6.75

KMIE Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMIE Hotels

No hotels are listed for this airport.

KMIE Restaurants

No restaurants are listed for this airport.

KMIE Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.1

ATIS

ATIS
 133.25

ASOS

ASOS
765-288-9617
 114.4

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 120.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGUS (43nm)
Sun, 5/5 5:00 PM EDT
Sun, 5/5 5:00 PM EDT - Mon, 5/6 11:00 PM EDT
VFR
5:00 PM EDT - 8:00 PM EDT
Scattered 4,000'
6sm
30.00"Hg
VRB° 6kts
VFR
Becoming 8:00 PM EDT - 11:00 AM EDT
Few 6,000'
6sm
29.97"Hg
VRB° 6kts
VFR
Becoming 11:00 AM EDT - 7:00 PM EDT
Scattered 5,000'
6sm
29.82"Hg
330° 10kts
Gusts 15kts
MVFR
Becoming 7:00 PM EDT - 11:00 PM EDT
Showers in vicinity
Broken 3,000'
6sm
29.82"Hg
VRB° 6kts
TAF KGUS 052100Z 0521/0703 VRB06KT 9999 SCT040 QNH3001INS
   BECMG 0600/0601 VRB06KT 9999 FEW060 QNH2997INS
   BECMG 0615/0616 33010G15KT 9999 SCT050 QNH2982INS
   BECMG 0623/0624 VRB06KT 9999 VCSH BKN030 QNH2982INS TX23/0621Z TN11/0609Z LAST NO AMDS AFT 0603 NEXT 0613
KMIE
Domestic
4/26/240221Z !MIE 04/017 MIE OBST TOWER LGT (ASR 1028779) 402704.10N0852133.80W (12.7NM NE MIE) 1203.1FT (293.0FT AGL) U/S 2404260221-2405252359
2/20/242222Z !MIE 02/022 MIE OBST TOWER LGT (ASR 1030894) 402516.00N0852540.00W (10.8NM N MIE) 1347.8FT (439.0FT AGL) U/S 2402202222-2405202359
2/15/241637Z !MIE 02/004 MIE OBST TWR LGT (ASN 2019-WTE-6859-OE) 401923N0851039W (11.1NM ENE MIE) 1260FT (299 FT AGL) U/S 2402151637-2405312359
FDC
4/29/241326Z !FDC 4/6091 MIE IAP DELAWARE COUNTY RGNL, MUNCIE, IN.
ILS OR LOC RWY 32, AMDT 9E...
VOR RWY 14, AMDT 17B...
VOR RWY 21, AMDT 14A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MIE VOR/DME UNMONITORED. 2404291326-2407101326EST
4/13/231804Z !FDC 3/1566 MIE IAP DELAWARE COUNTY RGNL, MUNCIE, IN.
VOR RWY 21, AMDT 14A...
DUNKI FIX MINIMUMS (DUAL VOR RECEIVERS OR DME REQUIRED) CIRCLING CAT C MDA 1500/HAA 563.
2304131804-2504301800EST
4/13/231804Z !FDC 3/1565 MIE IAP DELAWARE COUNTY RGNL, MUNCIE, IN.
VOR RWY 14, AMDT 17B...
CIRCLING CAT C MDA 1500/HAA 563. BOHUW FIX MINIMUMS CIRCLING CAT C MDA 1500/HAA 563.
2304131804-2504301800EST
4/13/231804Z !FDC 3/1564 MIE IAP DELAWARE COUNTY RGNL, MUNCIE, IN.
RNAV (GPS) RWY 14, ORIG-C...
RNAV (GPS) RWY 32, ORIG-B...
CIRCLING CAT C MDA 1500/HAA 563.
2304131804-2504301800EST
3/1/231416Z !FDC 3/1422 MIE IAP DELAWARE COUNTY RGNL, MUNCIE, IN.
ILS OR LOC RWY 32, AMDT 9E...
FORT WAYNE ALTIMETER SETTING MINIMUMS:
S-ILS 32 DA 1258/HAT 321 ALL CATS, VISIBILITY ALL CATS 5/8 SM.
CIRCLING CAT A/B MDA 1600/HAA 663, VISIBILITY 1 SM, CAT C MDA 1640/HAA 703, VISIBILITY 2, CAT D MDA 1740/HAA 803, VISIBILITY 2 1/2 SM.
CHANGE CHART NOTE TO READ: FOR INOPERATIVE MALSR WHEN USING FORT WAYNE ALTIMETER SETTING MINIMUMS, INCREASE S-ILS 32 VISIBILITY ALL CATS TO 1 SM AND INCREASE S-LOC 32 CAT C TO 1 3/4 SM.
CHANGE CHART NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE FORT WAYNE ALTIMETER SETTING AND INCREASE ALL DA 121 FEET AND ALL MDAS 140 FEET.
ADD CHART NOTE: FOR ALS INOP, INCREASE S-LOC 32 VISIBILITY CATS A/B TO 1 SM, CAT C VISIBILITY TO 1 3/8 SM.
2303011416-2503011416EST
Yes
0600-2200
DELAWARE COUNTY ARPT AUTH
311 W. CARL SIMMONS RD.
MUNCIE, IN 47303
Phone: 765-747-5690
TIM BATY
311 W. CARL SIMMONS RD.
MUNCIE, IN 47303
Phone: 765-747-5690
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
MIE
--
ACTVT MALSR RWY 32; REIL RWY 3, 14 & 21; PAPI RWY 14 & 21; MIRL RWY 3/21; HIRL RWY 14/32 - CTAF. REIL RWY 3, 14 & 21 HIGH INTSTY ONLY. PAPI RWY 3 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
18
0
3
0
0
0
Minor
Minor
High Pressure
High Pressure
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

5198 ft. x 100 ft.
ASPH
Fair
GRVD
MED
32 /F/C/X/T
80,000lbs
100,000lbs
125,000lbs
--
  Runway 03 Runway 21
True Heading 22°202°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 14' 10"N 40° 14' 58"N
Longitude 85° 23' 48"W 85° 23' 23"W
Elevation 937' 935'
Threshold Crossing Height 39 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 14/32

6500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
36 /F/C/W/T
91,000lbs
125,000lbs
215,000lbs
--
  Runway 14 Runway 32
True Heading 136°316°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 40° 14' 55"N 40° 14' 09"N
Longitude 85° 24' 21"W 85° 23' 23"W
Elevation 929' 936'
Threshold Crossing Height 49 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1DEER ON & INVOF ARPT.
A110-2SVC AFT HR - 765-729-1078.
A110-3WHEN ATCT IS CLSD FOR CD CTC INDIANAPOLIS APCH AT 317-227-5743.
A110-4SFC COND UNMNT MON-FRI 1500-0700 & WKEND.
DELAWARE COUNTY RGNL (ICAO: KMIE, IATA: MIE) is a public airport located in MUNCIE, IN.
