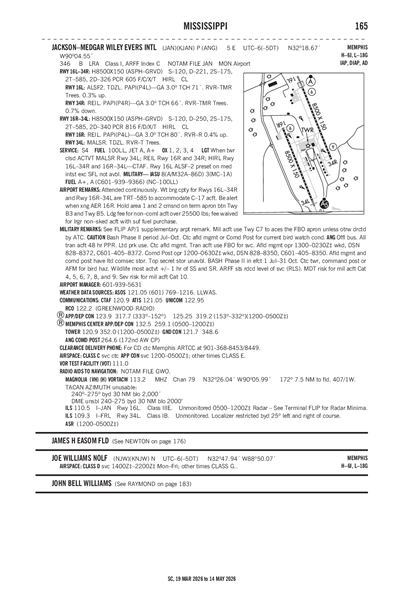

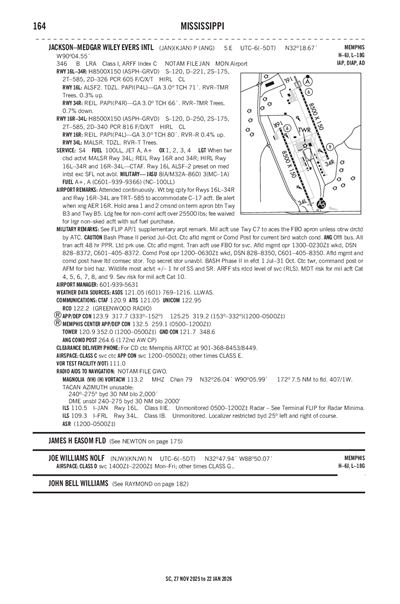

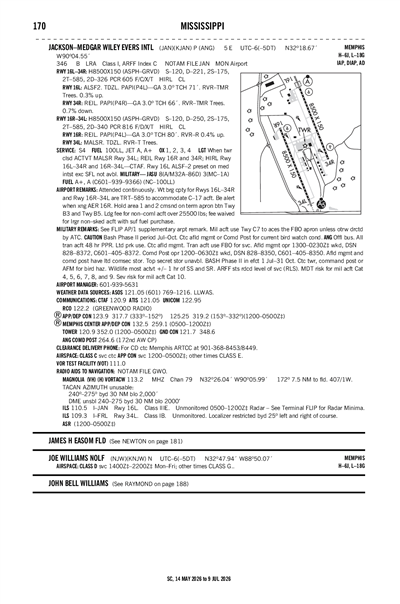

JOE WILLIAMS NOLF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNJW
JOE WILLIAMS NOLF
PrivatePVT

View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 47' 56"N 88° 50' 04"W
539' MSL
1539' MSL
01W
Jet A+, CILI
GREENWOOD (GWO)
MEMPHIS
MEMPHIS (ZME)
5/16/24-6/13/24
KNJW VFR
5:57 AM CDT
Clear
10sm
63°F
59°F
29.96"Hg
Calm
AO2 SLP060 T01720150 $
KNJW 201057Z AUTO 00000KT 10SM CLR 17/15 A2996 RMK AO2 SLP060 T01720150 $
List Your Business

KNJW FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KNJW Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KNJW Hotels

No hotels are listed for this airport.

KNJW Restaurants

No restaurants are listed for this airport.

KNJW Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Emergency

EMERG
 121.5

Tower

LCL/P
 118.475

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KNMM (21nm)
Mon, 5/20 2:13 AM CDT
Mon, 5/20 2:00 AM CDT - Tue, 5/21 2:00 AM CDT
VFR
2:00 AM CDT - 9:00 AM CDT
Few 3,000'
6sm
29.88"Hg
VRB° 6kts
VFR
9:00 AM CDT - 8:00 PM CDT
Scattered 3,000'
Few 1,500'
6sm
29.94"Hg
VRB° 6kts
VFR
8:00 PM CDT - 2:00 AM CDT
Few 4,000'
6sm
29.91"Hg
VRB° 6kts
TAF KNMM 2007/2107 VRB06KT 9999 FEW030 QNH2988INS
   FM201400 VRB06KT 9999 FEW015 SCT030 QNH2994INS
   FM210100 VRB06KT 9999 FEW040 QNH2990INS AUTOMATED SENSOR METWATCH 2007 TIL 2009 TX31/2020Z TN20/2010Z FN00273
KNJW
No NOTAM Available
Yes
MON-FRI 0800-1600
FOR OTHER HOURS OF OPERATION CTC MERIDIAN NAS BASE OPERATIONS.
US NAVY
COMTRAWING 1
NAS MERIDIAN, MS 39309
N/A
GREENWOOD FSS (GWO)
Toll Free: 1-800-WX-BRIEF
NMM
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 14/32

8000 ft. x 150 ft.
ASPH
CONC
NONE
MED
26 /R/C/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 134°314°
Traffic Pattern
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude 32° 48' 24"N 32° 47' 29"N
Longitude 88° 50' 38"W 88° 49' 31"W
Elevation 517' 539'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1INTENSIVE LOCAL JET TRAFFIC TO 5000' WITHIN THE TRANSITION AREA.
A110-2NO TRANSIENT MAINTENANCE OR SERVICE AVAILABLE.
A110-3USN ELECTRIC OR AIR TYPE JET ACFT STARTING UNITS AVAILABLE.
A110-5RADAR SFA 134.1X, RADAR SFA 266.8X, RADAR SFA 300.4X, RADAR SFA 310.8X, RADAR SFA 322.0X, RADAR SFA 325.2X, RADAR SFA 328.4X, RADAR SFA 346.0X, RADAR SFA 363.6X.
A110-6FOR CD CTC MERIDIAN APCH 601-679-3691, WHEN MERIDIAN APCH CLSD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
JOE WILLIAMS NOLF (ICAO: KNJW, IATA: NJW) is a private airport located in MERIDIAN, MS.
