iFlightPlanner



...

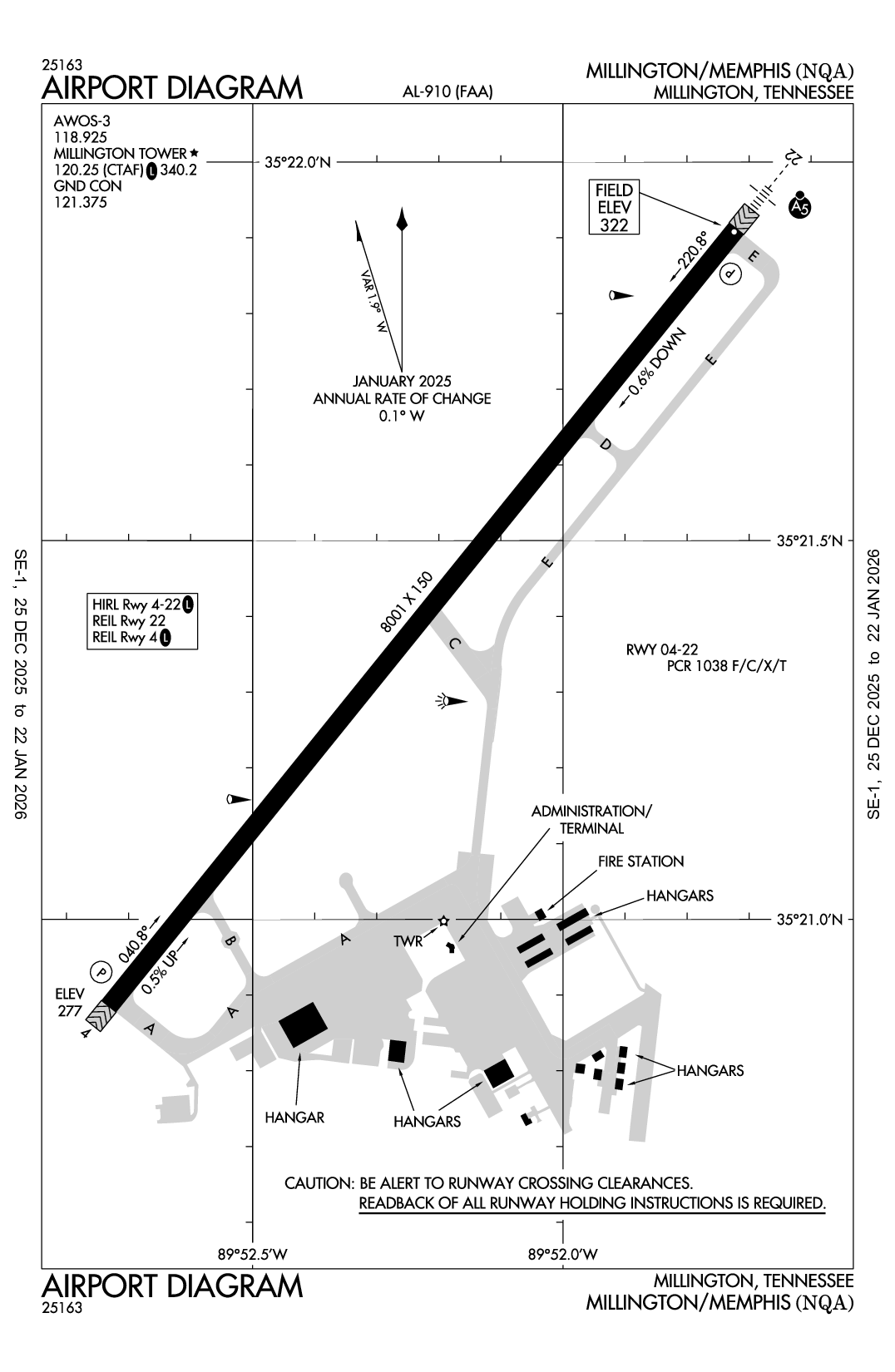

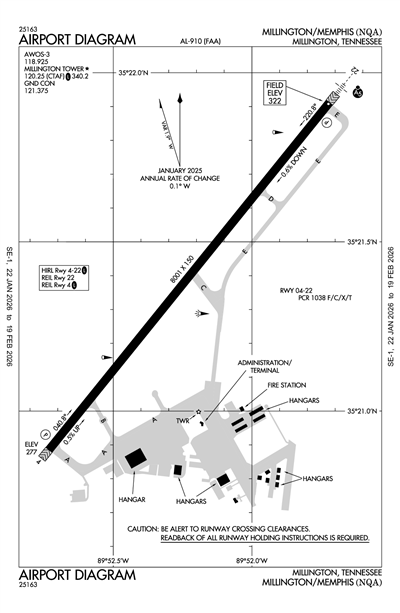

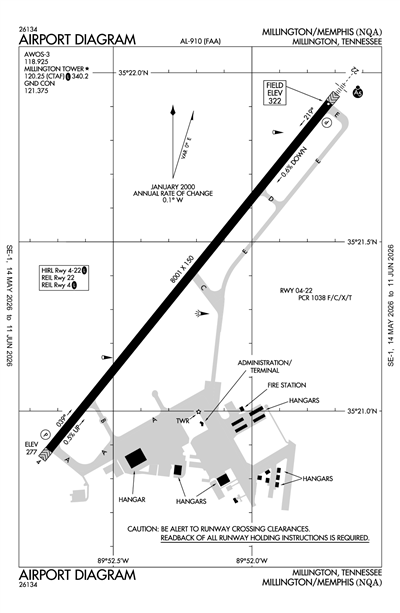

MILLINGTON/MEMPHIS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KNQA
MILLINGTON/MEMPHIS
PublicPUB

1 miles NE of MILLINGTON, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 21' 24"N 89° 52' 14"W
322' MSL
1322' MSL
00E
Jet A+, 100LL
JACKSON (MKL)
MEMPHIS
MEMPHIS (ZME)
4/18/24-5/16/24
KNQA MVFR
9:50 AM CDT
Overcast 1,600'
10sm
70°F
66°F
29.94"Hg
VRB° 4kts
Gusts 11kts
KNQA 291450Z VRB04G11KT 10SM OVC016 21/19 A2994
List Your Business

KNQA FBOs, Flight Schools and Ground Support

CTI Aviation Services
Freq: 122.95
Phone: (901) 495-2583
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/9
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 5.10 4.50
Promote Listing
Tulsair Beechcraft
Freq: 122.95
Phone: (901) 873-4780
Other: (901) 873-4144
No Rating Available
0 Reviews (Read | Sign In To Write)

KNQA Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KNQA Hotels

No hotels are listed for this airport.

KNQA Restaurants

No restaurants are listed for this airport.

KNQA Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.25

AWOS-3

AWOS-3
901-873-3630
 118.925

Ground

GND/P
 121.375

Tower

LCL/P
 120.25

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMEM (19nm)
Mon, 4/29 6:39 AM CDT
Mon, 4/29 7:00 AM CDT - Tue, 4/30 1:00 PM CDT
MVFR
7:00 AM CDT - 3:00 PM CDT
Light Showers and Rain
Broken 2,500'
6sm
180° 10kts
Gusts 17kts
VFR
3:00 PM CDT - 8:00 PM CDT
Light Showers and Rain
Broken 3,500'
6sm
190° 11kts
Gusts 18kts
MVFR
4:00 PM CDT - 8:00 PM CDT
Light Thunderstorm and Rain
Broken 2,500'
4sm
Calm
MVFR
8:00 PM CDT - 10:00 PM CDT
Light Showers and Rain
Overcast 1,800'
6sm
360° 5kts
IFR
10:00 PM CDT - 1:00 AM CDT
Light Rain and Mist
Overcast 1,500'
Broken 800'
5sm
VRB° 3kts
MVFR
1:00 AM CDT - 10:00 AM CDT
Broken 2,200'
Scattered 1,000'
6sm
340° 4kts
VFR
10:00 AM CDT - 1:00 PM CDT
Scattered 3,500'
6sm
020° 4kts
KMEM 291139Z 2912/3018 18010G17KT P6SM -SHRA BKN025
   FM292000 19011G18KT 6SM -SHRA BKN035
   PROB30 2921/3001 4SM -TSRA BKN025CB
   FM300100 36005KT 6SM -SHRA OVC018
   FM300300 VRB03KT 5SM -RA BR BKN008 OVC015
   FM300600 34004KT P6SM SCT010 BKN022
   FM301500 02004KT P6SM SCT035
KNQA
Domestic
4/28/241241Z !NQA 04/020 NQA TWY D, C, E CLSD 2404281241-2404302100
4/14/240351Z !NQA 04/012 NQA OBST TOWER LGT (ASR 1057943) 351633.00N0894638.00W (6.6NM SE NQA) 1448.8FT (1198.8FT AGL) U/S 2404140351-2405290351
4/5/241617Z !NQA 04/006 NQA COM TWR 340.2 U/S 2404051617-2406032100
3/28/241529Z !NQA 03/008 NQA OBST TOWER LGT (ASR 1054049) 352458.00N0895242.00W (3.6NM N NQA) 659.8FT (284.8FT AGL) U/S 2403281529-2405121527
2/11/240710Z !NQA 02/003 NQA OBST TOWER LGT (ASR 1226839) 352036.20N0893630.30W (12.9NM E NQA) 672.9FT (315.0FT AGL) U/S 2402110710-2405110500
1/29/242100Z !NQA 01/023 NQA AD AP ABN U/S 2401292100-2406011800
FDC
3/18/241222Z !FDC 4/8220 NQA IAP MILLINGTON/MEMPHIS, MILLINGTON, TN.
RNAV (GPS) RWY 4, AMDT 1B...
CIRCLING CAT A HAA 478, CAT B HAA 498, CAT C HAA 598, CATS D/E HAA 638.
2403181222-2603181222EST
1/16/241707Z !FDC 4/4041 NQA IAP MILLINGTON/MEMPHIS, MILLINGTON, TN.
VOR OR TACAN RWY 22, AMDT 3A...
APT ELEV: 322.
TDZE: 322.
S-22 HAT 558 ALL CATS.
CIRCLING CAT A/B HAA 558, CAT C HAA 598, CAT D/E HAA 638.
2401161707-2601161707EST
Yes
MON-FRI 0730-0200
SAT-SUN 0700-1900
SVC AFT HR - 901-873-4359.
MILLINGTON ARPT AUTH
8182 HORNET AVE
MILLINGTON, TN 38053
Phone: 901-872-7495
MR. MIKE GILL
8182 HORNET AVE
MILLINGTON, TN 38053
Phone: 901-872-7495
JACKSON FSS (MKL)
Toll Free: 1-800-WX-BRIEF
NQA
--
ACTVT MALSR RWY 22; REIL RWY 04; HIRL RWY 04/22 - CTAF. HIRL RWY 04/22 PRESET LOW INTST; INCR INTST - CTAF. PAPI RWY 04 & 22 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
52
7
1
4
0
0
Major
Major
Low Pressure
None
Avionics

Runway 04/22

8000 ft. x 200 ft.
ASPH
Good
NONE
HIGH
56 /F/C/W/T
--
--
--
--
  Runway 04 Runway 22
True Heading 39°219°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 20' 53"N 35° 21' 55"N
Longitude 89° 52' 44"W 89° 51' 43"W
Elevation 277' 322'
Threshold Crossing Height 77 ft. AGL 67 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No
A110-3CAT C AFLD.
A110-4TWY B CLSD TO ACR.
A110-6FOR CD WHEN ATCT IS CLSD CTC MEM APCH AT 901-842-8457.
MILLINGTON/MEMPHIS (ICAO: KNQA, IATA: NQA) is a public airport located in MILLINGTON, TN.
