KSAT - SAN ANTONIO INTL

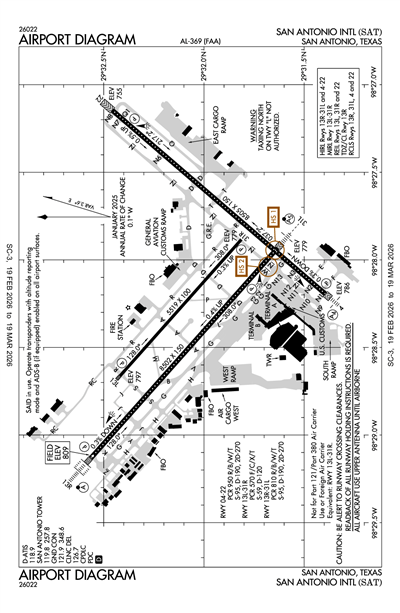

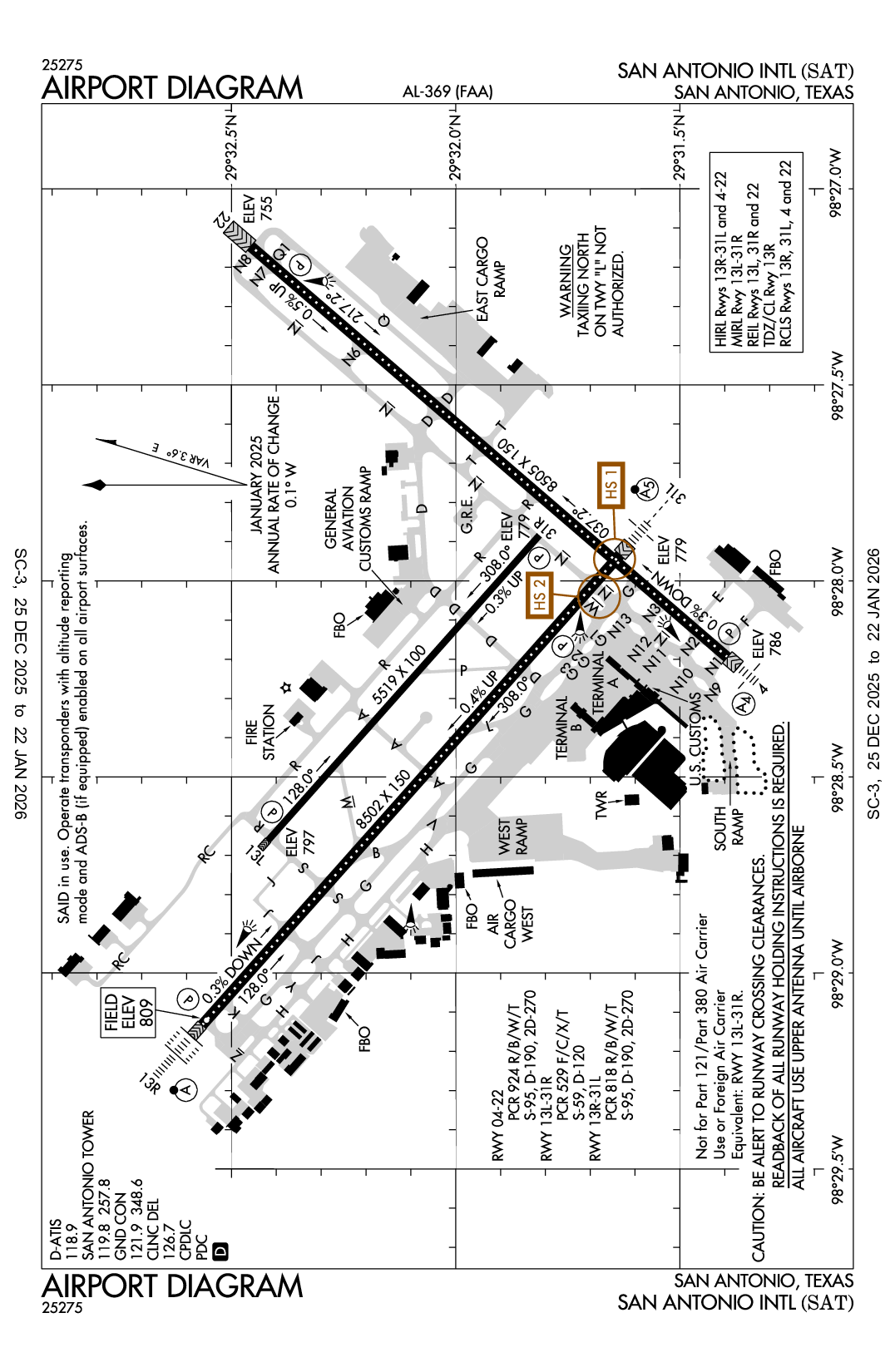

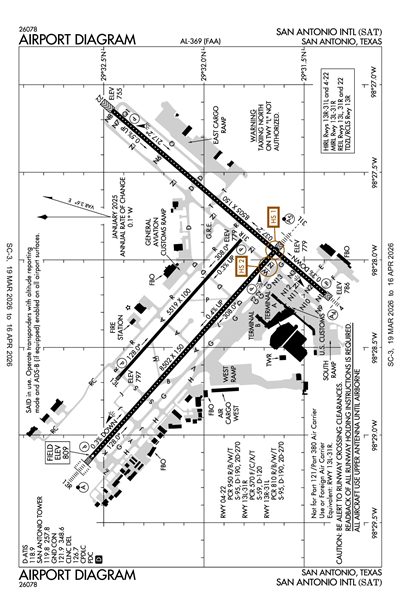

SAN ANTONIO INTL - Airport Diagram
SAN ANTONIO, TEXAS
7 miles N
29° 32' 02"N
98° 28' 09"W
809' MSL
1809' MSL
08 E 1980
ZHU - HOUSTON
SAN ANTONIO
1/5/17-3/2/17
ALL
Weather
Collapse TabsCollapse Tabs
METAR - Current Conditions
MVFR
KSAT @ 2:51 Z
Overcast 2,500'
Broken 2,000'
Broken 1,300'
10sm
23 / 19 °C
73 / 67 °F
100° 9kt
29.78" Hg
RMK: AO2 SLP069 T02280194 56002 $
TAF - Forecast
KSAT @ 2:53 Z
Valid
Mon, Feb 20, 03:00 Z - Tue, Feb 21, 06:00 Z
MVFR
3:00 - 4:00 Z
Showers in vicinity
Broken 5,000'
Broken 1,500'
> 6sm
130° 12kt
MVFR
4:00 - 8:00 Z
Thunderstorm, Rain, Mist
Broken 1,500'
5sm
150° 7kt
IFR
Temporary 4:00 - 8:00 Z
Thunderstorm, Rain
Overcast 1,000'
1sm
15kt Gusts 25kt
MVFR
8:00 - 12:00 Z
Light Showers, Rain
Overcast 2,500'
> 6sm
110° 5kt
VFR
12:00 - 14:00 Z
Showers in vicinity
Overcast 4,000'
Scattered 2,500'
> 6sm
320° 8kt
VFR
14:00 - 22:00 Z
Overcast 10,000'
Broken 5,000'
> 6sm
360° 6kt
VFR
22:00 - 6:00 Z
Broken 20,000'
Scattered 10,000'
> 6sm
5kt
NOTAMs
Collapse TabsCollapse Tabs
KSAT NOTAMs
Domestic
2/19/170434Z !SAT 02/051 SAT TWY R NO ENTRY SIGN NORTH SIDE NOT LGTD 1702190434-1702201600
2/17/172235Z !SAT 02/050 SAT TWY A CLSD TO ACFT WINGSPAN MORE THAN 99FT 1702172235-1703032300
2/17/171400Z !SAT 02/049 SAT TWY D BTN RWY 12L/30R AND TWY G CLSD 1702171400-1702281300
2/16/171600Z !SAT 02/047 SAT RWY 12L/30R CLSD 1702161600-1703022300
2/15/172340Z !SAT 02/045 SAT TWY G BTN TWY L AND TWY A CLSD TO ACFT WINGSPAN MORE THAN 118FT 1702152340-1702242300
2/15/171330Z !SAT 02/046 SAT TWY P CLSD 1702151330-1702242300
2/14/171057Z !SAT 02/041 SAT OBST TOWER LGT (ASR 1022082) 292946.00N0982456.00W (3.6NM SE SAT) 1096.1FT (410.1FT AGL) OUT OF SERVICE 1702141057-1703011057
2/14/170212Z !SAT 02/040 SAT OBST TOWER LGT (ASR 1044170) 292612.00N0982902.00W (5.8NM S SAT) 1201.1FT (554.1FT AGL) OUT OF SERVICE 1702140212-1703160212
2/13/171026Z !SAT 02/036 SAT OBST TOWER LGT (ASR 1000314) 293137.00N0982830.00W (0.5NM SW SAT) 902.9FT (107.9FT AGL) OUT OF SERVICE 1702131026-1702281026
2/13/170429Z !SAT 02/035 SAT OBST TOWER LGT (ASR 1051741) 292657.00N0981832.00W (9.8NM ESE SAT) 1024.9FT (367.1FT AGL) OUT OF SERVICE 1702130429-1702280429
2/13/170349Z !SAT 02/034 SAT OBST TOWER LGT (ASR 1051742) 292703.00N0981833.00W (9.8NM ESE SAT) 1028.2FT (370.4FT AGL) OUT OF SERVICE 1702130349-1702280349
2/12/172147Z !SAT 02/033 SAT OBST TOWER LGT (ASR 1051744) 292655.00N0981835.00W (9.8NM ESE SAT) 1029.2FT (371.4FT AGL) OUT OF SERVICE 1702122147-1702272147
2/11/171509Z !SAT 02/032 SAT OBST TOWER LGT (ASR 1051743) 292701.00N0981836.00W (9.7NM ESE SAT) 1025.9FT (368.1FT AGL) OUT OF SERVICE 1702111509-1702261509
2/10/171345Z !SAT 02/031 SAT TWY G CL LGT OUT OF SERVICE 1702101345-1704042300
2/10/171257Z !SAT 02/030 SAT APRON TAXILANE NORTH INNER RAMP CLSD TO ACFT WINGSPAN MORE THAN 135FT 1702101257-1704042300
2/8/170043Z !SAT 02/020 SAT OBST TOWER LGT (ASR 1052366) 293147.00N0982142.00W (5.7NM E SAT) 1180.1FT (270.0FT AGL) OUT OF SERVICE 1702080043-1702230043
1/19/172035Z !SAT 01/063 SAT TWY N1 CLSD 1701192035-1703162200
1/19/172033Z !SAT 01/064 SAT RWY 04/22 HLDG PSN SIGN NW SIDE FOR RWY 12R/30L NOT LGTD 1701192033-1703162300
1/5/172039Z !SAT 01/027 SAT AD AP WINDCONE FOR RWY 30L LEFT SIDE LGT OUT OF SERVICE
1701052039-1704031500
1/5/172039Z !SAT 01/026 SAT AD AP WINDCONE FOR RWY 12R LEFT SIDE LGT OUT OF SERVICE
1701052039-1704031500
1/5/172016Z !SAT 01/024 SAT TWY B BTN RWY 12R/30L AND TWY G CLSD 1701052016-1704031500
1/5/172007Z !SAT 01/023 SAT TWY M CLSD 1701052007-1704031500
1/4/171511Z !SAT 01/021 SAT RWY 04 DECLARED DIST: TORA 8505FT TODA FROM INT TWY N2 8055FT. 1701041511-1704041800
1/4/171508Z !SAT 01/020 SAT RWY 04 DECLARED DIST: TORA 8505FT TODA FROM INT TWY N3 7400FT. 1701041508-1704041800
1/4/171457Z !SAT 01/019 SAT TWY L CLSD 1701041457-1704041800
1/4/171400Z !SAT 01/017 SAT TWY G BTN TWY W AND RWY 04/22 CLSD 1701041400-1704031400
1/4/171400Z !SAT 01/016 SAT TWY N BTN TWY G AND RWY 12R/30L CLSD 1701041400-1704031445
1/3/172130Z !SAT 01/014 SAT TWY G BTN TWY S AND TWY K CLSD 1701032130-1704031445
1/3/171540Z !SAT 01/010 SAT TWY J BTN TWY S AND RWY 12R/30L CLSD 1701031540-1704031445
1/3/171539Z !SAT 01/009 SAT TWY J BTN TWY G AND RWY 12R/30L CLSD 1701031539-1704031445
1/3/171500Z !SAT 12/094 SAT RWY 12R/30L CLSD 1701031500-1704031500
1/3/171500Z !SAT 01/006 SAT RWY 30L PAPI OUT OF SERVICE 1701031500-1704071800EST
1/3/171400Z !SAT 12/092 SAT RWY 12R PAPI OUT OF SERVICE 1701031400-1704071400
1/3/171400Z !SAT 12/091 SAT RWY 30L ALS OUT OF SERVICE 1701031400-1704071400
1/3/171400Z !SAT 12/090 SAT RWY 12R ALS OUT OF SERVICE 1701031400-1704071400
1/3/171400Z !SAT 12/089 SAT NAV ILS RWY 12R OUT OF SERVICE 1701031400-1704072000
1/3/171400Z !SAT 12/088 SAT NAV ILS RWY 30L OUT OF SERVICE 1701031400-1704072000
12/1/161859Z !SAT 12/003 SAT TWY S BTN APCH END RWY 12L AND RWY 12R/30L CLSD TO ACFT WINGSPAN MORE THAN 135FT 1612011859-PERM
12/1/161855Z !SAT 12/002 SAT TWY R BTN APCH END RWY 12L AND TWY D CLSD TO ACFT WINGSPAN MORE THAN 135FT 1612011855-PERM
11/17/161851Z !SAT 11/036 SAT NAV ILS RWY 12R CAT II NA 1611171851-1706301800
2/15/162120Z !SAT 02/073 SAT APRON EAST CARGO RAMP INT OF RWY 04/22
AND TWY D AIRCRAFT ARE REQUESTED TO APPLY THE MINIMUM THRUST
WHEN CROSSING THE RWY TO AVOID DAMAGE DUE TO JET BLAST
1602152120-PERM
FDC
1/23/171810Z !FDC 7/6806 SAT STAR SAN ANTONIO INTERNATIONAL, SAN ANTONIO, TX.
CENTERPOINT ONE ARRIVAL... REVISE SAT LOCALIZER LABEL RWY 3 TO READ:
RWY 4. 1701231810-1703020901
1/23/171805Z !FDC 7/6805 SAT STAR SAN ANTONIO INTERNATIONAL, SAN ANTONIO, TX.
MARCS NINE ARRIVAL... REVISE SAT LOCALIZER LABEL RWY 3 TO READ: RWY
4.
1701231805-1703020901
1/23/171805Z !FDC 7/6803 SAT STAR SAN ANTONIO INTL, SAN ANTONIO, TX, MARCS NINE
ARRIVAL... REMOVE NOTE: ASSIGNED BY ATC ONLY.
1701231805-1703020901
1/23/171805Z !FDC 7/6802 SAT STAR SAN ANTONIO INTERNATIONAL, SAN ANTONIO, TX.
STONEWALL ONE ARRIVAL... REVISE SAT LOCALIZER LABEL RWY 3 TO READ:
RWY 4.
1701231805-1703020901
1/13/172146Z !FDC 7/4314 SAT IAP SAN ANTONIO INTL, SAN ANTONIO, TX.
ILS OR LOC RWY 4, AMDT 22A...
AUTOPILOT COUPLED APPROACH NA BELOW 1189 MSL.
1701132146-1708252146EST
8/23/161913Z !FDC 6/9439 SAT IAP SAN ANTONIO INTL, SAN ANTONIO, TX.
ILS OR LOC RWY 30L, AMDT 10B...
S-ILS 30L DA 1083/HAT 293 ALL CATS.
DISREGARD NOTE: # RVR 1800 AUTHORIZED WITH THE USE OF FD OR HUD TO
DA.
CRANE, 1957 FT WEST OF APPROACH END RWY 30L, UP TO 1007 MSL,
2015-ASW-7559 THRU 7563-NRA.
1608231913-1704041913EST
8/23/161913Z !FDC 6/9438 SAT IAP SAN ANTONIO INTL, SAN ANTONIO, TX.
RNAV (GPS) Y RWY 4, AMDT 3A...
LPV DA 1115/HAT 329 ALL CATS.
CRANES, UP TO 1007 MSL, 1098 FT NW OF APPROACH END RWY 4,
2015-ASW-7559 THRU 7563-NRA.
1608231913-1704041913EST
8/23/161913Z !FDC 6/9436 SAT IAP SAN ANTONIO INTL, SAN ANTONIO, TX.
ILS OR LOC RWY 4, AMDT 22A...
S-ILS 4 DA 1115/HAT 329 ALL CATS.
ZINON FIX MINIMUMS NA.
VDP AT 2.68 DME; DISTANCE VDP TO THLD 1.12 MILES.
CRANES, UP TO 1007 MSL, 1098 FT NW OF APPROACH END RWY 4,
2015-ASW-7559 THRU 7563-NRA.
1608231913-1704041913EST
Operations
Collapse TabsCollapse Tabs
Operational
Public
Airport Traffic Control Tower
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SAT
Yes - Lighted
No
N/A
Clear-Green
SS-SR
N/A, 100LL, A
Landing Rights Airport
NOT an Airport of Entry
CITY OF SAN ANTONIO
100 MILITARY PLAZA
SAN ANTONIO, TX 78207

Phone: 210-207-7253
NOEL T. JONES
9800 AIRPORT BLVD
SAN ANTONIO, TX 78216

Phone: 210-207-3450
Communication
Collapse TabsCollapse Tabs
Channel Frequency Code Notes
UNICOM 122.950
ATIS 118.9 D-ATIS
APPROACH/DEPARTURE 118.05 APCH/P DEP/P CLASS C (141-270)
124.45 APCH/P DEP/P CLASS C (360-090)
128.05 APCH/P DEP/P CLASS C (091-140)
318.1 APCH/P DEP/P CLASS C (091-140)
335.625 APCH/P DEP/P CLASS C 360-090
353.5 APCH/P DEP/P CLASS C (141-270)
125.1 APCH/P DEP/P CLASS C IC (271-359)
307 APCH/P DEP/P CLASS C IC (271-359)
125.7 APCH/S DEP/S
127.1 APCH/S DEP/S
251.125 APCH/S DEP/S
290.225 APCH/S DEP/S
CLEARANCE DELIVERY 126.7 CD/P
EMERGENCY 121.5 EMERG
243 EMERG
GROUND 121.9 GND/P
348.6 GND/P
TOWER 119.8 LCL/P
257.8 LCL/P
Other - (ALAMO) 125.1 ALAMO RY 04/22/30
127.1 ALAMO RY 12
269.1 ALAMO RY 12
307 ALAMO RY 04/22/30
Other - (ALISS) 125.1 ALISS RY 04/22/30
125.7 ALISS RY 12
290.225 ALISS RY 12
Other - (AS ASGND) 120.3 AS ASGND
121.2 AS ASGND
239.025 AS ASGND
285.45 AS ASGND
317.5 AS ASGND
Other - (BOWIE) 125.1 BOWIE RY 04 LRD TRANSITION
125.7 BOWIE RY 12/22/30
127.1 BOWIE RY O4 CRP TRANSITION
269.1 BOWIE RY 04 CRP TRANSITION
290.225 BOWIE RY 04/12/30
307 BOWIE RY 04 LRD TRANSITION
Other - (LEJON) 125.1 LEJON RY04/22/30
125.7 LEJON RY 12
290.225 LEJON RY 12
307 LEJON RY 04/22/30
Other - (MILET) 125.1 MILET RY 04
125.7 MILET RY 12/22/30
290.225 MILET RY 12/22/30
307 MILET RY 04
Other - (SETZR) 125.1 SETZR RY 30
125.7 SETZR RY 22
127.1 SETZR RY 04 RY 12
269.1 SETZR RY 04 RY 12
290.225 SETZR RY 22
307 SETZR RY 30
Other - (THX) 125.7 THX RY 12/22/30
127.1 THX RY 04
269.1 THX RY 04
290.225 THX RY 12/22/30
Other - (THX TWO) 269.1 THX TWO RY 04
Documents
Collapse TabsCollapse Tabs
Runways
Collapse TabsCollapse Tabs

Runway 04/22

8505 ft. x 150 ft.
CONC
Good
GRVD
HIGH
91 /R/B/W/T
95000 lbs
190000 lbs
270000 lbs
0 lbs
  Runway 04 Runway 22
Runway Heading 41° 221°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29° 31' 24"N 29° 32' 27"N
Longitude 98° 28' 12"W 98° 27' 09"W
Elevation 786 ft. 754.2 ft.
Threshold Crossing Height 79 ft. AGL 85 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4R P4L
Approach Lights MALS
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 12L/30R

5519 ft. x 100 ft.
ASPH
Fair

MED
61 /F/C/W/T
59000 lbs
120000 lbs
0 lbs
0 lbs
  Runway 12L Runway 30R
Runway Heading 132° 312°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 29° 32' 25"N 29° 31' 49"N
Longitude 98° 28' 40"W 98° 27' 53"W
Elevation 797.2 ft. 779.2 ft.
Threshold Crossing Height 40 ft. AGL 60 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12R/30L

8502 ft. x 150 ft.
CONC
Good
GRVD
HIGH
86 /R/B/W/T
95000 lbs
190000 lbs
270000 lbs
0 lbs
  Runway 12R Runway 30L
Runway Heading 132° 312°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29° 32' 34"N 29° 31' 38"N
Longitude 98° 29' 08"W 98° 27' 56"W
Elevation 809.1 ft. 778.4 ft.
Threshold Crossing Height 75 ft. AGL 82 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights
Hangars & Properties
Collapse TabsCollapse Tabs

View hangar and property listings at KSAT, provided by our partner Hangar Network.

KSAT
1115 Paul Watkins Street
San Antonio, TX 78216
Transient Space
Property Type Hangar
Hangar Size 20,000 sf
View Listing Details »
Remarks
Collapse TabsCollapse Tabs
  • A110-12 - GLIDER/SOARING OPNS APRXLY 17 MILES NW OF ARPT DURG VFR.
  • A110-14 - TWY D NON-MOVEMENT AREA FM TWY N TO 500 FT W OF TWY N.
  • A110-16 - NOISE SENSITIVE AREAS EXIST ON ALL SIDES OF THE ARPT: AT THE PILOT'S DISCRETION CLIMB AS QUICKLY & QUIETLY AS SAFELY POSSIBLE ON DEP & USE CONSIDERATION WHEN FLYING OVER POPULATED AREAS BY MINIMIZING FLIGHT & HIGH POWER SETTINGS. ENGINE-UPS ARE PERMITTED BTN 0600-2300.
  • A110-17 - ACFT TAXIING ON RY 04 NE BOUND LOOK FOR HOLD SHORT TO RY 30L.
  • A110-18 - ACFT TAXIING ON TWY N SW BOUND LOOK FOR HOLD SHORT TO RY 30R.
  • A110-19 - WORK IN PROGRESS SCHEDULED MAINTENANCE ON & ALONG TWYS AND RAMPS AREAS AT VARIOUS TIMES.
  • A110-20 - GROUND RUN-UP ENCLOSURE AVBL 24 HRS.
  • A110-21 - TERMINAL GATES A1, A5, A6, A7 & A8 USE ONLY WITH PPR CALL OPNS 210-413-4928.
  • A110-24 - RY 12L/30R NOT AVBL FOR PART 121 ACR OPNS.
  • A110-25 - THE FOLLOWING TWYS ARE NOT AVBL FOR ACFT 59,000 LBS OR OVER: TWY A & TWY J NORTH OF RY 12R-30L, TWY M & TWY P, TWY H NORTHWEST OF TWY Z AND TWY E EAST OF RY 04/22.
  • A110-26 - TWY Z CLSD TO ACFT WITH WINGSPAN GREATER THAN 118 FT.
  • A110-27 - C130 AND C141 TYPE ACFT SHALL PARK ON WEST RAMP TO CLEAR CUSTOMS.
  • A110-31 - INNER RAMP TAXILANE EAST OF TERMINAL A IS CLSD TO ACFT WITH WINGSPAN GREATER THAN 118 FT EXCEPT FOR ACFT CROSSING THE INNER RAMP TO GATES A1 TO A5.
  • A110-33 - PPR WITH ARPT OPNS FOR ACFT POWERING BACK FM TERMINAL GATES.
  • A110-34 - TWYS L & B CLSD TO ACFT WITH WINGSPANS GREATER THAN 118 FT EXITING RY 30L.
  • A110-35 - A BARRICADED PAVEMENT ELEVATION CHANGE EXISTS ALONG THE EASTERN SIDE OF THE WEST RAMP.
  • A110-36 - FREQUENT RUBBER ACCUMULATION NW 2500 RY 12R/30L
  • A110-38 - ACFT AT TERMINAL A & B ADVISE GND CTL PRIOR TO PUSH.
  • A110-39 - COMPASS DEVIATION MAY OCCUR AT THE NW PORTION OF TWY R DUE TO REBAR RE-ENFORCED CONC BRIDGE LCTD UNDER THE TWY.
  • A110-4 - TWY L CLSD NORTHBOUND.
  • A110-41 - TWY R WEST OF TWY D CLSD TO ACFT OVER 270,000 LBS.
  • A110-42 - ALL INTERNATIONAL GA CLEAR U.S CUSTOMS AT SOUTH CUSTOMS RAMP, CALL U.S. CUSTOMS 210-821-6965 UPON ARRIVAL.
  • A110-44 - INNER TAXILANE NORTH OF TERMINALS A & B IS CLSD TO ACFT WITH WINGSPAN GREATER THAN 118 FT.
  • A110-45 - AERODROME ALL SFC WIP CONST FOR CURRENT INFO CTC OPS. 210-413-4928.
  • A110-46 - ARPT CLSD TO AICFT WITH WINGSPAN GTR THAN 171FT. USE ONLY WITH 24 HR PPR CONTACT OPS. 210-413-4928.
  • A110-7 - NUMEROUS FLOCKS OF BIRDS INVOF ARPT.

KSAT FBOs, Flight Schools and Ground Support

Skyplace FBO
UNICOM: 122.950
Phone: (210) 805-3130
No Rating Available
0 Reviews (Read | Sign In To Write)
Epic
Fuel as of 2/14 100LL SS-- 100LL FS$6.92 Jet A$5.84 Jet A+$5.92 MoGas--
Million Air
UNICOM: 129.625
Phone: (210) 828-8181
No Rating Available
0 Reviews (Read | Sign In To Write)
AvFuel
Fuel as of 2/8 100LL SS-- 100LL FS$6.95 Jet A$6.01 Jet A+$6.06 MoGas--
Signature Flight Support
UNICOM: 122.950
Phone: (210) 828-0551
No Rating Available
0 Reviews (Read | Sign In To Write)
Shell
Fuel as of 2/15 100LL SS-- 100LL FS$6.95 Jet A$6.17 Jet A+-- MoGas--
Signature Flight Support
UNICOM: 122.950
Phone: (210) 625-9100
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
Fuel as of 2/19 100LL SS-- 100LL FS$6.95 Jet A$6.17 Jet A+-- MoGas--

KSAT Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSAT Hotels

No hotels are listed for this airport.

KSAT Restaurants

No restaurants are listed for this airport.

KSAT Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

SAN ANTONIO INTL (ICAO: KSAT, FAA: SAT) is a public airport located in SAN ANTONIO, TX.
