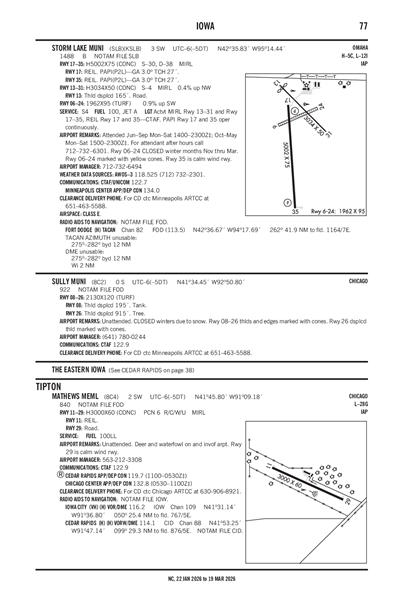

STORM LAKE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSLB
STORM LAKE MUNI
PublicPUB

3 miles SW of STORM LAKE, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 35' 50"N 95° 14' 26"W
1488' MSL
2488' MSL
04E
Jet A, 100
FORT DODGE (FOD)
OMAHA
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KSLB VFR
2:55 AM CDT
Few 12,000'
10sm
59°F
59°F
29.77"Hg
130° 5kts
AO2
KSLB 200755Z AUTO 13005KT 10SM FEW120 15/15 A2977 RMK AO2
List Your Business

KSLB FBOs, Flight Schools and Ground Support

Promote Listing
Bart's Flying Service
Freq: 122.7
Phone: (712) 732-6494
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.18 4.68
Full Serve

KSLB Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KSLB Hotels

No hotels are listed for this airport.

KSLB Restaurants

No restaurants are listed for this airport.

KSLB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
712-732-2301
 118.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFOD (47nm)
Mon, 5/20 12:20 AM CDT
Mon, 5/20 1:00 AM CDT - Tue, 5/21 1:00 AM CDT
VFR
1:00 AM CDT - 3:00 AM CDT
Showers and Rain and Mist and Thunderstorm in vicinity
Overcast 8,000'
6sm
130° 12kts
VFR
3:00 AM CDT - 7:00 AM CDT
Light Showers and Rain and Mist
Overcast 5,000'
6sm
160° 9kts
VFR
7:00 AM CDT - 3:00 PM CDT
Broken 8,000'
6sm
180° 8kts
VFR
3:00 PM CDT - 6:00 PM CDT
Scattered 5,000'
6sm
230° 8kts
VFR
6:00 PM CDT - 1:00 AM CDT
Thunderstorm in vicinity
Scattered 7,000'
6sm
110° 5kts
KFOD 200520Z 2006/2106 13012KT 6SM SHRA BR VCTS OVC080CB
   FM200800 16009KT 6SM -SHRA BR OVC050
   FM201200 18008KT P6SM BKN080
   FM202000 23008KT P6SM SCT050
   FM202300 11005KT P6SM VCTS SCT070CB
KSLB
Domestic
5/14/241353Z !SLB 05/005 SLB RWY 06/24 CLSD 2405141353-2407012359
5/13/241704Z !SLB 05/004 SLB OBST TOWER LGT (ASN 2017-ACE-5842-OE) 424551N0951504W (10.0NM N SLB) 1677FT (259FT AGL) U/S 2405131704-2406271703
4/29/240159Z !SLB 04/004 SLB OBST TOWER LGT (ASR 1026558) 423859.00N0950954.00W (4.6NM NE SLB) 1848.1FT (418.0FT AGL) U/S 2404290159-2406130158
4/12/241349Z !SLB 04/003 SLB RWY 35 RWY END ID LGT U/S 2404121349-2410142111EST
4/12/241348Z !SLB 04/002 SLB RWY 17 RWY END ID LGT U/S 2404121348-2410142111EST
3/13/241601Z !SLB 03/002 SLB AD AP ABN U/S 2403131601-2406132359
1/19/241809Z !SLB 01/006 SLB RWY 35 PAPI U/S 2401191809-2407202111EST
1/19/241809Z !SLB 01/005 SLB RWY 17 PAPI U/S 2401191809-2407202111EST
No
JUNE - SEPT MON-SAT 0800-1700
OCT - MAY MON - SAT 0900 - 1700
FOR ATTANDANT AFTER HRS CALL 712-732-6301.
CITY OF STORM LAKE
CITY HALL P.O. BOX 1086
STORM LAKE, IA 50588
Phone: 712-732-8001
JIM BARTHOLOMEW
850 630TH ST
STORM LAKE, IA 50588
Phone: 712-732-6494
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
SLB
--
ACTVT MIRL RWY 13/31 & RWY 17/35 & REIL RWY 17 & 35- CTAF. PAPI RWYS 17 & 35 OPER CONTINUOUSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
19
0
1
0
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

1962 ft. x 95 ft.
TURF
Good
NONE


--
--
--
--
  Runway 06 Runway 24
True Heading 66°246°
Traffic Pattern
Markings
Markings Condition
Latitude 42° 35' 55"N 42° 36' 03"N
Longitude 95° 14' 37"W 95° 14' 14"W
Elevation 1,488' 1,470'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

3034 ft. x 50 ft.
CONC
Good
NONE
MED

4,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 134°314°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 36' 13"N 42° 35' 52"N
Longitude 95° 14' 37"W 95° 14' 08"W
Elevation 1,477' 1,467'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5002 ft. x 75 ft.
CONC
Good
NONE
MED

30,000lbs
38,000lbs
--
--
  Runway 17 Runway 35
True Heading 175°355°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 36' 04"N 42° 35' 15"N
Longitude 95° 14' 32"W 95° 14' 26"W
Elevation 1,480' 1,480'
Threshold Crossing Height 27 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-101RY 35 IS CALM WIND RY.
A110-102FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
STORM LAKE MUNI (ICAO: KSLB, IATA: SLB) is a public airport located in STORM LAKE, IA.
