iFlightPlanner



...

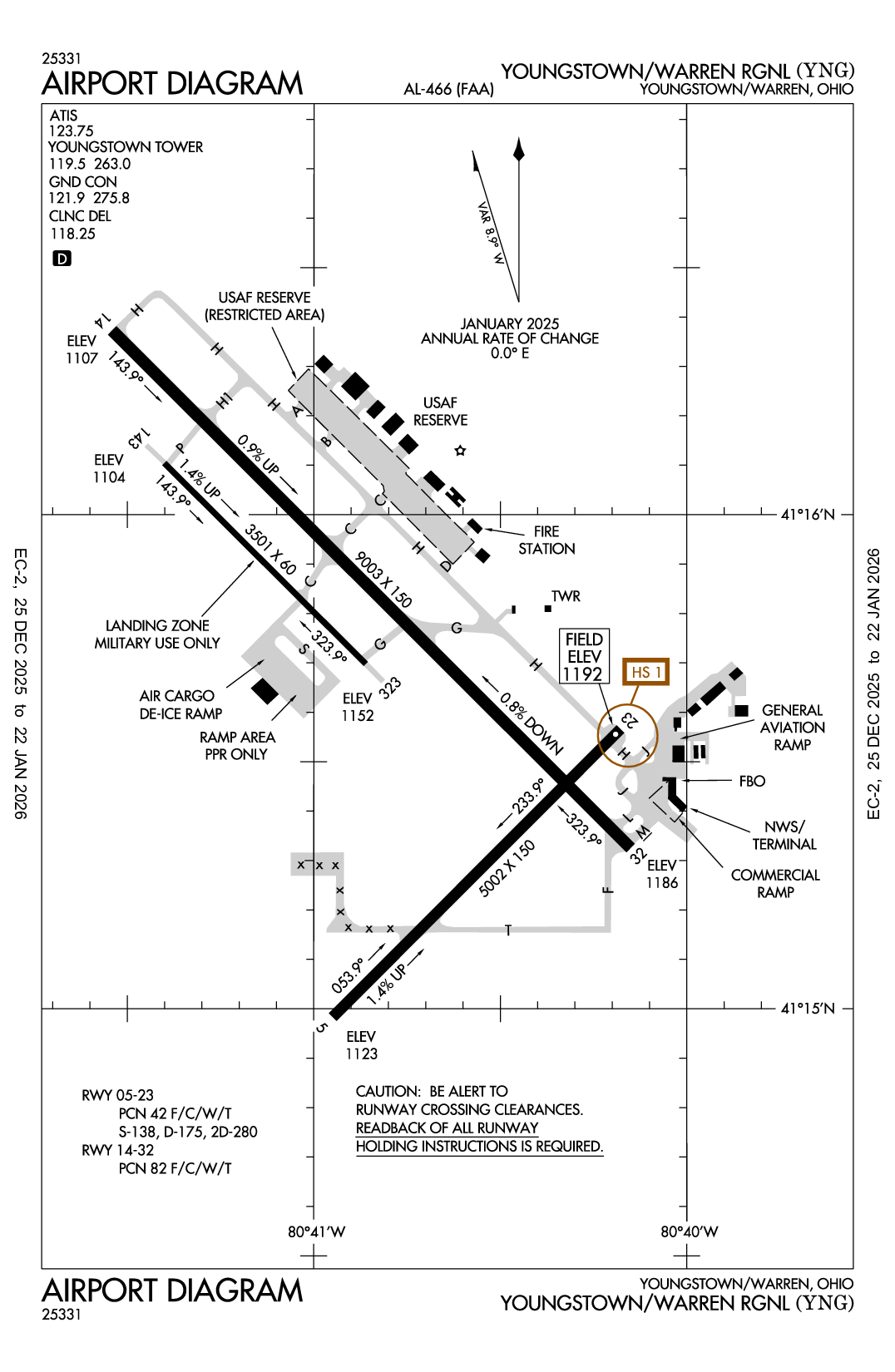

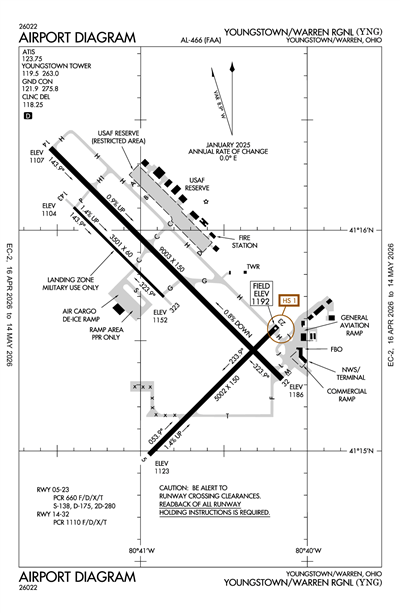

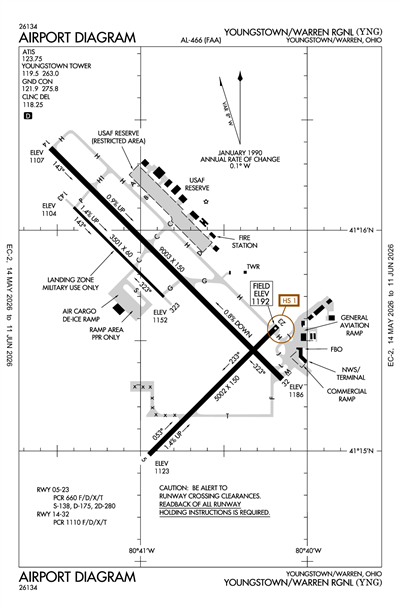

YOUNGSTOWN/WARREN RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KYNG
YOUNGSTOWN/WARREN RGNL
PublicPUB

10 miles N of YOUNGSTOWN/WARREN, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 15' 42"N 80° 40' 49"W
1192' MSL
2192' MSL
08W
Jet A, 100LL
CLEVELAND (CLE)
DETROIT
CLEVELAND (ZOB)
4/18/24-5/16/24
KYNG VFR
4:51 AM EDT
Scattered 25,000'
10sm
56°F
45°F
29.96"Hg
120° 7kts
AO2 SLP140 T01330072 55002
KYNG 030851Z 12007KT 10SM SCT250 13/07 A2996 RMK AO2 SLP140 T01330072 55002
List Your Business

KYNG FBOs, Flight Schools and Ground Support

Promote Listing
Winner Aviation
Freq: 122.95
Phone: (330) 856-5000
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Jets FBO
Freq: 122.95
Phone: (330) 597-0397
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.49 6.73 6.83

KYNG Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KYNG Hotels

No hotels are listed for this airport.

KYNG Restaurants

No restaurants are listed for this airport.

KYNG Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
 123.75

Approach/Departure

APCH/P DEP/P
 133.95
APCH/S DEP/S
 127.15

Clearance Delivery

CD/P
 118.25

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 119.5

Other

TRSA
 133.95

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KYNG
Fri, 5/3 1:43 AM EDT
Fri, 5/3 2:00 AM EDT - Sat, 5/4 2:00 AM EDT
VFR
2:00 AM EDT - 1:00 PM EDT
Broken 15,000'
Scattered 7,000'
6sm
090° 7kts
VFR
1:00 PM EDT - 7:00 PM EDT
Showers in vicinity
Broken 10,000'
Broken 6,000'
6sm
350° 6kts
MVFR
Temporary 4:00 PM EDT - 7:00 PM EDT
Light Thunderstorm and Rain
Overcast 2,000'
Scattered 500'
5sm
Calm
VFR
7:00 PM EDT - 1:00 AM EDT
Light Showers and Rain
Overcast 4,000'
6sm
040° 6kts
MVFR
1:00 AM EDT - 2:00 AM EDT
Light Showers and Rain and Mist
Overcast 1,500'
6sm
120° 4kts
KYNG 030543Z 0306/0406 09007KT P6SM SCT070 BKN150
   FM031700 35006KT P6SM VCSH BKN060 BKN100
   TEMPO 0320/0323 5SM -TSRA SCT005 OVC020CB
   FM032300 04006KT P6SM -SHRA OVC040
   FM040500 12004KT 6SM -SHRA BR OVC015
KYNG
Domestic
4/1/242057Z !YNG 04/007 YNG OBST TOWER LGT (ASR 1024817) 411553.40N0803655.60W (2.9NM E YNG) 1382.2FT (265.1FT AGL) U/S 2404012057-2407302057
3/24/240422Z !YNG 03/126 YNG OBST TOWER LGT (ASR 1204086) 411427.20N0803115.20W (7.3NM E YNG) 1538.1FT (448.2FT AGL) U/S 2403240422-2405080421
2/17/240300Z !YNG 02/013 YNG AD AP SFC COND NOT REP DLY 0300-1100 2402170300-2501061100
11/23/231611Z !YNG 11/031 YNG TWY M SFC PAINTED HLDG PSN SIGNS NOT STD 2311231611-2406281400EST
FDC
6/8/231235Z !FDC 3/7682 YNG IAP YOUNGSTOWN/WARREN RGNL, YOUNGSTOWN/WARREN, OH.
RNAV (GPS) RWY 14, ORIG-C...
NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT.
2306081235-2506081235EST
3/17/231614Z !FDC 3/9081 YNG IAP YOUNGSTOWN/WARREN RGNL, YOUNGSTOWN/WARREN, OH.
RADAR 1, AMDT 14...
ASR RWY 14 MDA 1540/HAT 406 ALL CATS, VISIBILITY CATS A/B 1/2 SM, VISIBILITY CATS C/D 3/4 SM.
ASR RWY 23 MDA 1600/HAT 408 ALL CATS.
ADD NOTE: FOR INOPERATIVE ALS INCREASE ASR-14 CATS A/B VISIBILITY TO 1 SM, CATS C/D VISIBILITY TO 1 1/8 SM.
2303171614-2503171614EST
Military
5/3/240228Z M0101/24 NOTAMC M0100/24
5/2/241514Z M0099/24 NOTAMC M0098/24
4/30/241927Z M0097/24 NOTAMC M0096/24
Yes
ALL
WESTERN RESERVE PORT AUTHORITY
1453 YOUNGSTOWN KINGSVILLE RD NE, STE 11
VIENNA, OH 44473-9797
Phone: 330-856-1537
ANTHONY TREVENA
1453 YOUNGSTOWN KINGSVILLE RD NE, STE 11
VIENNA, OH 44473-9797
Phone: 234-228-9696
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
YNG
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
20
2
9
0
8
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

5002 ft. x 150 ft.
ASPH
Good
GRVD
MED
42 /F/C/W/T
138,000lbs
175,000lbs
280,000lbs
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 14' 59"N 41° 15' 34"N
Longitude 80° 40' 57"W 80° 40' 11"W
Elevation 1,123' 1,192'
Threshold Crossing Height 51 ft. AGL 24 ft. AGL
Visual Glide Path Angle 3.25° 3°
Visual Slope Indicator P4R P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

9003 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
82 /F/C/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 16' 22"N 41° 15' 20"N
Longitude 80° 41' 32"W 80° 40' 09"W
Elevation 1,107' 1,186'
Threshold Crossing Height 57 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights

Runway 143/323

3501 ft. x 60 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway 143 Runway 323
True Heading 135°315°
Traffic Pattern
Markings
Markings Condition
Latitude 41° 16' 06"N 41° 15' 42"N
Longitude 80° 41' 24"W 80° 40' 52"W
Elevation 1,104' 1,152'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10TWY G EAST OF TWY H & TWY F NORTH OF RY 05/23 ARE CLSD.
A110-11RSTD: MIL LANDING ZONE 143*-323* FOR MIL USE ONLY. NO PRACTICE APCH 0300-1300Z++. AFRC ACFT OPR RSTD DUR BIRD WATCH CON MODERATE (TKOF OR LDG PERMS ONLY WHEN DEP AND ARR RTE AVOID IDENT BIRD ACT, NO LCL IFR/VFR TFC PAT ACT) AND SEVERE (TKOF AND LDG PROH WO OG/CC APVL).
A110-13MISC: FBO LINE SVC AVBL 1100-0400Z++, OT FONE C330-442-3374.
A110-14MILITARY: AFRC: PPR FOR RAMP AND MIL LZ CTC BASOPS 1230-0400Z++ MON-FRI EXC HOLS (DT 1130-0400Z) AND DURG UNIT TRNG SAT 1300-2200Z++ AND SUN 1200-2100Z++. 48 HRS PN FOR RAMP CTC AFLD MGMT DSN 346-1069/1181, C330-609-1069/1181. AFLD MGMT AND MIL LZ 143/323 OPEN 1230-0400Z++ MON-THU & 1230-0001Z++ FRI, EXC HOLS; 1200-2100Z++ SAT & SUN DURG UNIT TRNG.
A110-15AFRC: NO TRANS ALERT SVC. INBD MIL ACFT INDICATE IN RMK DD FORM 175 WHETHER PRK WILL BE ON CIV OR MIL RAMP. TRANS ACFT RQR MAINT WILL BE RECOVERED BY HOME BASE. ACFT SECURITY NOT AVBL FOR C5 RON EXC EMERG.
A110-16AFRC: MIL LANDING ZONE 323 1.4% DOWNSLOPE. RY 143 1.4% UPSLOPE. SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-17FUEL: J8+100(MIL) J8(PN REQ) (NC-100LL,A).
A110-18FLUID: LOX (MIL).
A110-19OIL: O -156
A110-20TERMINAL RAMP AND GENERAL AVIATION PARKING NOT VIS FR THE NW PORTION OF TWY H. MILITARY RAMP FOR MILITARY USE ONLY.
A110-22COMMERCIAL RAMP CLSD TO ALL GA TRAFFIC, COMMERCIAL BOUNDARY AREA DEFINED BY RED SFC PAINTED MARKING.
A110-23AMOPS DOES NOT ISSUE OR STOR COMSEC. LTD COMSEC STOR AVBL AT COMD POST, CTC DSN 346-1315, C330-609-1315 FOR PRIOR COORD.
A110-24FOR CD CTC YOUNGSTOWN APCH AT 330-856-4806, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0232.
A110-25AFRC: AIRCREWS - US CSTMS SVC NOT IMMED AVBL. ALL SUPPORT FOR CSTMS MUST BE PRE-COORD AT LEAST 72 HR IN ADVANCE WITH AFLD MGMT
A110-26TWY J ACFT TURN RADIUS RESTRICTION EXISTS FOR ACFT HAVING NOSE GEAR TO MAIN GEAR DIST GREATER THAN 64FT AND MAIN GEAR WID GREATER THAN 30FT
A110-27RSTD: ALL MIL ACFT OPR RSTD DRG BIRD WATCH CONDS, MODERATE (TKOF AND LNDG PMTD ONLY WHEN DEP/ARR RTE AVOID IDENT BIRD ACT, NON LCL IFR/VFR PAT ACT) AND SEVERE (TKOF AND LNDG PROHIBITED WO OG/CC APVL).
A110-28CAUTION: MIL CONDUCTING NVG OPS MON-FRI DUSK-0400++.
A110-3DEER & BIRD HAZARD. ALL MIL ACFT CTC VADER OPS FOR BIRD WATCH COND.
A110-9TWY 'T' W OF RY 5/23 CLSD INDEFLY.
YOUNGSTOWN/WARREN RGNL (ICAO: KYNG, IATA: YNG) is a public airport located in YOUNGSTOWN/WARREN, OH.
