MAYFIELD GRAVES COUNTY - Airport Diagram

M25

MAYFIELD GRAVES COUNTY

PublicPUB

3 miles NE of MAYFIELD, KY

View on Map

Status

Operational

Coordinates

36° 46' 11"N 88° 35' 05"W

Elevation

522' MSL

Pattern Alt

1522' MSL

Mag Variation

02W

Fuel

Jet A+, 100LL

FSS

LOUISVILLE (LOU)

Sectional

ST LOUIS

ARTCC

MEMPHIS (ZME)

Data Effective

4/18/24-5/16/24

KCEY (12nm) VFR

7:35 PM CDT RAW

Clear

Viz

10sm

Temp

73°F

Dew

70°F

Pres

29.97"Hg

Wind

Calm

RMK

A01

KCEY 060035Z AUTO 00000KT 10SM CLR 23/21 A2997 RMK A01

List Your Business

M25 FBOs, Flight Schools and Ground Support

Takeoffs Flight Training

Freq: 122.8

0 Reviews (Read | Sign In To Write)

Mayfield-Graves County Airport

Freq: 122.8

Phone: (270) 247-6878

0 Reviews (Read | Sign In To Write)

Titan

As of 4/30	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	5.75		5.25
Full Serve

M25 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

M25 Hotels

No hotels are listed for this airport.

M25 Restaurants

No restaurants are listed for this airport.

M25 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3

270-247-2094

120.625

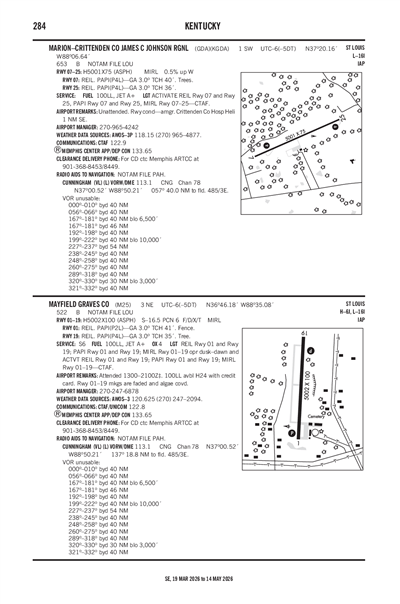

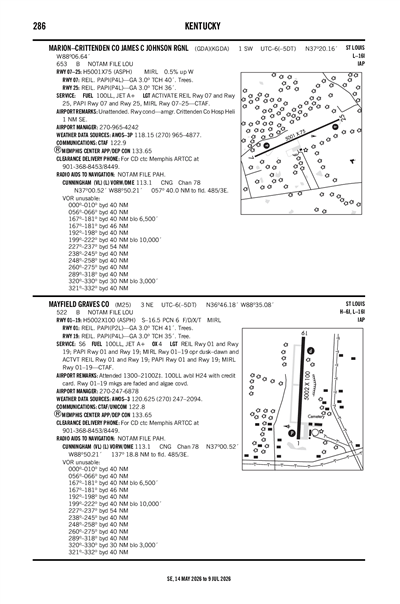

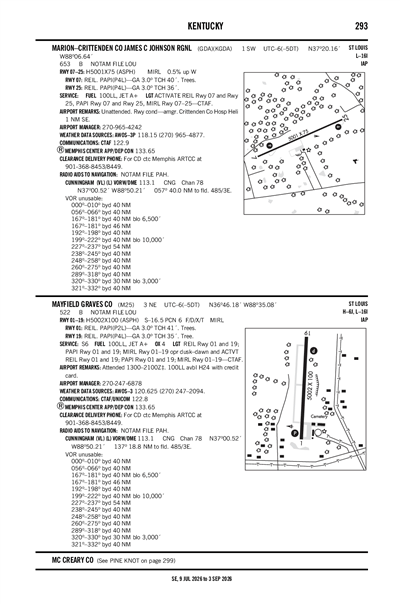

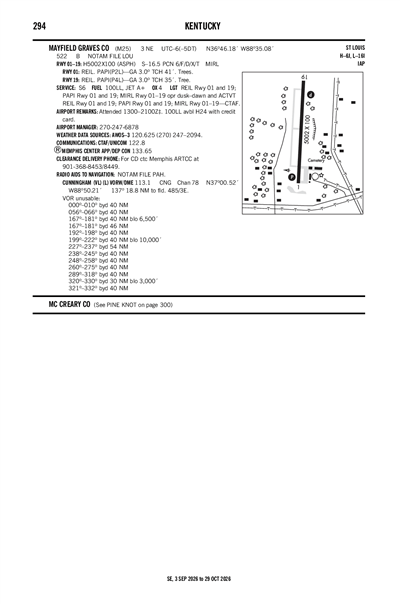

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KPAH (20nm)

RAW

Reported

Sun, 5/5 6:35 PM CDT

Valid

Sun, 5/5 7:00 PM CDT - Mon, 5/6 7:00 PM CDT

MVFR

7:00 PM CDT - 10:00 PM CDT

Showers and Rain and Thunderstorm in vicinity

Broken 3,500'
Scattered 2,500'

Viz

4sm

Wind

060° 8kts

Gusts 16kts

IFR

Temporary 7:00 PM CDT - 10:00 PM CDT

Thunderstorm and Rain and Mist

Overcast 2,500'

Viz

2sm

Wind

Calm

VFR

10:00 PM CDT - 12:00 AM CDT

Light Showers and Rain

Overcast 5,000'
Scattered 2,500'

Viz

6sm

Wind

130° 6kts

MVFR

12:00 AM CDT - 5:00 AM CDT

Light Showers and Rain and Mist

Broken 2,500'
Scattered 1,500'

Viz

6sm

Wind

100° 3kts

IFR

5:00 AM CDT - 11:00 AM CDT

Showers in vicinity

Overcast 2,500'
Broken 800'

Viz

6sm

Wind

110° 7kts

MVFR

11:00 AM CDT - 1:00 PM CDT

Showers in vicinity

Broken 2,500'
Scattered 600'

Viz

6sm

Wind

180° 8kts

VFR

1:00 PM CDT - 7:00 PM CDT

Broken 3,500'

Viz

6sm

Wind

240° 9kts

KPAH 052335Z 0600/0624 06008G16KT 4SM SHRA VCTS SCT025 BKN035CB
   TEMPO 0600/0603 2SM TSRA BR OVC025CB
   FM060300 13006KT 6SM -SHRA SCT025 OVC050
   FM060500 10003KT 6SM -SHRA BR SCT015 BKN025
   FM061000 11007KT P6SM VCSH BKN008 OVC025
   FM061600 18008KT P6SM VCSH SCT006 BKN025
   FM061800 24009KT P6SM BKN035

M25

Domestic
4/30/241559Z	!LOU 04/461 M25 OBST TOWER LGT (ASR 1043916) 364537.00N0883820.00W (2.7NM WSW M25) 645.0FT (205.1FT AGL) U/S 2404301559-2407302359
12/29/231017Z	!LOU 12/308 M25 SVC AUTOMATED WX BCST SYSTEM PRESENT WX UNREL 2312291017-2405312200EST
FDC
9/1/231510Z	!FDC 3/4776 M25 IAP MAYFIELD GRAVES COUNTY, MAYFIELD, KY. RNAV (GPS) Z RWY 1, ORIG-A... LPV DA NA; LNAV/VNAV DA NA. 2309011510-2509011510EST

ATC Tower

Attendance

0700-1500

Owner

MAYFIELD & GRAVES COUNTY ARPT BOARD
227 AIRPORT ROAD
MAYFIELD, KY 42066
Phone: (270) 970-2754

Manager

BRENT ROBERTSON
227 AIRPORT ROAD
MAYFIELD, KY 42066
Phone: 270-247-6878

FSS

LOUISVILLE FSS (LOU)
Toll Free: 1-800-WX-BRIEF

NOTAM

LOU

Light Schedule

Lights

REIL RWY 01 & 19; PAPI RWY 01 & 19; MIRL RWY 01/19 OPR DUSK-DAWN & ACTVT REIL RWY 01 & 19; PAPI RWY 01 & 19; MIRL RWY 01/19 CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Major

Bottled Oxygen

Low Pressure

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental

Runway 01/19

Dimensions

5002 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

6 /F/D/X/T

Single Wheel

16,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 01	Runway 19
True Heading	4°	184°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	POOR	POOR
Latitude	36° 45' 46"N	36° 46' 35"N
Longitude	88° 35' 07"W	88° 35' 02"W
Elevation	519'	522'
Threshold Crossing Height	41 ft. AGL	35 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1

FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.

MAYFIELD GRAVES COUNTY (IATA: M25) is a public airport located in MAYFIELD, KY.
