P03
COCHISE COLLEGE
Public
PUB
7 miles W of DOUGLAS, AZ
View on
Map
Status
Operational
Coordinates
31° 22' 17"N
109° 41' 24"W
Elevation
4146' MSL
Pattern Alt
5146' MSL
Mag Variation
12E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
4/18/24-5/16/24
KDUG (8nm)
VFR
10:56 PM MST
RAW
Clear
Viz
10sm
Temp
65°F
Dew
23°F
Pres
29.95"Hg
Wind
250° 11kts
RMK
AO2 SLP076 T01831050 10289 20183 51021 TSNO
KDUG 060556Z AUTO 25011KT 10SM CLR 18/M05 A2995 RMK AO2 SLP076 T01831050 10289 20183 51021 TSNO
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
P03 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
P03 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
P03 Hotels
No hotels are listed for this airport.
P03 Restaurants
No restaurants are listed for this airport.
P03 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
AWOS-2
AWOS-2
520-417-4114
119.925

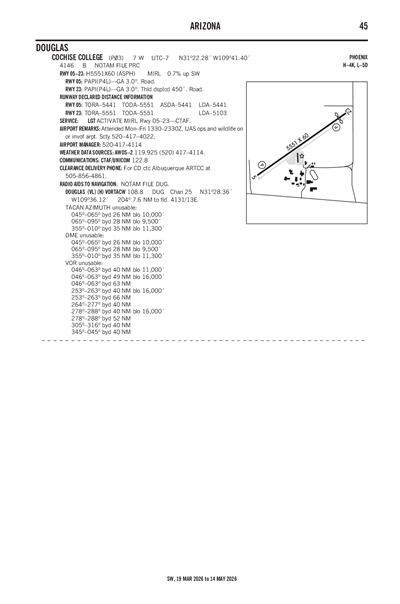

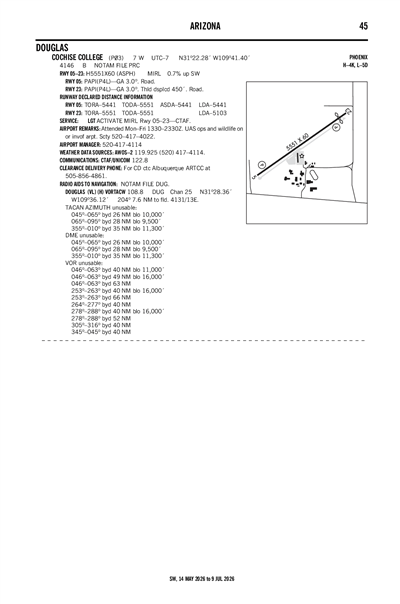

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KDUG (8nm)
RAW
Reported
Sun, 5/5 10:20 PM MST
Valid
Sun, 5/5 11:00 PM MST - Mon, 5/6 11:00 PM MST
VFR
11:00 PM MST - 2:00 AM MST
Broken 25,000'
Viz
6sm
Wind
220° 12kts
VFR
2:00 AM MST - 12:00 PM MST
Sky Clear
Viz
6sm
Wind
350° 7kts
VFR
12:00 PM MST - 11:00 PM MST
Sky Clear
Viz
6sm
Wind
290° 11kts
KDUG 060520Z 0606/0706 22012KT P6SM BKN250
FM060900 35007KT P6SM SKC
FM061900 29011KT P6SM SKC
P03
No NOTAM Available
ATC Tower
No
Attendance
MON-FRI 0630-1630
Owner
COCHISE COLLEGE
4190 W. HWY 80
DOUGLAS, AZ 85607-6190
Phone: 520-417-4114
Manager
BELINDA BURNETT
COCHISE COMMUNITY COLLEGE, 4190 W. HIGHWAY 80
DOUGLAS, AZ 85607-6190
Phone: 520-417-4114
FSS
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
NOTAM
PRC
Light Schedule
--
Lights
ACTVT MIRL RWY 05/23 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
8
# Multi Engine
1
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Pilot Instruction
Runway 05/23
Dimensions
5551 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 05
Runway 23
True Heading
57°
237°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
31° 22' 02"N
31° 22' 31"N
Longitude
109° 41' 51"W
109° 40' 57"W
Elevation
4,146'
4,110'
Threshold Crossing Height
--
--
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
UAS OPS & WILDLIFE ON OR INVOF ARPT.
A110-2
SCTY - 520-417-4022.
A110-5
FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
COCHISE COLLEGE (IATA: P03) is a public airport located in DOUGLAS, AZ.
