PABL
BUCKLAND
Public
PUB
1 miles SW of BUCKLAND, AK
View on
Map
Status
Operational
Coordinates
65° 58' 54"N
161° 08' 57"W
Elevation
29' MSL
Pattern Alt
1029' MSL
Mag Variation
11E
Fuel
None Listed
FSS
KOTZEBUE (OTZ)
Sectional
NOME
ARTCC
ANCHORAGE (ZAN)
Data Effective
5/16/24-6/13/24
PADE (40nm)
LIFR
2:53 AM AKDT
RAW
Overcast 300'
Viz
10sm
Temp
31°F
Dew
31°F
Pres
29.90"Hg
Wind
240° 5kts
RMK
AO2 SLP125 T10061006 TSNO $
PADE 201053Z AUTO 24005KT 10SM OVC003 M01/M01 A2990 RMK AO2 SLP125 T10061006 TSNO $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
PABL FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
PABL Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
PABL Hotels
No hotels are listed for this airport.
PABL Restaurants
No restaurants are listed for this airport.
PABL Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
AWOS-3P
AWOS-3P
907-494-2180
135.15

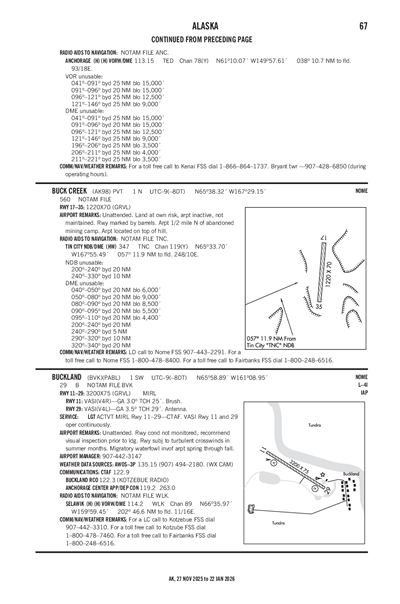

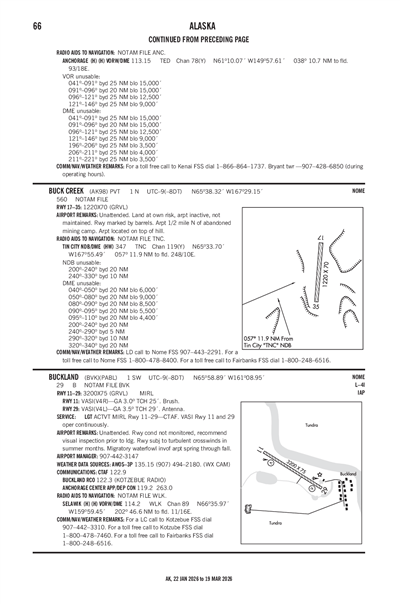

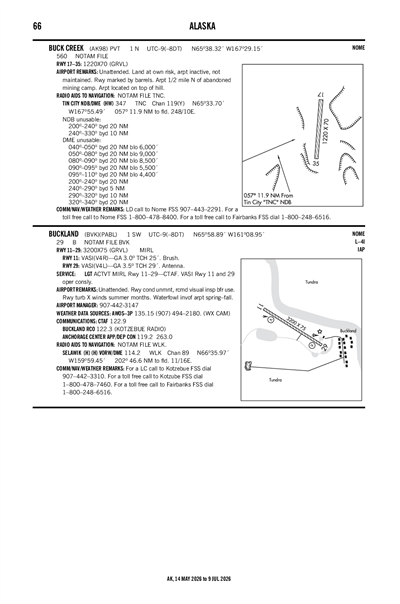

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 11
RNAV (GPS) RWY 29
Terminal Area Forecast
PAOT (65nm)
RAW
Reported
Mon, 5/20 1:00 AM AKDT
Valid
Mon, 5/20 1:00 AM AKDT - Mon, 5/20 10:00 PM AKDT
LIFR
1:00 AM AKDT - 7:00 AM AKDT
Overcast 300'
Viz
6sm
Wind
260° 7kts
IFR
7:00 AM AKDT - 3:00 PM AKDT
Mist and Showers in vicinity
Overcast 1,500'
Viz
2sm
Wind
200° 6kts
MVFR
3:00 PM AKDT - 10:00 PM AKDT
Overcast 2,500'
Viz
6sm
Wind
150° 6kts
PAOT 200900Z 2009/2106 26007KT P6SM OVC003
FM201500 20006KT 2SM BR VCSH OVC015
FM202300 15006KT P6SM OVC025
PABL
Domestic
5/19/24
1618Z
!BVK 05/042 BVK AD AP BIRD ACT INCREASED MIGRATORY 2405191618-2406201618
5/16/24
1128Z
!BVK 05/037 BVK SVC AUTOMATED WX BCST SYSTEM U/S 2405161128-2406161500EST
5/10/24
2000Z
!BVK 05/030 BVK RWY 11/29 SOFT DLY 2000-0800 2405102000-2405310800
5/9/24
1700Z
!BVK 05/026 BVK RWY 11/29 IRREGULAR SFC POTHOLES 2405091700-2406302359EST
ATC Tower
No
Attendance
UNATNDD
Owner
ALASKA DOT&PF NORTHERN REGION
2301 PEGER ROAD
FAIRBANKS, AK 99701
Phone: 907-451-2200
Manager
ALVIN WERNEKE
PO BOX 55
KOTZEBUE, AK 99752
Phone: 907-442-3147
FSS
KOTZEBUE FSS (OTZ)
Toll Free: 1-800-478-7460
NOTAM
BVK
Light Schedule
--
Lights
ACTVT MIRL RWY 11/29 - CTAF. VASI RWY 11 & 29 OPER CONTINUOUSLY.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
None
Int'l Operations
No
# Single Engine
1
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 11/29
Dimensions
3200 ft. x 75 ft.
Surface Type
GRAVEL
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 11
Runway 29
True Heading
122°
302°
Traffic Pattern
Markings
Markings Condition
Latitude
65° 59' 02"N
65° 58' 45"N
Longitude
161° 09' 30"W
161° 08' 24"W
Elevation
27'
29'
Threshold Crossing Height
25 ft. AGL
29 ft. AGL
Visual Glide Path Angle
3°
3.5°
Visual Slope Indicator
V4R
V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
RWY SUBJECT TO TURBULENT CROSSWINDS IN SUMMER MONTHS.
A110-2
RY COND NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-4
MIGRATORY WATERFOWL INVOF ARPT SPRING THROUGH FALL.
A110-5
WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
BUCKLAND (ICAO: PABL, IATA: BVK) is a public airport located in BUCKLAND, AK.
