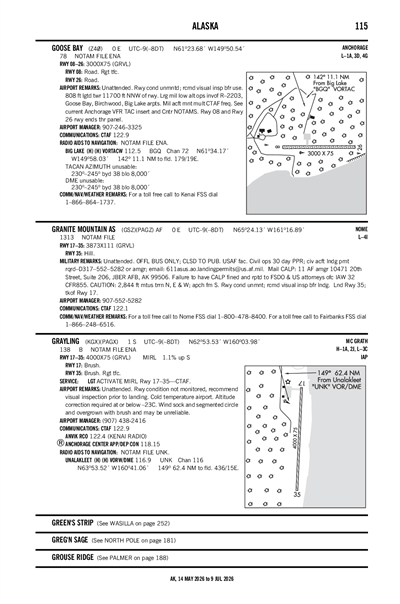

GRANITE MOUNTAIN AS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAGZ
GRANITE MOUNTAIN AS
PrivatePVT

0 miles E of GRANITE MOUNTAIN, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
65° 24' 08"N 161° 16' 53"W
1313' MSL
2313' MSL
19E
None Listed
NOME (OME)
NOME
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAKK (28nm) VFR
2:56 AM AKDT
Overcast 3,700'
10sm
36°F
34°F
29.88"Hg
Calm
AO2 SLP127 T00220011 FZRANO
PAKK 201056Z AUTO 00000KT 10SM OVC037 02/01 A2988 RMK AO2 SLP127 T00220011 FZRANO
List Your Business

PAGZ FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PAGZ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAGZ Hotels

No hotels are listed for this airport.

PAGZ Restaurants

No restaurants are listed for this airport.

PAGZ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.1

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PAUN (92nm)
Sun, 5/19 9:50 PM AKDT
Sun, 5/19 10:00 PM AKDT - Mon, 5/20 10:00 PM AKDT
VFR
10:00 PM AKDT - 10:00 AM AKDT
Showers in vicinity
Overcast 3,500'
6sm
VRB° 5kts
VFR
10:00 AM AKDT - 10:00 PM AKDT
Broken 8,000'
Scattered 3,500'
6sm
120° 7kts
PAUN 200550Z 2006/2106 VRB05KT P6SM VCSH OVC035
   FM201800 12007KT P6SM SCT035 BKN080
PAGZ
No NOTAM Available
No
UNATNDD
USAF 611TH AIR SPPT GRP
20TH ST. SUITE 302
JBER, AK 99506
Phone: 907-552-3442
LAURA KEISER, REALTY OFFICER
20TH ST. SUITE 302
JBER, AK 99506
Phone: 907- 552-8757
NOME FSS (OME)
Toll Free: 1-800-478-8400
N/A
--
--
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 17/35

3873 ft. x 111 ft.

GRVL
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 181°1°
Traffic Pattern
Markings
Markings Condition
Latitude 65° 24' 27"N 65° 23' 49"N
Longitude 161° 16' 53"W 161° 16' 54"W
Elevation 1,312' 1,233'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2USAF INSTALLATION, ALL CIVIL ACFT OPERATORS MUST HAVE A CURRENT CIVIL AIRCRAFT LANDING PERMIT (CALP) BEFORE A PPR CAN BE ISSUED. IAW AIR FORCE INSTRUCTION 10-1001 (HTTP://STATIC.E-PUBLISHING.AF.MIL/PRODUCTION/1/AF_A3_5/PUBLICATION/AFI10-1001/AFI10-1001.PDF) AT LEAST 30 DAYS PRIOR TO FIRST INTENDED LANDING.
A110-3FAILURE TO OBTAIN AND HAVE ONBOARD APPROVED CALP WILL RESULT IN FINES LEVIED AGAINST VIOLATORS AND REPORTS FORWARDED TO THE FAA FSDO AND US ATTORNEY'S OFFICE IAW 32 CFR855 AND USAF OPERATING INSTRUCTIONS.
A110-5CAUTION: MOUNTAINOUS TERRAIN (2,844 FT) IN NORTH, EAST, AND WEST QUADRANTS. APPROACH FROM THE SOUTH. LAND RY 35 & TAKE-OFF RY 17 ONLY. RY DIMENSIONS: 3,871FT X 111FT. RY NOT MAINTAINED, CONDITION UNKN. RCMD VISUAL INSP PRIOR TO LNDG.
A110-8CONTACT 611 ASUS/LRAM AT DSN: 317-552-1448/4176 OR COM: 907-552-1448/4176 FOR CALPS. MAIL CALP APPLICATION TO: ATTN: 11 AF AIRFIELD MANAGER 10471 20TH STREET SUITE 231, JBER, AK 99506. CIVIL AIRCRAFT LANDING PERMIT (CALP) CONTACT NUMBERS DSN: 317-552-1448/4176 OR COM: (907) 552-1448/4176, E-MAIL: AKLANDINGPERMITS@US.AF.MIL.
GRANITE MOUNTAIN AS (ICAO: PAGZ, IATA: GSZ) is a private airport located in GRANITE MOUNTAIN, AK.
