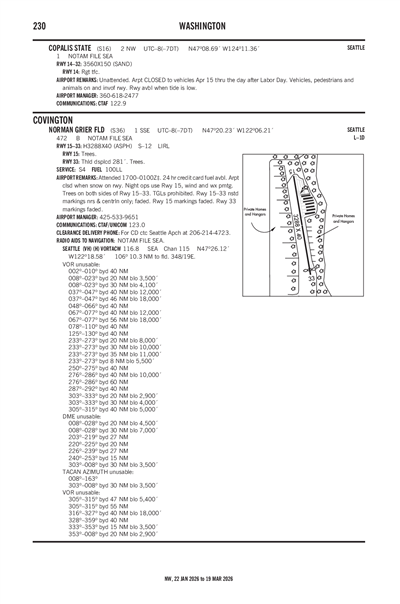

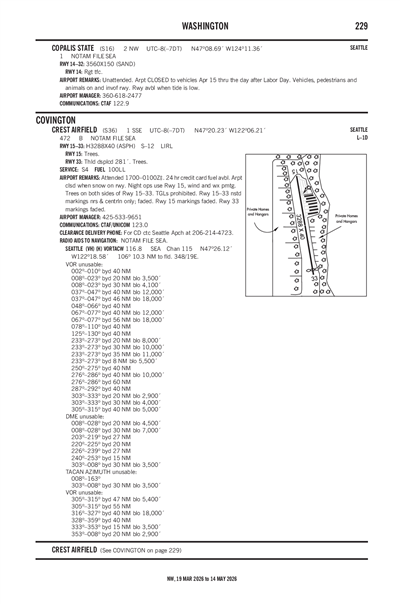

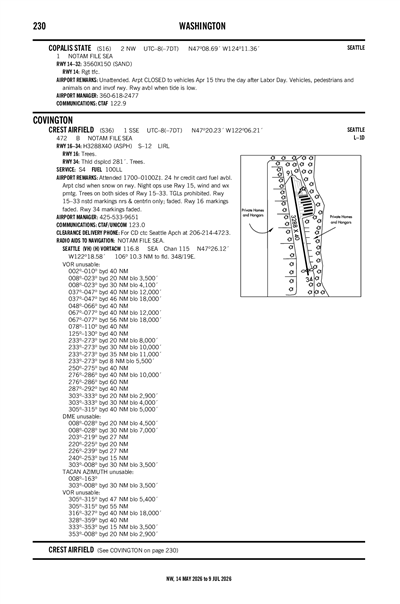

COPALIS STATE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

S16
COPALIS STATE
PublicPUB

2 miles NW of COPALIS, WA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 08' 41"N 124° 11' 21"W
1' MSL
1001' MSL
20E
None Listed
SEATTLE (SEA)
SEATTLE
SEATTLE (ZSE)
5/16/24-6/13/24
KHQM (15nm) VFR
3:53 AM PDT
Clear
10sm
45°F
44°F
30.28"Hg
Calm
AO2 SLP258 T00720067
KHQM 201053Z AUTO 00000KT 10SM CLR 07/07 A3028 RMK AO2 SLP258 T00720067
List Your Business

S16 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

S16 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

S16 Hotels

No hotels are listed for this airport.

S16 Restaurants

No restaurants are listed for this airport.

S16 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KHQM (15nm)
Sun, 5/19 10:25 PM PDT
Sun, 5/19 11:00 PM PDT - Mon, 5/20 11:00 PM PDT
VFR
11:00 PM PDT - 12:00 AM PDT
Scattered 2,000'
6sm
300° 7kts
MVFR
12:00 AM PDT - 4:00 AM PDT
Broken 2,000'
6sm
300° 5kts
MVFR
4:00 AM PDT - 11:00 AM PDT
Overcast 1,500'
6sm
290° 4kts
MVFR
11:00 AM PDT - 2:00 PM PDT
Overcast 3,000'
6sm
280° 8kts
VFR
2:00 PM PDT - 8:00 PM PDT
Overcast 5,000'
6sm
290° 13kts
Gusts 20kts
MVFR
8:00 PM PDT - 11:00 PM PDT
Overcast 2,000'
6sm
290° 9kts
KHQM 200525Z 2006/2106 30007KT P6SM SCT020
   FM200700 30005KT P6SM BKN020
   FM201100 29004KT P6SM OVC015
   FM201800 28008KT P6SM OVC030
   FM202100 29013G20KT P6SM OVC050
   FM210300 29009KT P6SM OVC020
S16
Domestic
5/7/242103Z !SEA 05/088 S16 OBST TOWER LGT (ASR 1221001) 472952.60N1240408.00W (22.0NM NNE S16) 1607.0FT (210.0FT AGL) U/S 2405072103-2409042103
4/16/241320Z !SEA 04/170 S16 OBST TOWER LGT (ASR 1211788) 470634.90N1240740.10W (3.3NM SE S16) 518.0FT (312.0FT AGL) U/S 2404161320-2408141320
No
UNATNDD
ARPT CLSD TO VEHICLES APRIL 15 THRU THE DAY AFTER LABOR DAY.
WSDOT AVIATION DIVISION
7702 TERMINAL STREET SW
TUMWATER, WA 98501-7264
Phone: (800) 552-0666
G. PAUL WOLF
7702 TERMINAL STREET SW
TUMWATER, WA 98501-7264
Phone: (360) 618-2477
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
SEA
--
--
N/A
Yes
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 14/32

3560 ft. x 150 ft.
SAND
Fair
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading 162°342°
Traffic Pattern Right
Markings
Markings Condition
Latitude 47° 08' 58"N 47° 08' 25"N
Longitude 124° 11' 29"W 124° 11' 13"W
Elevation 1' 1'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY AVBL WHEN TIDE IS LOW.
A110-3VEHICLES, PEDESTRIANS & ANIMALS ON & INVOF RY.
A110-4RIVER COURSE CHANGE MAY ALTER RY LENGTH.
A110-5STREAM CROSSING 1500 FT SOUTH OF RY 14 END.
A110-6CTC WA STATE AVIATION DIVISION 360-709-8015 OR 1-800-552-0666 WA AREA FOR FACILITY INFO PRIOR TO USE.
A110-7FOR ACFT ACCIDENTS/INCIDENTS CTC WA STATE EMERGENCY OPERATIONS CENTER 800-258-5990.
A110-8FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A110-9NO MIL USE EXC EMERG.
COPALIS STATE (IATA: S16) is a public airport located in COPALIS, WA.
