iFlightPlanner



...

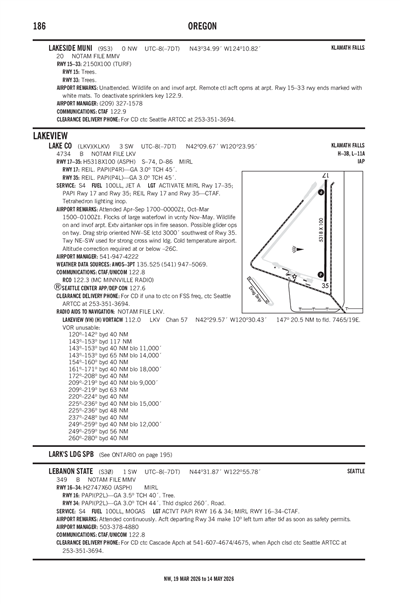

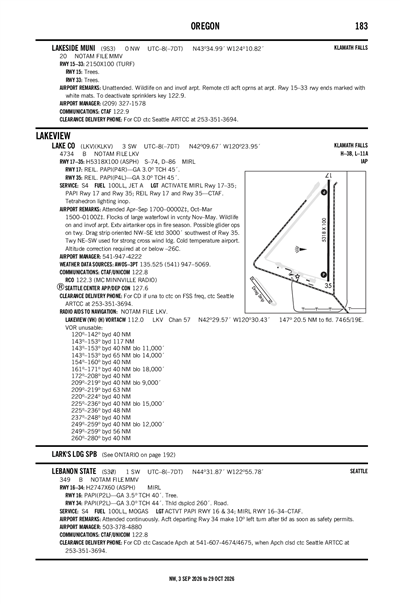

LEBANON STATE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

S30
LEBANON STATE
PublicPUB

1 miles SW of LEBANON, OR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 31' 52"N 122° 55' 47"W
348' MSL
1348' MSL
19E
100LL, MOGAS
MC MINNVILLE (MMV)
SEATTLE
SEATTLE (ZSE)
4/18/24-5/16/24
KS12 (9nm) LIFR
3:15 AM PDT
Light Rain and Mist
Overcast 400'
2sm
46°F
46°F
29.93"Hg
VRB° 3kts
AO2 CAUTION: LARGE BIRDS IN VICINITY OF AIRPORT
KS12 021015Z VRB03KT 2SM -RA BR OVC004 08/08 A2993 RMK AO2 CAUTION: LARGE BIRDS IN VICINITY OF AIRPORT
List Your Business

S30 FBOs, Flight Schools and Ground Support

Promote Listing
LebanAir Aviation
Freq: 122.8
Phone: (541) 258-5029
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/1
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.75 6.25
Full Serve

S30 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

S30 Hotels

No hotels are listed for this airport.

S30 Restaurants

No restaurants are listed for this airport.

S30 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KSLE (23nm)
Thu, 5/2 12:34 AM PDT
Thu, 5/2 1:00 AM PDT - Thu, 5/2 11:00 PM PDT
MVFR
1:00 AM PDT - 4:00 AM PDT
Light Rain
Overcast 4,500'
Broken 1,500'
6sm
150° 5kts
MVFR
4:00 AM PDT - 1:00 PM PDT
Light Rain and Mist
Overcast 1,500'
Scattered 700'
6sm
010° 5kts
IFR
Temporary 4:00 AM PDT - 7:00 AM PDT
Broken 700'
N/A
Calm
VFR
1:00 PM PDT - 11:00 PM PDT
Light Drizzle
Broken 3,500'
6sm
200° 4kts
KSLE 020734Z 0208/0306 15005KT P6SM -RA BKN015 OVC045
   FM021100 01005KT 6SM -RA BR SCT007 OVC015
   TEMPO 0211/0214 BKN007
   FM022000 20004KT P6SM -DZ BKN035
S30
Domestic
12/18/232323Z !MMV 12/097 S30 RWY 16 PAPI U/S 2312182323-2406012359
No
ALL
OREGON DEPARTMENT OF AVIATION
3040 25TH ST SE
SALEM, OR 97302-1125
Phone: 503-378-4880
STATE AIRPORTS MANAGER
3040 25TH ST SE
SALEM, OR 97302-1125
Phone: 503-378-4880
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
MMV
--
ACTVT PAPI RWY 16 & 34; MIRL 16/34 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
42
0
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 16/34

2747 ft. x 60 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 16 Runway 34
True Heading 180°360°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 44° 32' 06"N 44° 31' 39"N
Longitude 122° 55' 47"W 122° 55' 47"W
Elevation 346' 348'
Threshold Crossing Height 40 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ACFT DEPT RWY 34 MAKE 10 DEGS LEFT TURN AFTER TKOF AS SOON AS SAFETY PERMITS.
A110-4FOR CD CTC CASCADE APCH AT 541-607-4674/4675, WHEN APCH CLSD CTC SEATTLE ARTCC AT 253-351-3694.
LEBANON STATE (IATA: S30) is a public airport located in LEBANON, OR.
