01J
HILLIARD AIRPARK
PublicPUB

1 miles E of HILLIARD, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 41' 09"N 81° 54' 23"W
59' MSL
1059' MSL
03W
100LL
GAINESVILLE (GNV)
JACKSONVILLE
JACKSONVILLE (ZJX)
4/18/24-5/16/24
KJAX (16nm) VFR
4:56 PM EDT
Scattered 5,500'
10sm
90°F
62°F
29.97"Hg
320° 4kts
AO2 SLP149 T03220167 56016
KJAX 192056Z 32004KT 10SM SCT055 32/17 A2997 RMK AO2 SLP149 T03220167 56016
List Your Business

01J FBOs, Flight Schools and Ground Support

Promote Listing
Hilliard Aviation
Freq: 122.9
Phone: (904) 923-0482
Other: (904) 583-6159
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 4/18
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.69
Full Serve

01J Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

01J Hotels

No hotels are listed for this airport.

01J Restaurants

No restaurants are listed for this airport.

01J Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

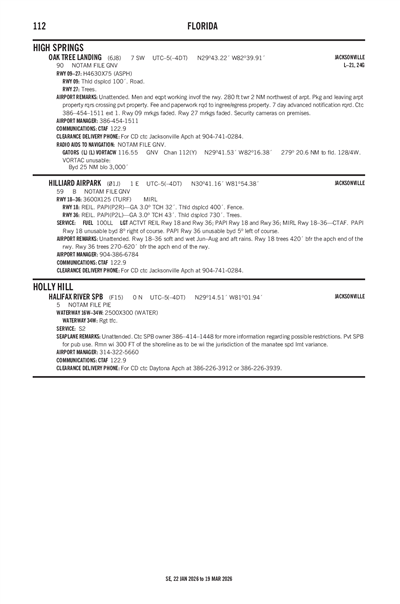

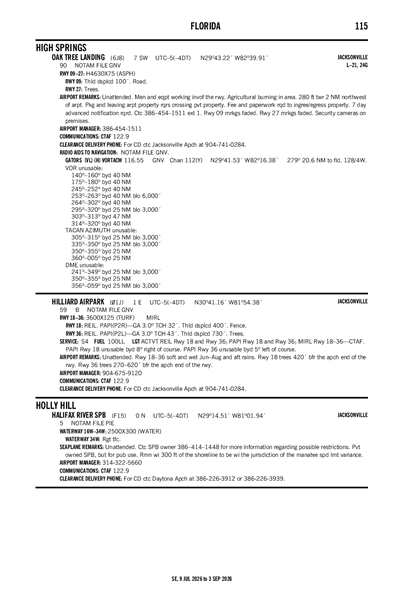

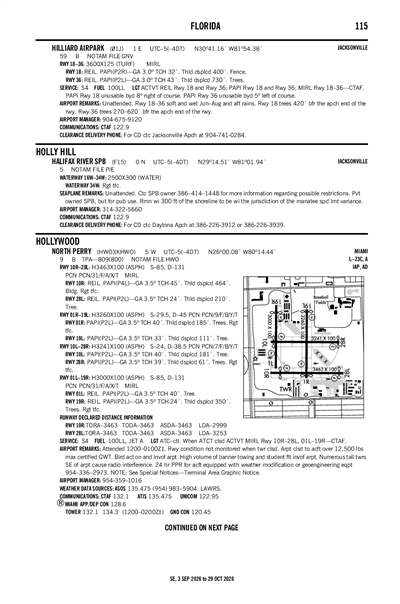

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KJAX (16nm)
Fri, 4/19 1:20 PM EDT
Fri, 4/19 2:00 PM EDT - Sat, 4/20 2:00 PM EDT
VFR
2:00 PM EDT - 6:00 PM EDT
Broken 25,000'
Scattered 5,000'
6sm
270° 8kts
VFR
6:00 PM EDT - 10:00 PM EDT
Broken 25,000'
Few 6,000'
6sm
120° 10kts
VFR
10:00 PM EDT - 10:00 AM EDT
Few 25,000'
6sm
VRB° 3kts
VFR
10:00 AM EDT - 2:00 PM EDT
Scattered 25,000'
Scattered 5,000'
6sm
260° 6kts
KJAX 191720Z 1918/2018 27008KT P6SM SCT050 BKN250
   FM192200 12010KT P6SM FEW060 BKN250
   FM200200 VRB03KT P6SM FEW250
   FM201400 26006KT P6SM SCT050 SCT250
01J
Domestic
4/10/241636Z !GNV 04/144 01J OBST TOWER LGT (ASR 1247774) 304939.80N0814426.40W (12.2NM NE 01J) 1421.9FT (1399.9FT AGL) U/S 2404101636-2405312359
4/1/240417Z !GNV 04/001 01J OBST TOWER LGT (ASR 1318932) 304118.08N0815503.23W (0.6NM WNW 01J) 262FT (199FT AGL) U/S 2404010417-2405012300
2/27/242336Z !GNV 02/336 01J OBST TOWER LGT (ASR 1027315) 304917.00N0814413.00W (12.1NM NE 01J) 1509.8FT (1501.0FT AGL) U/S 2402272336-2406262336
2/21/242325Z !GNV 02/250 01J OBST TOWER LGT (ASR 1001538) 304913.30N0814100.10W (14.3NM NE 01J) 286.1FT (265.1FT AGL) U/S 2402212325-2405210500
No
UNATNDD
TOWN OF HILLIARD
PO BOX 249
HILLIARD, FL 32046
Phone: 904-845-3555
MICHAEL SWAIN
37792 EASTWOOD RD
HILLIARD, FL 32406
Phone: 904-675-9120
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
GNV
--
ACTVT REIL RWY 18 & 36; PAPI RWY 18 & 36 ; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
25
0
0
0
0
0
Minor
Minor
None
None
None

Runway 18/36

3600 ft. x 125 ft.
TURF
Fair
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 30° 41' 27"N 30° 40' 52"N
Longitude 81° 54' 23"W 81° 54' 22"W
Elevation 54' 51'
Threshold Crossing Height 32 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-3FOR CD CTC JACKSONVILLE APCH AT 904-741-0284.
A110-4UNLGTD OBSTNS PRSNT IN THE APCH OF RWY 18 DUE TO TREES 420 FT BFR THE APCH END OF THE RWY.
HILLIARD AIRPARK (IATA: 01J) is a public airport located in HILLIARD, FL.
