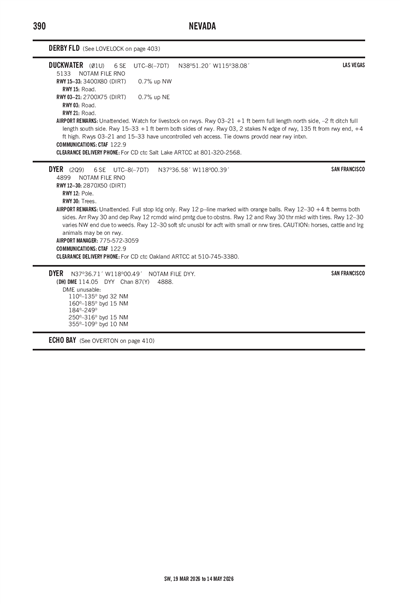

DUCKWATER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

01U
Local 01U
DUCKWATER
PublicPUB

6 miles SE of DUCKWATER, NV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 51' 12"N 115° 38' 05"W
Elevation
5133' MSL
Pattern Alt
6133' MSL
Mag Variation
12°E
Declination
15°E
Fuel
None Listed
FSS
RENO (RNO)
Sectional
LAS VEGAS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
4/16/26-5/14/26
KELY (46nm) VFR
5:24 PM PDT
Overcast 10,000'
Few 7,500'
Few 6,000'
10sm
58°F
16°F
29.79"Hg
Calm
AO2 PK WND 23031/0014 WSHFT 0004 T01441089
SPECI KELY 250024Z AUTO 10SM FEW060 FEW075 OVC100 14/M09 A2979 RMK AO2 PK WND 23031/0014 WSHFT 0004 T01441089
+ Add Your Business

01U FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KELY (46nm)
Fri, 4/24 4:20 PM PDT
Fri, 4/24 5:00 PM PDT - Sat, 4/25 5:00 PM PDT
VFR
5:00 PM PDT - 7:00 PM PDT
Broken 25,000'
6sm
260° 10kts
Gusts 19kts
VFR
7:00 PM PDT - 5:00 AM PDT
Scattered 15,000'
Few 8,000'
6sm
010° 7kts
VFR
5:00 AM PDT - 11:00 AM PDT
Scattered 6,000'
6sm
180° 7kts
VFR
11:00 AM PDT - 5:00 PM PDT
Broken 6,000'
6sm
200° 8kts
TAF KELY 242320Z 2500/2524 26010G19KT P6SM BKN250
   FM250200 01007KT P6SM FEW080 SCT150
   FM251200 18007KT P6SM SCT060
   FM251800 20008KT P6SM BKN060
01U
No NOTAM Available
No
UNATNDD
US BLM
5665 MORGAN MILL ROAD
CARSON CITY, NV 89701
Phone: 775-885-6162
UNKNOWN

RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
--
--
N/A
No
No
No
Tie-Down
No
None
None
None
None
None

Runway 03/21

2700 ft. x 75 ft.
DIRT
Fair
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 42°222°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 38° 50' 56"N 38° 51' 16"N
Longitude 115° 38' 09"W 115° 37' 46"W
Elevation 5,105' 5,124'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

3400 ft. x 80 ft.
DIRT
Fair
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 168°348°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 38° 51' 33"N 38° 50' 60"N
Longitude 115° 38' 15"W 115° 38' 06"W
Elevation 5,133' 5,108'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WATCH FOR LIVESTOCK ON RWYS.
A110-5RYS 03/21 & 15/33 HAVE UNCONTROLLED VEH ACCESS.
A110-6RY 03/21 +1 FT BERM FULL LENGTH NORTH SIDE, -2 FT DITCH FULL LENGTH SOUTH SIDE.
A110-7RY 15/33 +1 FT BERM BOTH SIDES OF RY.
A110-8RY 3, 2 STAKES N EDGE OF RY, 135 FT FROM RY END, +4 FT HIGH.
A110-9FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A52-03PLINE 400 FT FROM RY END, +20 FT, BOTH SIDES OF CNTRLN, MARKED W/ORANGE BALL, 20:1 SLOPE.
A52-1511PLINE 1500 FT FROM RY END 35 FT, BOTH SIDES OF CNTRLN, MKD W/ ORANGE BALL, 42:1 SLOPE.
A75-TTIE DOWNS PROVDD NEAR RWY INTXN.
E111ESTABD PRIOR TO MAY 1959.
DUCKWATER (IATA: 01U) is a public airport located in DUCKWATER, NV, US.
