03B
MANSFIELD MUNI
PublicPUB

2 miles NW of MANSFIELD, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 07' 36"N 92° 37' 18"W
1520' MSL
2520' MSL
03E
None Listed
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
4/18/24-5/16/24
KLBO (31nm) VFR
1:55 PM CDT
Broken 12,000'
Scattered 9,500'
10sm
63°F
57°F
29.74"Hg
310° 4kts
AO2 LTG DSNT S AND SW
KLBO 261855Z AUTO 31004KT 10SM SCT095 BKN120 17/14 A2974 RMK AO2 LTG DSNT S AND SW
List Your Business

03B FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

03B Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

03B Hotels

No hotels are listed for this airport.

03B Restaurants

No restaurants are listed for this airport.

03B Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

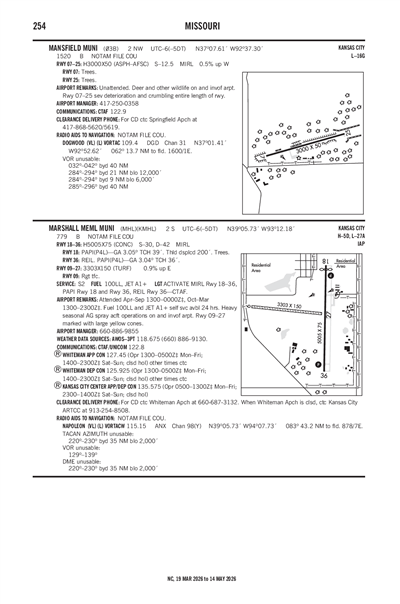

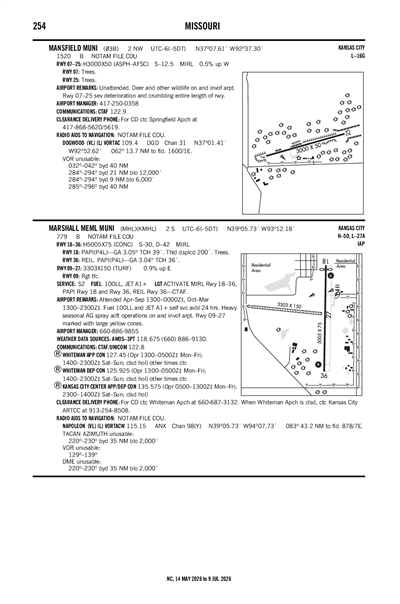

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KSGF (38nm)
Fri, 4/26 12:38 PM CDT
Fri, 4/26 1:00 PM CDT - Sat, 4/27 1:00 PM CDT
VFR
1:00 PM CDT - 3:00 PM CDT
Overcast 9,000'
Scattered 3,000'
6sm
170° 23kts
Gusts 35kts
MVFR
3:00 PM CDT - 7:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 3,000'
Broken 1,300'
4sm
170° 21kts
Gusts 33kts
IFR
Temporary 4:00 PM CDT - 7:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 900'
1sm
Calm
MVFR
7:00 PM CDT - 11:00 PM CDT
Light Showers and Rain
Broken 3,500'
4sm
180° 20kts
Gusts 32kts
IFR
7:00 PM CDT - 11:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 7,000'
Broken 1,500'
2sm
Calm
MVFR
11:00 PM CDT - 8:00 AM CDT
Broken 2,500'
6sm
180° 20kts
Gusts 30kts
MVFR
8:00 AM CDT - 12:00 PM CDT
Broken 2,600'
6sm
180° 17kts
Gusts 25kts
VFR
12:00 PM CDT - 1:00 PM CDT
Broken 3,500'
6sm
190° 19kts
Gusts 29kts
KSGF 261738Z 2618/2718 17023G35KT P6SM SCT030 OVC090
   FM262000 17021G33KT 4SM TSRA BR BKN013 OVC030CB
   TEMPO 2621/2624 1SM TSRA BR OVC009CB
   FM270000 18020G32KT 4SM -SHRA BKN035
   PROB30 2700/2704 2SM TSRA BR BKN015 OVC070CB
   FM270400 18020G30KT P6SM BKN025
   FM271300 18017G25KT P6SM BKN026
   FM271700 19019G29KT P6SM BKN035
03B
Domestic
4/26/240448Z !COU 04/365 03B OBST TOWER LGT (ASR 1253747) 371407.20N0923046.70W (8.4NM NE 03B) 1627.6FT (304.8FT AGL) U/S 2404260448-2405110348
4/11/241141Z !COU 04/157 03B OBST LGT (ASR 1307255) 370340N0923632W (4.0NM S 03B) 1725FT (347FT AGL) U/S 2404111141-2405112300
4/11/241122Z !COU 04/155 03B OBST TOWER LGT (ASR 1306830) 370656N0922912W (6.5NM E 03B) 1822FT (317FT AGL) U/S 2404111122-2405112300
4/10/241117Z !COU 04/134 03B OBST TOWER LGT (ASR 1307254) 370650.10N0923409.40W (2.6NM ESE 03B) 1707FT (282FT AGL) U/S 2404101117-2405102300
3/22/240821Z !COU 03/327 03B OBST TOWER LGT (ASN 2018-ACE-1590-OE) 370650N0923409W (2.6NM ESE 03B) 1707FT (282FT AGL) U/S 2403220821-2405060815
3/22/240818Z !COU 03/326 03B OBST TOWER LGT (ASN 2018-ACE-1591-OE) 370340N0923632W (4.0NM S 03B) 1725FT (347FT AGL) U/S 2403220818-2405060815
3/22/240812Z !COU 03/324 03B OBST TOWER LGT (ASN 2018-ACE-1521-OE) 370656N0922912W (6.5NM E 03B) 1822FT (317FT AGL) U/S 2403220812-2405060800
No
UNATNDD
MANSFIELD, CITY OF
122 N. BUS. 60, P.O. BOX 467
MANSFIELD, MO 65704
Phone: 417-924-3719
TERESA CLARK
1588 HWY F
MANSFIELD, MO 65704
Phone: 417-924-2782
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
12
0
0
0
0
0
None
None
None
None
None

Runway 07/25

3000 ft. x 50 ft.
ASPH
L
AFSC
MED

12,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 78°258°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 37° 07' 33"N 37° 07' 40"N
Longitude 92° 37' 36"W 92° 36' 60"W
Elevation 1,520' 1,505'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER & OTHER WILDLIFE ON & INVOF ARPT.
A110-2FOR CD CTC SPRINGFIELD APCH AT 417-868-5620/5619.
MANSFIELD MUNI (IATA: 03B) is a public airport located in MANSFIELD, MO.
