NEW TOWN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

05D
NEW TOWN MUNI
PublicPUB

1 miles SE of NEW TOWN, ND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 58' 04"N 102° 28' 41"W
1924' MSL
2924' MSL
07E
None Listed
GRAND FORKS (GFK)
BILLINGS
MINNEAPOLIS (ZMP)
11/27/25-12/25/25
KMOT (52nm) VFR
9:54 AM CST
Clear
10sm
10°F
2°F
30.04"Hg
150° 16kts
Gusts 22kts
AO2 SLP220 T11221167
METAR KMOT 141554Z 15016G22KT 10SM CLR M12/M17 A3004 RMK AO2 SLP220 T11221167
+ Add Your Business

05D FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

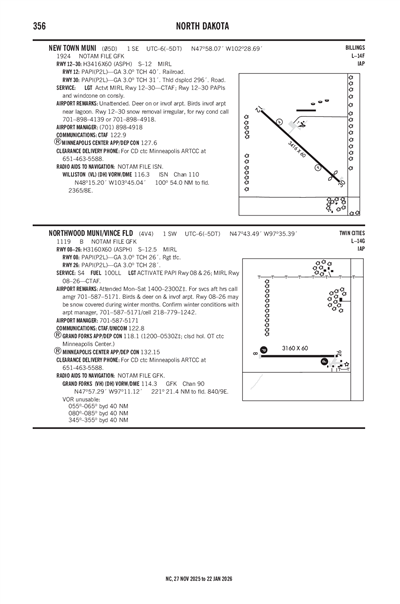

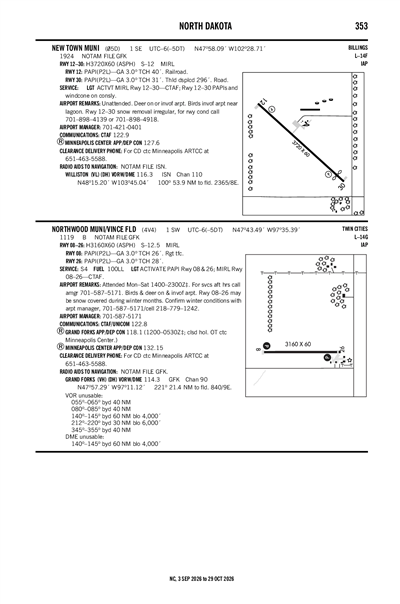

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMOT (52nm)
Sun, 12/14 5:27 AM CST
Sun, 12/14 6:00 AM CST - Mon, 12/15 6:00 AM CST
VFR
6:00 AM CST - 9:00 AM CST
Broken 7,000'
6sm
160° 15kts
VFR
9:00 AM CST - 11:00 AM CST
Broken 19,000'
6sm
170° 18kts
Gusts 29kts
VFR
11:00 AM CST - 3:00 PM CST
Scattered 23,000'
6sm
190° 18kts
Gusts 30kts
VFR
3:00 PM CST - 5:00 PM CST
Scattered 24,000'
6sm
210° 13kts
Gusts 22kts
VFR
5:00 PM CST - 10:00 PM CST
Broken 23,000'
6sm
230° 11kts
Gusts 19kts
VFR
10:00 PM CST - 6:00 AM CST
Scattered 24,000'
6sm
270° 11kts
TAF KMOT 141127Z 1412/1512 16015KT P6SM BKN070 WS020/19040KT
   FM141500 17018G29KT P6SM BKN190 WS020/20045KT
   FM141700 19018G30KT P6SM SCT230
   FM142100 21013G22KT P6SM SCT240 WS020/28035KT
   FM142300 23011G19KT P6SM BKN230
   FM150400 27011KT P6SM SCT240
05D
EffectiveExpiresCategoryNOTAM
Domestic
12/1/25
0632Z
12/15/25
2359Z
!GFK 12/004 05D OBST TOWER LGT (ASR 1296526) 475001.20N1023033.00W (8.2NM S 05D) 2419.0FT (258.9FT AGL) U/S 2512010632-2512152359
12/1/25
0618Z
12/16/25
0518Z
!GFK 12/002 05D OBST TOWER LGT (ASR 1296527) 475421.60N1023145.60W (4.2NM SSW 05D) 2353.0FT (256.9FT AGL) U/S 2512010618-2512160518
9/17/25
1449Z
12/31/25
2359Z
Runway!GFK 09/154 05D RWY 12/30 NOW 3716FT X 60FT. DECLARED DIST: RWY 12 TORA 3716FT TODA 3716FT ASDA 1858FT LDA 3716FT.
RWY 30 TORA 3716FT TODA 3716FT ASDA 1858FT LDA 3476FT. 2509171449-2512312359
FDC
6/17/25
0100Z
1/26/26
2359Z
!FDC 5/5471 05D IAP NEW TOWN MUNI, NEW TOWN, ND...RNAV (GPS) RWY 12
ORIG PROCEDURE NA UFN

REASON: RWY CONSTRUCTION

2506170100-2601262359
No
UNATNDD
NEW TOWN ARPT AUTH
6031 16TH AVE SW
MINOT, ND 58701
Phone: (701) 898-4918
MYLO WOLDING
3490 92ND AVE NW
NEW TOWN, ND 58763
Phone: (701) 898-4918
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT MIRL RWY 12/30 - CTAF; RWY 12/30 PAPIS & WINDCONE ON CONSLY.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

3416 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 132°312°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 58' 16"N 47° 57' 53"N
Longitude 102° 28' 60"W 102° 28' 23"W
Elevation 1,918' 1,923'
Threshold Crossing Height 40 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY 12/30 SN REMOVAL IREG; FOR RWY COND CALL 701-898-4139 OR 701-898-4918.
A110-3BIRDS INVOF ARPT NEAR LAGOON.
A110-6DEER ON OR INVOF ARPT.
A110-7FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
NEW TOWN MUNI (IATA: 05D) is a public airport located in NEW TOWN, ND.
