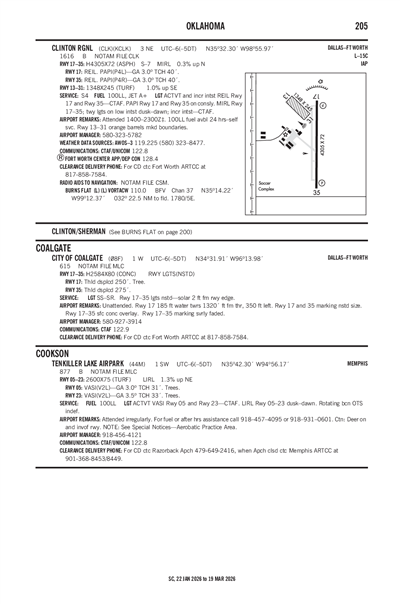

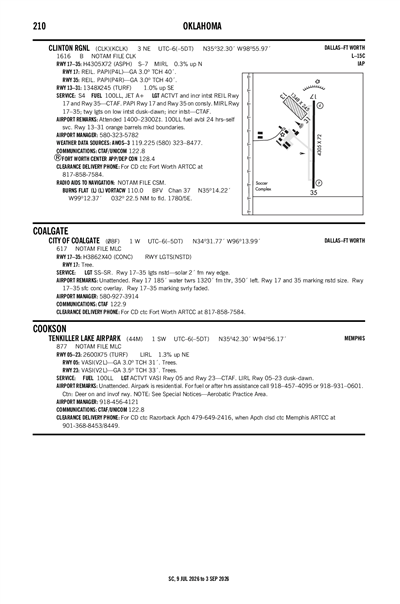

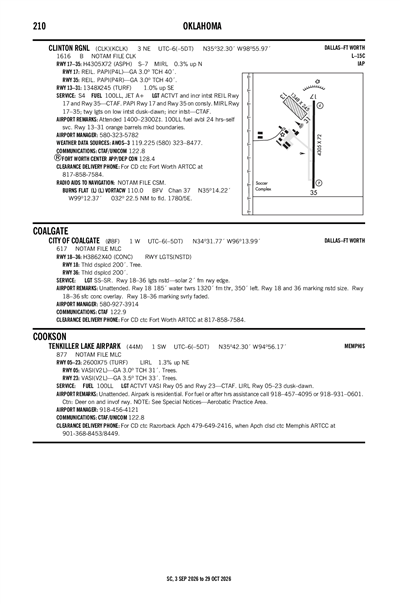

CITY OF COALGATE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

08F
Local 08F
CITY OF COALGATE
PublicPUB

1 miles W of COALGATE, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 31' 46"N 96° 13' 59"W
Elevation
617' MSL
Pattern Alt
1617' MSL
Mag Variation
2°E
Declination
6°E
Fuel
None Listed
FSS
MC ALESTER (MLC)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
4/16/26-5/14/26
KADH (27nm) VFR
4:35 PM CDT
Thunderstorm in vicinity
Scattered 10,000'
Scattered 7,500'
Few 5,000'
10sm
66°F
66°F
29.68"Hg
020° 11kts
AO2 PK WND 03028/50 LTG DSNT ALQDS
METAR KADH 242135Z AUTO 02011KT 10SM VCTS FEW050 SCT075 SCT100 19/19 A2968 RMK AO2 PK WND 03028/50 LTG DSNT ALQDS
+ Add Your Business

08F FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KMLC (31nm)
Fri, 4/24 12:35 PM CDT
Fri, 4/24 1:00 PM CDT - Sat, 4/25 1:00 PM CDT
MVFR
1:00 PM CDT - 4:00 PM CDT
Broken 1,500'
6sm
VRB° 5kts
MVFR
1:00 PM CDT - 4:00 PM CDT
Light Thunderstorm and Rain
Broken 2,500'
N/A
Calm
VFR
4:00 PM CDT - 9:00 PM CDT
Scattered 18,000'
Scattered 2,500'
6sm
030° 7kts
MVFR
6:00 PM CDT - 9:00 PM CDT
Thunderstorm and Rain
Broken 1,500'
3sm
VRB° 15kts
Gusts 40kts
VFR
9:00 PM CDT - 1:00 AM CDT
Scattered 2,500'
6sm
050° 5kts
MVFR
1:00 AM CDT - 1:00 PM CDT
Broken 1,000'
6sm
050° 5kts
TAF KMLC 241735Z 2418/2518 VRB05KT P6SM BKN015
   PROB30 2418/2421 -TSRA BKN025CB
   FM242100 03007KT P6SM SCT025 SCT180
   PROB30 2423/2502 VRB15G40KT 3SM TSRA BKN015CB
   FM250200 05005KT P6SM SCT025
   FM250600 05005KT P6SM BKN010
08F
EffectiveExpiresCategoryNOTAM
Domestic
4/22/26
1813Z
6/22/26
2359Z
!MLC 04/343 08F OBST TOWER LGT (ASR 1233929) 343403.00N0955957.00W (11.8NM E 08F) 1190.9FT (419.9FT AGL) U/S 2604221813-2606222359
7/22/17
1935Z
Runway!MLC 07/360 08F RWY 17/35 CHANGED TO RWY 18/36 3900FT X 40FT CONC 1707221935-PERM
No
UNATNDD
CITY OF COALGATE
3 SOUTH MAIN
COALGATE, OK 74538
Phone: 580-927-3914
AARON BLUE
1000 MCANALLY RD.
COALGATE, OK 74538
Phone: 580-927-3914
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
None
No
None
None
None
None
None

Runway 17/35

3862 ft. x 40 ft.
CONC
Good
NONE
NSTD

--
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition POOR POOR
Latitude 34° 32' 05"N 34° 31' 27"N
Longitude 96° 13' 59"W 96° 13' 59"W
Elevation 617' 614'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A30A-17185 FT WATER TWRS 1320 FT FM THR, 350 FT LEFT.
A33-17/35_SURFCONC OVERLAY.
A40-17/35LGTS NSTD - SOLAR 2 FT FM RWY EDGE.
A42-17_CONDSVRLY FADED.
A42-17_MARKNSTD SIZE.
A42-35_CONDSVRLY FADED.
A42-35_MARKNSTD SIZE.
A58-175 FT FENCE 20 FT FM RWY THR; 15 FT ROAD 42 FT FM RWY THR.
A58-354 FT FENCE 45 FT FM THR.
E111VFR OPS ONLY.
CITY OF COALGATE (IATA: 08F) is a public airport located in COALGATE, OK, US.
