09A
Local 09A
BUTLER/CHOCTAW COUNTY
PublicPUB

5 miles NE of BUTLER, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 07' 09"N 88° 07' 39"W
Elevation
134' MSL
Pattern Alt
1134' MSL
Mag Variation
3°W
Declination
3°W
Fuel
None Listed
FSS
ANNISTON (ANB)
Sectional
MEMPHIS
ARTCC
ATLANTA (ZTL)
Data Effective
8/6/26-9/3/26
KDYA (23nm) VFR
11:35 AM CDT
Clear
7sm
96°F
74°F
30.06"Hg
250° 3kts
AO2 T03530234
METAR KDYA 171635Z AUTO 25003KT 7SM CLR 35/23 A3006 RMK AO2 T03530234
+ Add Your Business

09A FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT PAPI RWY 30; MIRL RWY 12/30 - CTAF.
UNICOM 122.8

Approach

MERIDIAN APPROACH 121.275

Departure

MERIDIAN DEPARTURE 121.275

Center

MERIDIAN CENTER 120.55
LOW, APCH/DEP SVC PRVDD BY ATLANTA ARTCC ON FREQS 120.55/270.25 (MONTGOMERY RCAG) WHEN MERIDIAN APCH CTL CLSD.

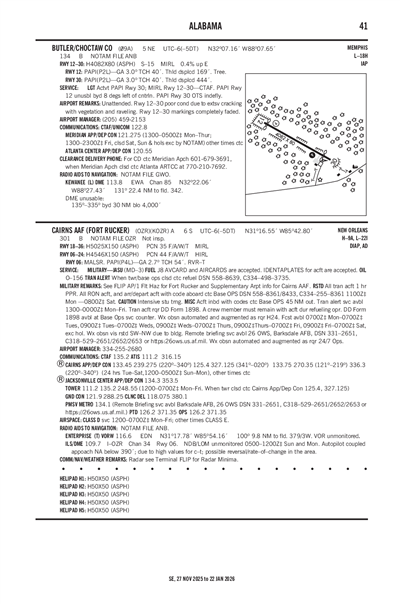

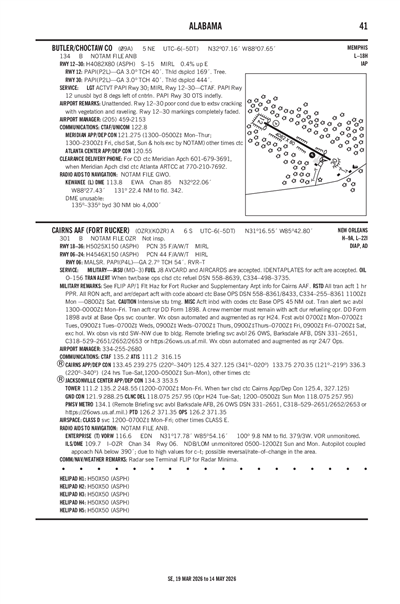

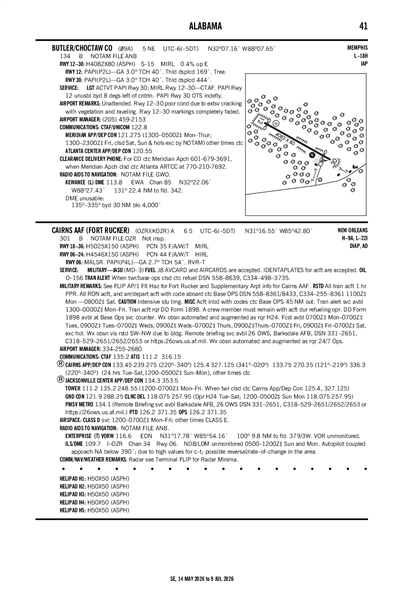

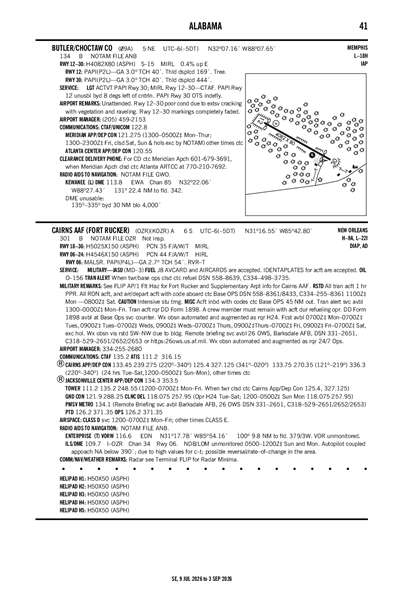

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KNMM (33nm)
Mon, 8/17 9:00 AM CDT
Mon, 8/17 10:00 AM CDT - Tue, 8/18 10:00 AM CDT
VFR
10:00 AM CDT - 11:00 AM CDT
Few 8,500'
6sm
30.03"Hg
290° 7kts
Gusts 15kts
VFR
Becoming 11:00 AM CDT - 8:00 PM CDT
Thunderstorm in vicinity
Scattered 8,500'
Scattered 4,500'
6sm
29.91"Hg
290° 9kts
LIFR
Temporary 2:00 PM CDT - 8:00 PM CDT
Thunderstorm and Rain
Broken 2,500'
0.99sm
Calm
VFR
8:00 PM CDT - 10:00 AM CDT
Scattered 20,000'
Scattered 4,000'
6sm
29.91"Hg
VRB° 5kts
TAF KNMM 171400Z 1715/1815 29007G15KT 9999 FEW085 QNH3003INS
   BECMG 1716/1718 29009KT 9999 VCTS SCT045 SCT085 QNH2990INS
   TEMPO 1719/1801 1600 TSRA BKN025CB
   FM180100 VRB05KT 9999 SCT040 SCT200 QNH2992INS TX38/1721Z TN25/1810Z FN20088
09A
EffectiveExpiresCategoryNOTAM
Domestic
8/16/26
1826Z
9/30/26
1826Z
!ANB 08/400 09A OBST TOWER LGT (ASR 1309995) 315201.78N0881940.63W (18.4NM SW 09A) 438FT (265FT AGL) U/S 2608161826-2609301826
7/31/26
2136Z
9/14/26
2136Z
!ANB 07/878 09A OBST TOWER LGT (ASR 1286028) 321441.70N0882427.30W (16.0NM WNW 09A) 595.5FT (290.0FT AGL) U/S 2607312136-2609142136
7/25/26
1625Z
10/25/26
2359Z
!ANB 07/715 09A OBST TOWER LGT (ASR 1236895) 320527.50N0881357.10W (5.7NM WSW 09A) 544.9FT (419.9FT AGL) U/S 2607251625-2610252359
6/20/26
0139Z
10/18/26
0139Z
!ANB 06/795 09A OBST TOWER LGT (ASR 1273417) 321836.70N0881041.20W (11.7NM NNW 09A) 506.9FT (310.0FT AGL) U/S 2606200139-2610180139
6/16/26
1708Z
10/14/26
1708Z
!ANB 06/610 09A OBST TOWER LGT (ASR 1275146) 315801.20N0881658.50W (12.2NM SW 09A) 624.0FT (306.1FT AGL) U/S 2606161708-2610141708
5/19/26
1541Z
Runway!ANB 05/506 09A RWY 12 PAPI UNUSABLE 2605191541-2611192111EST
FDC
1/12/26
1621Z
!FDC 6/2389 09A IAP BUTLER/CHOCTAW COUNTY, BUTLER, AL.
RNAV (GPS) RWY 30, AMDT 1...
LPV HAT 320 ALL CATS
LNAV/VNAV 310 CALL CATS
LNAV HAT 450 ALL CATS.
TDZE CHANGED FROM 134 TO 130.
2601121621-2801121621EST
No
UNATNDD
CHOCTAW COUNTY
117 SOUTH MULBERRY/SUITE 9
BUTLER, AL 36904
Phone: 205-459-2100
TYLER DAVIDSON
117 SOUTH MULBERRY SUITE 12
BUTLER, AL 36904
Phone: (205) 459-2153
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT PAPI RWY 30; MIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

4082 ft. x 80 ft.
ASPH
Poor
NONE
MED

15,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 116°296°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition POOR POOR
Latitude 32° 07' 18"N 32° 07' 01"N
Longitude 88° 08' 00"W 88° 07' 17"W
Elevation 116' 134'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC MERIDIAN APCH 601-679-3691, WHEN MERIDIAN APCH CLSD CTC ATLANTA ARTCC AT 770-210-7692.
A33-12/30_CONDRWY POOR COND DUE TO EXTSV CRACKING WITH VEGETATION AND RAVELING.
A42-12_CONDMARKINGS COMPLETELY FADED
A42-30_CONDMARKINGS COMPLETELY FADED.
A43-12PAPI UNUSBL BYD 8 DEGS LEFT OF CNTRLN.
A43-30PAPI RWY 30 OTS INDEFLY.
A57-12CONTROLLING OBSTN EXCEEDS A 45 DEG SLP
A58-12TREES LCTD 31 FT FROM PAVEMENT END BEGINNING AT 125 FT RIGHT OF CL AND CONTG ACRS TO 125 FT LEFT OF CL. 8:1 SLOPE FROM DSPLCD THR.
A81-APTACTVT PAPI RWY 30; MIRL RWY 12/30 - CTAF.
BUTLER/CHOCTAW COUNTY (IATA: 09A) is a public airport located in BUTLER, AL, US.
