09J
JEKYLL ISLAND
Public
PUB
6 miles SE of JEKYLL ISLAND, GA
View on
Map
Status
Operational
Coordinates
31° 04' 28"N
81° 25' 40"W
Elevation
11' MSL
Pattern Alt
1011' MSL
Mag Variation
05W
Fuel
100LL
FSS
MACON (MCN)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
4/18/24-5/16/24
KSSI (5nm)
VFR
7:35 PM EDT
RAW
Clear
Viz
10sm
Temp
72°F
Dew
59°F
Pres
30.08"Hg
Wind
170° 12kts
RMK
AO2
KSSI 242335Z AUTO 17012KT 10SM CLR 22/15 A3008 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
09J FBOs, Flight Schools and Ground Support
Jekyll Island Airport
Freq: 123.05
Phone: (912) 635-9330
Other: (912) 635-4091
0 Reviews
(
Read
|
Sign In To Write
)
Phillips 66
As of
4/11
100LL
Jet
A
Jet
A+
Mogas
UL94
Self Serve
6.52
Full Serve
09J Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
09J Hotels
No hotels are listed for this airport.
09J Restaurants
No restaurants are listed for this airport.
09J Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
123.05
CTAF
123.05
No communication frequencies available for this airport.

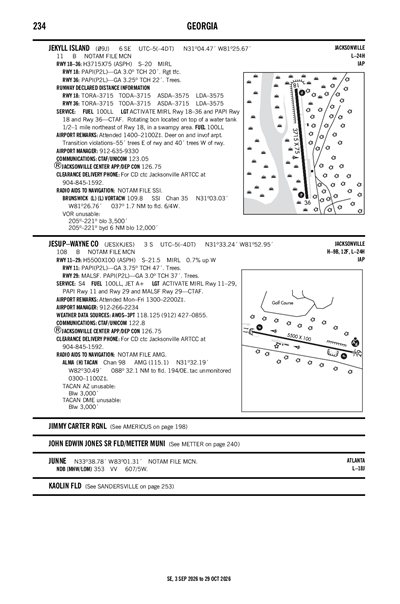

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 18
VOR-A
Terminal Area Forecast
KSSI (5nm)
RAW
Reported
Wed, 4/24 7:20 PM EDT
Valid
Wed, 4/24 8:00 PM EDT - Thu, 4/25 8:00 PM EDT
VFR
8:00 PM EDT - 12:00 AM EDT
Few 6,000'
Viz
6sm
Wind
170° 11kts
VFR
12:00 AM EDT - 1:00 PM EDT
Sky Clear
Viz
6sm
Wind
220° 6kts
VFR
1:00 PM EDT - 8:00 PM EDT
Scattered 4,000'
Viz
6sm
Wind
130° 11kts
KSSI 242320Z 2500/2524 17011KT P6SM FEW060
FM250400 22006KT P6SM SKC
FM251700 13011KT P6SM SCT040
09J
Domestic
4/8/24
1205Z
!MCN 04/190 09J OBST TOWER LGT (ASR 1063075) 310310.30N0813916.80W (11.8NM W 09J) 279.2FT (265.1FT AGL) U/S 2404081205-2407070400
ATC Tower
No
Attendance
0900-1600
Owner
JEKYLL ISLAND AUTHORITY
100 JAMES RD.
JEKYLL ISLAND, GA 31527
Phone: 912-635-4000
Manager
NOEL JENSEN
100 JAMES ROAD
JEKYLL ISLAND, GA 31527
Phone: 912-635-9330
FSS
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
NOTAM
MCN
Light Schedule
--
Lights
ACTVT MIRL RY 18/36 AND PAPI RY 18 & RY 36 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
6
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
2
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 18/36
Dimensions
3715 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
20,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
174°
354°
Traffic Pattern
Right
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
31° 04' 46"N
31° 04' 10"N
Longitude
81° 25' 42"W
81° 25' 38"W
Elevation
11'
11'
Threshold Crossing Height
20 ft. AGL
22 ft. AGL
Visual Glide Path Angle
3°
3.25°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
TRANSITION VIOLATIONS - 55 FT TREES E OF RY & 40 FT TREES W OF RY.
A110-2
ROTG BCN IS LCTD ON TOP OF A WATER TANK 1/2 - 1 MILE NE OF RY 18 IN A SWAMPY AREA.
A110-3
DEER ON & INVOF OF ARPT.
A110-4
FOR CD CTC JACKSONVILLE ARTCC AT 904-845-1592.
JEKYLL ISLAND (IATA: 09J) is a public airport located in JEKYLL ISLAND, GA.
