09K
SARGENT MUNI
Public
PUB
2 miles E of SARGENT, NE
View on
Map
Status
Operational
Coordinates
41° 38' 06"N
99° 20' 32"W
Elevation
2313' MSL
Pattern Alt
3313' MSL
Mag Variation
08E
Fuel
None Listed
FSS
COLUMBUS (OLU)
Sectional
OMAHA
ARTCC
DENVER (ZDV)
Data Effective
3/21/24-4/18/24
KODX (18nm)
VFR
3:53 AM CDT
RAW
Clear
Viz
10sm
Temp
43°F
Dew
36°F
Pres
29.72"Hg
Wind
Calm
RMK
AO2 SLP066 T00610022 56018
KODX 290853Z AUTO 00000KT 10SM CLR 06/02 A2972 RMK AO2 SLP066 T00610022 56018
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
09K FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
09K Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
09K Hotels
No hotels are listed for this airport.
09K Restaurants
No restaurants are listed for this airport.
09K Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

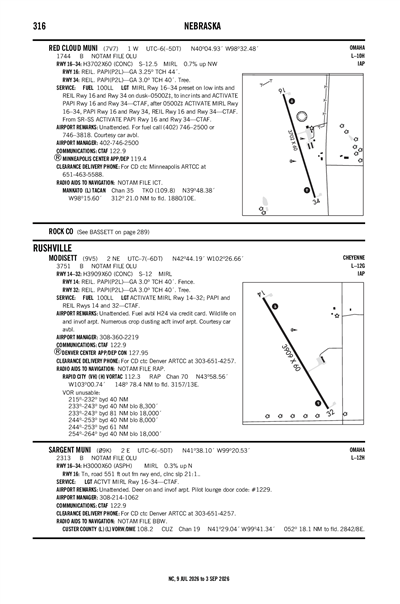

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KEAR (57nm)
RAW
Reported
Fri, 3/29 12:20 AM CDT
Valid
Fri, 3/29 1:00 AM CDT - Sat, 3/30 1:00 AM CDT
VFR
1:00 AM CDT - 5:00 AM CDT
Broken 21,000'
Viz
6sm
Wind
150° 11kts
Shear 180° 45kts @ 800'
VFR
5:00 AM CDT - 11:00 AM CDT
Broken 21,000'
Viz
6sm
Wind
150° 7kts
VFR
11:00 AM CDT - 2:00 PM CDT
Broken 23,000'
Viz
6sm
Wind
330° 8kts
VFR
2:00 PM CDT - 8:00 PM CDT
Scattered 24,000'
Viz
6sm
Wind
350° 14kts
VFR
8:00 PM CDT - 1:00 AM CDT
Scattered 23,000'
Viz
6sm
Wind
360° 9kts
KEAR 290520Z 2906/3006 15011KT P6SM BKN210 WS008/18045KT
FM291000 15007KT P6SM BKN210
FM291600 33008KT P6SM BKN230
FM291900 35014KT P6SM SCT240
FM300100 36009KT P6SM SCT230
09K
Domestic
2/20/24
2209Z
!OLU 02/110 09K OBST WIND TURBINE LGT (ASN 2013-WTE-5921-OE) 413241N0993006W (9.0NM SW 09K) 3129FT (427FT AGL) U/S 2402202209-2404202359
ATC Tower
No
Attendance
UNATNDD
Owner
SARGENT AIRPORT AUTHORITY
P.O. BOX 40
SARGENT, NE 68874-0134
Phone: 308-215-0437
Manager
JOHN D. TROXEL
200 S. 6TH ST.
SARGENT, NE 68874-0134
Phone: 308-215-0437
FSS
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
NOTAM
OLU
Light Schedule
--
Lights
ACTVT MIRL RY 16/34 -CTAF.
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
3
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 16/34
Dimensions
3000 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 16
Runway 34
True Heading
171°
351°
Traffic Pattern
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
41° 38' 20"N
41° 37' 51"N
Longitude
99° 20' 35"W
99° 20' 28"W
Elevation
2,311'
2,301'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
DEER ON & INVOF ARPT.
A110-2
PILOT LOUNGE DOOR CODE: #1229
A110-3
FOR CD CTC DENVER ARTCC AT 303-651-4257.
SARGENT MUNI (IATA: 09K) is a public airport located in SARGENT, NE.
