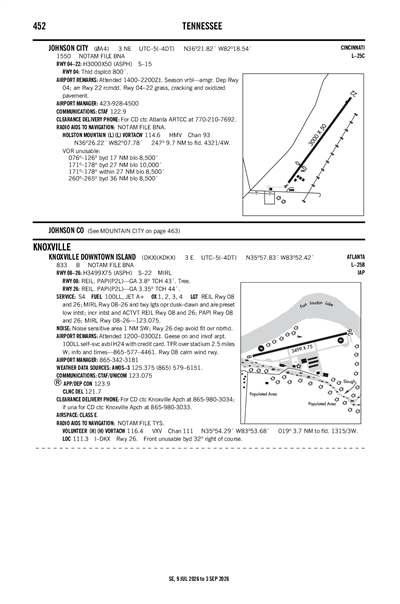

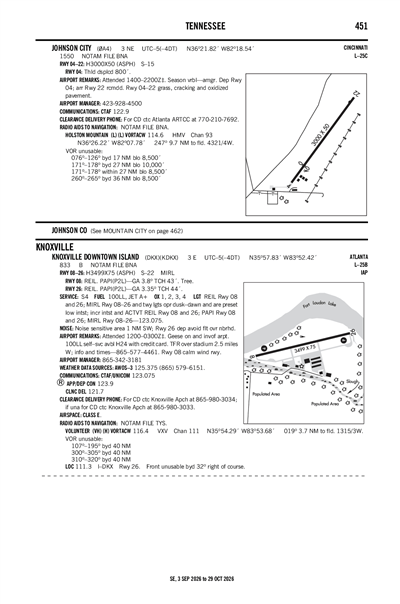

JOHNSON CITY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0A4
Local 0A4
JOHNSON CITY
PublicPUB

3 miles NE of JOHNSON CITY, TN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 21' 49"N 82° 18' 32"W
Elevation
1550' MSL
Pattern Alt
2550' MSL
Mag Variation
7°W
Declination
4°W
Fuel
None Listed
FSS
NASHVILLE (BNA)
Sectional
CINCINNATI
ARTCC
ATLANTA (ZTL)
Data Effective
8/6/26-9/3/26
K0A9 (6nm) VFR
1:15 PM EDT
Scattered 4,500'
Few 3,700'
10sm
88°F
73°F
30.04"Hg
270° 6kts
Gusts 12kts
AO2
METAR K0A9 171715Z AUTO 27006G12KT 10SM FEW037 SCT045 31/23 A3004 RMK AO2
+ Add Your Business

0A4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KTRI (8nm)
Mon, 8/17 1:22 PM EDT
Mon, 8/17 2:00 PM EDT - Tue, 8/18 2:00 PM EDT
VFR
2:00 PM EDT - 9:00 PM EDT
Broken 25,000'
Scattered 5,000'
6sm
260° 8kts
MVFR
4:00 PM EDT - 9:00 PM EDT
Thunderstorm and Rain and Mist
Broken 3,500'
4sm
280° 15kts
Gusts 30kts
VFR
9:00 PM EDT - 3:00 AM EDT
Showers in vicinity
Broken 7,000'
6sm
VRB° 4kts
MVFR
3:00 AM EDT - 10:00 AM EDT
Mist
Broken 2,000'
Scattered 1,000'
4sm
Calm
IFR
Temporary 5:00 AM EDT - 9:00 AM EDT
Mist
Overcast 500'
1.5sm
Calm
MVFR
10:00 AM EDT - 12:00 PM EDT
Broken 2,500'
6sm
290° 5kts
VFR
12:00 PM EDT - 2:00 PM EDT
Broken 4,000'
6sm
270° 6kts
TAF KTRI 171722Z 1718/1818 26008KT P6SM SCT050 BKN250
   PROB30 1720/1801 28015G30KT 4SM TSRA BR BKN035CB
   FM180100 VRB04KT P6SM VCSH BKN070
   FM180700 00000KT 4SM BR SCT010 BKN020
   TEMPO 1809/1813 1 1/2SM BR OVC005
   FM181400 29005KT P6SM BKN025
   FM181600 27006KT P6SM BKN040
0A4
EffectiveExpiresCategoryNOTAM
Domestic
8/9/26
2208Z
11/7/26
2308Z
!BNA 08/254 0A4 OBST TOWER LGT (ASR 1043638) 361651.20N0823041.70W (11.1NM WSW 0A4) 2206.0FT (285.1FT AGL) U/S 2608092208-2611072308
8/8/26
1920Z
11/6/26
2020Z
!BNA 08/224 0A4 OBST TOWER LGT (ASR 1200021) 362455.90N0821505.10W (4.2NM NE 0A4) 2055.8FT (255.9FT AGL) U/S 2608081920-2611062020
7/24/26
1130Z
10/22/26
1130Z
!BNA 07/680 0A4 OBST TOWER LGT (ASR 1200018) 362440.40N0821807.00W (2.9NM NE 0A4) 1950.8FT (274.9FT AGL) U/S 2607241130-2610221130
7/6/26
0652Z
10/4/26
0652Z
!BNA 07/137 0A4 OBST TOWER LGT (ASR 1202946) 362112.00N0822017.70W (1.6NM WSW 0A4) 1872.7FT (129.9FT AGL) U/S 2607060652-2610040652
No
0900-1700
SEASON VRBL - AMGR.
GEORGE W ST JOHN, HEIRS
RT 1 BOX 122
WATAUGA, TN 37694
Phone: (423) 928-4500
PRESTON ELDRED
209 CRESTWOOD DRIVE
JOHNSON CITY, TN 37601
Phone: 423-928-4500
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

3000 ft. x 50 ft.
ASPH
Poor
NONE


15,000lbs
--
--
--
  Runway 04 Runway 22
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A17-H1SEASON VRBL - AMGR.
A30-04/22DEP RWY 04; ARR RWY 22 RCMDD.
A33-04/22_CONDGRASS, CRACKING & OXIDIZED PAVEMENT.
A52-224390 FT MTN RIDGES E WI 9 MI.
A57-04APCH RATIO 15:1 TO DTHR.
JOHNSON CITY (IATA: 0A4) is a public airport located in JOHNSON CITY, TN, US.
