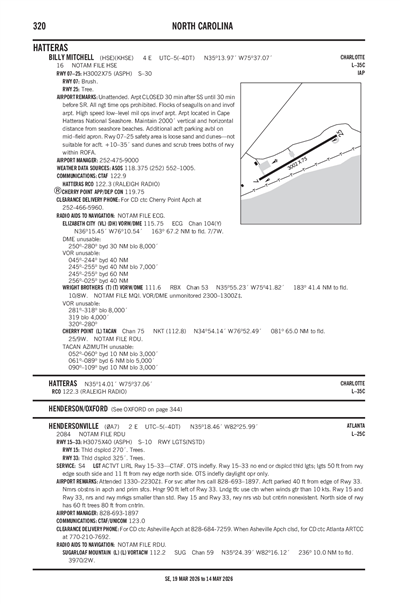

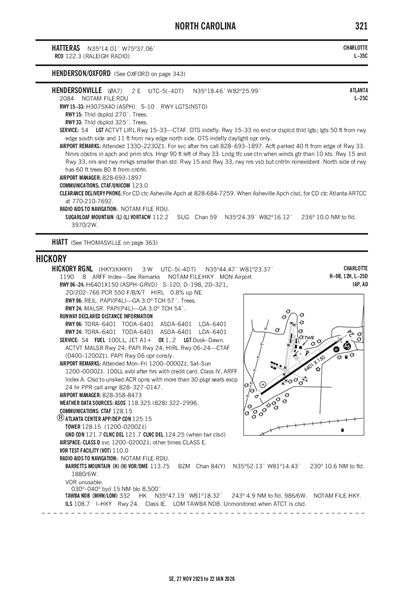

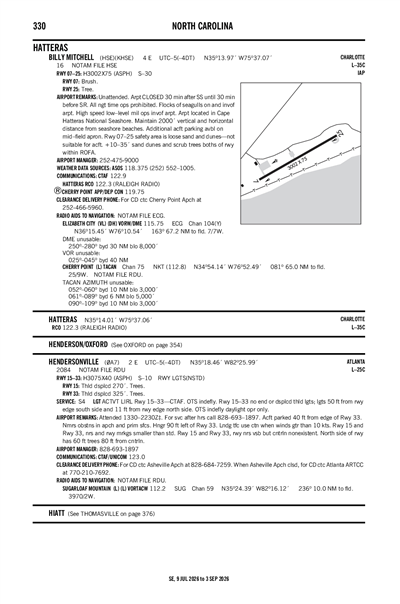

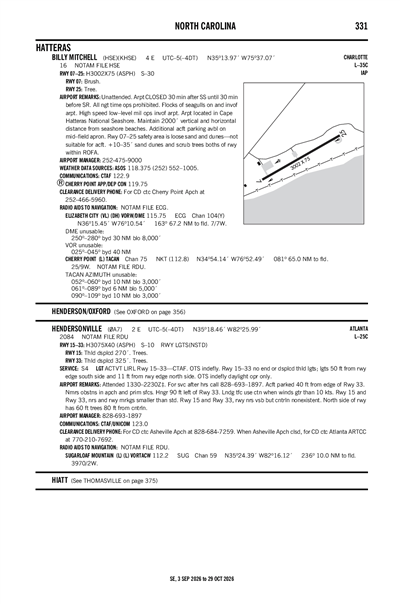

HENDERSONVILLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0A7
Local 0A7
HENDERSONVILLE
PublicPUB

2 miles E of HENDERSONVILLE, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 18' 27"N 82° 25' 59"W
Elevation
2084' MSL
Pattern Alt
3084' MSL
Mag Variation
7°W
Declination
4°W
Fuel
None Listed
FSS
RALEIGH (RDU)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
10/29/26-11/26/26
KAVL (9nm) VFR
7:54 AM EST
Broken 5,500'
10sm
51°F
47°F
29.68"Hg
350° 4kts
AO2 SLP037 T01060083
METAR KAVL 121254Z 35004KT 10SM BKN055 11/08 A2968 RMK AO2 SLP037 T01060083
+ Add Your Business

0A7 FBOs

Promote Listing
Aerolina
UNICOM: 123.0
Phone: (828) 693-1897
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
ACTVT LIRL RWY 15/33 - CTAF. OTS INDEFLY.
UNICOM 123.0

FAA A/FD Pages

Terminal Area Forecast

KAVL (9nm)
Thu, 11/12 6:24 AM EST
Thu, 11/12 7:00 AM EST - Fri, 11/13 7:00 AM EST
VFR
Temporary 7:00 AM EST - 10:00 AM EST
Broken 4,000'
N/A
Calm
VFR
7:00 AM EST - 10:00 AM EST
Scattered 4,000'
6sm
340° 7kts
VFR
10:00 AM EST - 6:00 PM EST
Broken 4,000'
6sm
340° 14kts
Gusts 24kts
VFR
6:00 PM EST - 4:00 AM EST
Broken 6,000'
Scattered 3,000'
6sm
330° 14kts
Gusts 23kts
MVFR
4:00 AM EST - 7:00 AM EST
Broken 3,000'
6sm
340° 12kts
TAF KAVL 121124Z 1212/1312 34007KT P6SM SCT040
   TEMPO 1212/1215 BKN040
   FM121500 34014G24KT P6SM BKN040
   FM122300 33014G23KT P6SM SCT030 BKN060
   FM130900 34012KT P6SM BKN030
0A7
No NOTAM Available
No
0830 - 1730
JOHN'S HENDERSONVILLE AIRPORT LLC
1232 SHEPHERD ST
HENDERSONVILLE, NC 28792
Phone: 828-693-1897
JOHN FADOK
1232 SHEPHERD ST
HENDERSONVILLE, NC 28792
Phone: 828-693-1897
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
ACTVT LIRL RWY 15/33 - CTAF. OTS INDEFLY.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 15/33

3075 ft. x 40 ft.
ASPH
Fair
NONE
NSTD

10,000lbs
--
--
--
  Runway 15 Runway 33
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition POOR POOR
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-10LNDG TFC USE CTN WHEN WINDS GTR THAN 10 KTS.
A110-11FOR CD CTC ASHEVILLE APCH AT 828-684-7259. WHEN ASHEVILLE APCH CLSD, FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-2NORTH SIDE OF RWY HAS 60 FT TREES 80 FT FM CNTRLN.
A110-3NMRS OBSTNS IN APCH & PRIM SFCS. HNGR 90 FT LEFT OF RWY 33.
A110-5ACFT PARKED 40 FT FM EDGE OF RWY 33.
A110-8FOR SVC AFT HRS CALL 828-693-1897.
A40-15/33NO END OR DSPLCD THR LGTS; LGTS 50 FT FROM RWY EDGE SOUTH SIDE AND 11 FT FROM RWY EDGE NORTH SIDE. OTS INDEFLY DALGT OPNS ONLY.
A42-15_CONDRWY NRS VSB BUT CNTRLN NONEXISTENT.
A42-15_MARKNRS AND RWY MRKGS SMALLER THAN STD.
A42-33_CONDRWY NRS VSB BUT CNTRLN NONEXISTENT.
A42-33_MARKNRS AND RWY MRKGS SMALLER THAN STD.
A57-15CTLNG OBSTN EXCEEDS A 45 DEG SLP. APCH RATIO 3:1 TO DSPLCD THR DUE TO 83 FT TREES 451 FT FR DSPLCD THR OFFSET 81 FT LEFT OF CNTRLN.
A57-33APCH RATIO 4:1 TO DSPLCD THR DUE TO 34 FT TREES 342 FT FR DSPLCD THR OFFSET 59 FT R OF CNTRLN.
A58-1518 FT RD 45 FT FR END OF RWY BOTH SIDES OF CNTRLN; 8 TO 16 FT BUSHES 8 TO 12 FT FR END OF RWY BOTH SIDES.
A58-335 FT FENCE 46 FT FM THR BOTH SIDES CNTRLN; 24 FT ROAD 114 FT FROM THR BOTH SIDES CNTRLN; 38 FT TREES 0-170 FT FROM END OF RWY OFFSET 50 FT RIGHT.
A81-APTACTVT LIRL RWY 15/33 - CTAF. OTS INDEFLY.
E111EXISTED IN 1952.
HENDERSONVILLE (IATA: 0A7) is a public airport located in HENDERSONVILLE, NC, US.
