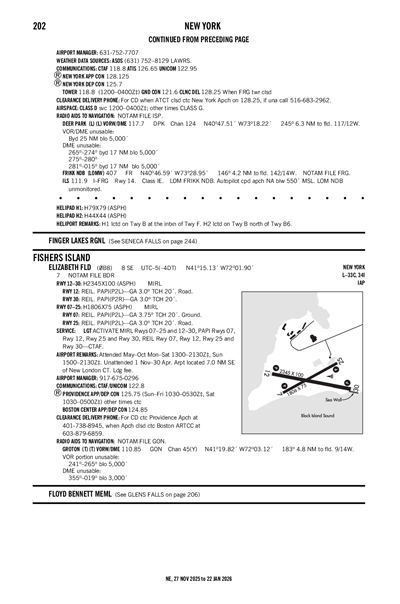

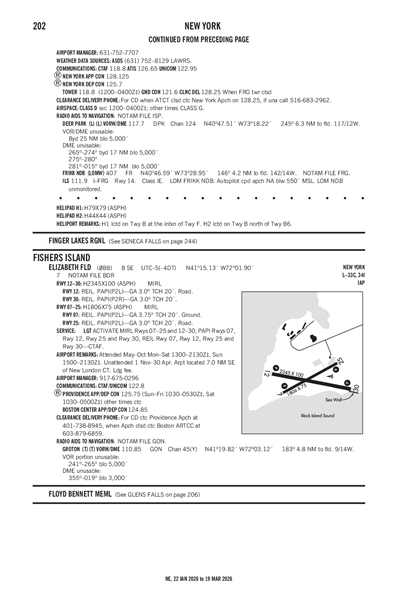

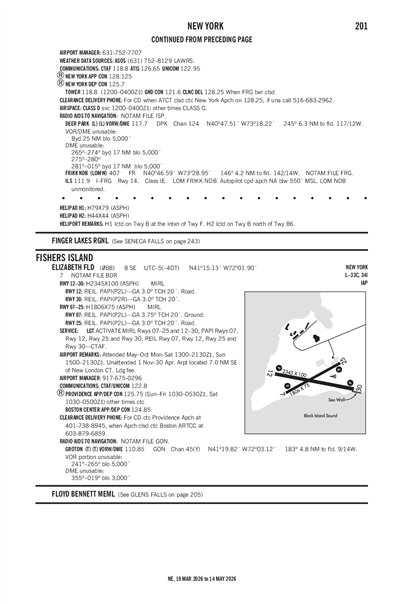

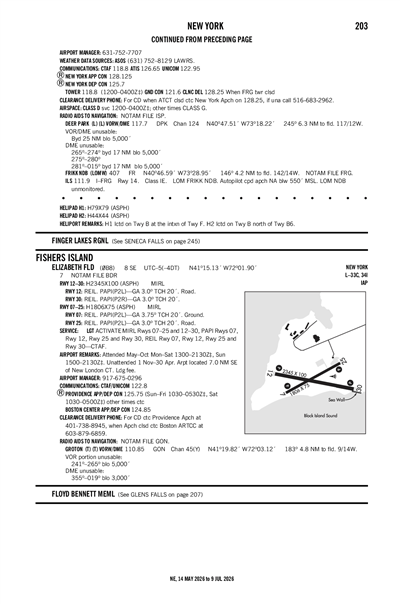

ELIZABETH FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0B8
Local 0B8
ELIZABETH FLD
PublicPUB

8 miles SE of FISHERS ISLAND, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 15' 08"N 72° 01' 54"W
Elevation
7' MSL
Pattern Alt
1007' MSL
Mag Variation
14°W
Declination
14°W
Fuel
None Listed
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KGON (5nm) VFR
9:56 AM EDT
Broken 11,000'
Broken 10,000'
10sm
39°F
18°F
30.50"Hg
070° 9kts
AO2 SLP328 T00391078
METAR KGON 151356Z 07009KT 10SM BKN100 BKN110 04/M08 A3050 RMK AO2 SLP328 T00391078
+ Add Your Business

0B8 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT REIL RY 07/25 & RY 12/30; PAPI RY 07/25 & RY 12/30; MIRL RY 07/25 & RY 12/30 - CTAF.
UNICOM 122.8

Approach

PROVIDENCE APPROACH 125.75

Departure

PROVIDENCE DEPARTURE 125.75

Center

PROVIDENCE CENTER 124.85
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 124.85/307.9 (WOODSTOCK RCAG) WHEN PROVIDENCE APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KGON (5nm)
Sun, 3/15 7:20 AM EDT
Sun, 3/15 8:00 AM EDT - Mon, 3/16 8:00 AM EDT
VFR
8:00 AM EDT - 9:00 AM EDT
Broken 12,000'
6sm
VRB° 3kts
VFR
9:00 AM EDT - 12:00 PM EDT
Broken 12,000'
6sm
050° 7kts
VFR
12:00 PM EDT - 2:00 PM EDT
Broken 12,000'
6sm
130° 9kts
VFR
2:00 PM EDT - 7:00 PM EDT
Broken 20,000'
Scattered 10,000'
6sm
140° 11kts
Gusts 18kts
VFR
7:00 PM EDT - 4:00 AM EDT
Broken 25,000'
Scattered 8,000'
6sm
110° 11kts
MVFR
12:00 AM EDT - 2:00 AM EDT
Light Rain
Overcast 5,000'
Broken 2,500'
N/A
Calm
MVFR
4:00 AM EDT - 6:00 AM EDT
Showers and Rain and Mist
Overcast 1,500'
5sm
120° 15kts
Gusts 27kts
IFR
6:00 AM EDT - 8:00 AM EDT
Showers and Rain and Mist
Overcast 600'
1.5sm
140° 19kts
Gusts 33kts
TAF KGON 151120Z 1512/1612 VRB03KT P6SM BKN120
   FM151300 05007KT P6SM BKN120
   FM151600 13009KT P6SM BKN120
   FM151800 14011G18KT P6SM SCT100 BKN200
   FM152300 11011KT P6SM SCT080 BKN250
   PROB30 1604/1606 -RA BKN025 OVC050
   FM160800 12015G27KT 5SM SHRA BR OVC015 WS020/14050KT
   FM161000 14019G33KT 1 1/2SM SHRA BR OVC006 WS020/15055KT
0B8
EffectiveExpiresCategoryNOTAM
Domestic
10/6/25
2111Z
Runway!BDR 10/017 0B8 RWY 12 /30 REDL U/S 2510062111-2604062111EST
10/6/25
2111Z
4/6/26
2111Z
Runway!BDR 10/016 0B8 RWY 07 /25 REDL U/S 2510062111-2604062111
10/2/25
1745Z
Runway!BDR 10/015 0B8 RWY 30 PAPI U/S 2510021745-2604062111EST
10/2/25
1744Z
Runway!BDR 10/014 0B8 RWY 12 PAPI U/S 2510021744-2604062111EST
10/2/25
1743Z
Runway!BDR 10/013 0B8 RWY 25 PAPI U/S 2510021743-2604062111EST
10/2/25
1742Z
Runway!BDR 10/012 0B8 RWY 07 PAPI U/S 2510021742-2604062111EST
10/2/25
1741Z
Runway!BDR 10/011 0B8 RWY 30 RWY END ID LGT U/S 2510021741-2604062111EST
10/2/25
1740Z
Runway!BDR 10/010 0B8 RWY 12 RWY END ID LGT U/S 2510021740-2604062111EST
10/2/25
1739Z
Runway!BDR 10/009 0B8 RWY 25 RWY END ID LGT U/S 2510021739-2604062111EST
10/2/25
1738Z
Runway!BDR 10/008 0B8 RWY 07 RWY END ID LGT U/S 2510021738-2604062111EST
FDC
2/20/26
1300Z
5/13/26
1911Z
!FDC 6/7007 0B8 ODP ELIZABETH FLD, FISHERS ISLAND, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKE-OFF MINIMUMS: RWY 25, 400-2 1/2 OR STANDARD WITH MINIMUM CLIMB OF 310 FPNM TO 520. RWY 30, 400-2 1/4 OR STANDARD WITH MINIMUM CLIMB OF 240 FPNM TO 460. EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN. TEMPORARY BARGE CRANE 345FT MSL 1.69NM SOUTHWEST OF RWY 25 (2024-WTE-5723-OE). TEMPORARY BARGE CRANE 345FT MSL 1.98NM SOUTHWEST OF RWY 25 (2024-WTE-5706-OE). TEMPORARY BARGE CRANE 345FT MSL 1.91NM SOUTHWEST OF RWY 30 (2024-WTE-5707-OE).
TEMPORARY BARGE CRANE 227FT MSL 1.39NM SOUTHWEST OF RWY 25 (2025-WTE-8649-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2602201300-2605131911EST
2/20/26
1300Z
5/13/26
1911Z
!FDC 6/7006 0B8 IAP ELIZABETH FLD, FISHERS ISLAND, NY.
VOR OR GPS-A, AMDT 6B...
CIRCLING MDA 700/HAA 693 CAT B/C. VISIBILITY CAT C 2.
BLOCK ISLAND ALTIMETER SETTING MINIMUMS:
CIRCLING MDA 760/HAA 753 CAT B/C. VISIBILITY CAT C 2.
EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN. TEMPORARY BARGE CRANE 345FT MSL 1.54NM SOUTHWEST OF 0B8 AIRPORT (2024-WTE-5705-OE). TEMPORARY BARGE CRANE 227FT MSL 1.54NM SOUTHWEST OF 0B8 AIRPORT (2025-WTE-8649-OE). TEMPORARY BARGE CRANE 227FT MSL 1.28NM SOUTHWEST OF 0B8 AIRPORT (2025-WTE-8650-OE). TEMPORARY BARGE CRANE 227FT MSL 1.19NM SOUTH OF 0B8 AIRPORT (2025-WTE-8651-OE). TEMPORARY BARGE CRANE 227FT MSL 1.31NM SOUTH OF 0B8 AIRPORT (2025-WTE-8652-OE).
2602201300-2605131911EST
No
MAY-OCT SUN 1000-1630
MAY-OCT MON-SAT 0800-1630
1 NOV-30 APR UNATNDD
TOWN OF SOUTHOLD
PO BOX 607
FISHERS ISLAND, NY 06390
Phone: 631-765-1800
DAVID MCCALL
PO BOX 607 261 TRUMBULL DR
FISHERS ISLAND, NY 06390
Phone: 917-675-0296
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
BDR
--
ACTVT REIL RY 07/25 & RY 12/30; PAPI RY 07/25 & RY 12/30; MIRL RY 07/25 & RY 12/30 - CTAF.
N/A
Yes - Lighted
No
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 07/25

1806 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 07 Runway 25
True Heading 61°241°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 15' 04"N 41° 15' 13"N
Longitude 72° 02' 05"W 72° 01' 44"W
Elevation 4' 7'
Threshold Crossing Height 20 ft. AGL 20 ft. AGL
Visual Glide Path Angle 3.75° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 12/30

2345 ft. x 100 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 12 Runway 30
True Heading 101°281°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 15' 09"N 41° 15' 05"N
Longitude 72° 02' 09"W 72° 01' 39"W
Elevation 7' 4'
Threshold Crossing Height 20 ft. AGL 20 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1(A17) ARPT ATTENDED MAY-OCT MON THRU SAT 0800-1630; SUN 1000-1630; UNATNDD NOV-APR.
A110-3FOR CD CTC PROVIDENCE APCH AT 401-738-8945, WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
A16OR 860-460-7174 WHEN ATTENDED.
A52-0724 FT DUNE.
A52-12RY 12, 2.5 FT SIGN POST 202 FT FM THLD 87 FT RT; 2.5 FT SIGN POS , 202 FT FM THLD 78 FT L.
A52-30RY 30, 5 FT ROCK SEAWALL 70-85 FT L PARALLEL TO RY.
A58-07RWY 07; 6 FT ROCK/GRAVEL DUNE PARALLEL TO RWY 75 FT R. 6 FT ROCK/GRAVEL DUNE 165 FT FROM RWY PERPENDICULAR TO RWY.
A58-12RWY12; +15FT RD PARALLEL TO RWY 90 FT L.
A58-25RWY 25; +7 FT BRUSH 170-180 FT FROM THLD 42-61 FT L.
A81-APTACTVT REIL RY 07/25 & RY 12/30; PAPI RY 07/25 & RY 12/30; MIRL RY 07/25 & RY 12/30 - CTAF.
E111APR 16, 1959 MIL FAC TURNED OVER TO COM.
ELIZABETH FLD (IATA: 0B8) is a public airport located in FISHERS ISLAND, NY, US.
