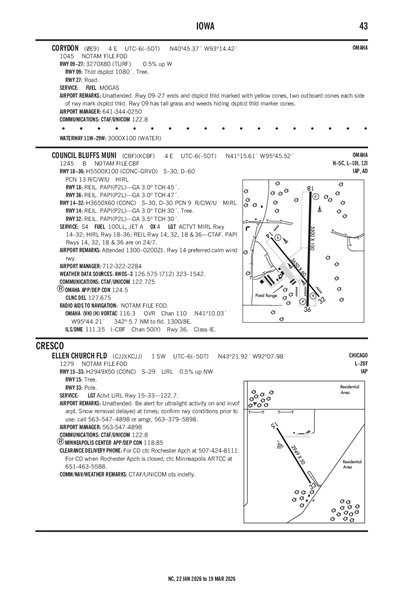

CORYDON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0E9
Local 0E9
CORYDON
PublicPUB

4 miles E of CORYDON, IA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 45' 22"N 93° 14' 25"W
Elevation
1045' MSL
Pattern Alt
2045' MSL
Mag Variation
0°
Declination
4°E
Fuel
MOGAS
FSS
FORT DODGE (FOD)
Sectional
OMAHA
ARTCC
CHICAGO (ZAU)
Data Effective
6/11/26-7/9/26
KTVK (16nm) VFR
4:15 PM CDT
Few 12,000'
10sm
79°F
61°F
29.98"Hg
020° 5kts
A01
METAR KTVK 252115Z AUTO 02005KT 10SM FEW120 26/16 A2998 RMK A01
+ Add Your Business

0E9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KOTM (42nm)
Thu, 6/25 12:30 PM CDT
Thu, 6/25 1:00 PM CDT - Fri, 6/26 1:00 PM CDT
VFR
1:00 PM CDT - 9:00 PM CDT
Broken 12,000'
Scattered 4,000'
6sm
330° 6kts
VFR
9:00 PM CDT - 4:00 AM CDT
Broken 25,000'
Scattered 5,000'
6sm
060° 3kts
VFR
4:00 AM CDT - 10:00 AM CDT
Broken 5,000'
Scattered 2,800'
6sm
100° 7kts
MVFR
6:00 AM CDT - 10:00 AM CDT
Light Showers and Rain
Broken 2,800'
N/A
Calm
MVFR
10:00 AM CDT - 1:00 PM CDT
Broken 2,700'
Scattered 1,900'
6sm
080° 12kts
TAF KOTM 251730Z 2518/2618 33006KT P6SM SCT040 BKN120
   FM260200 06003KT P6SM SCT050 BKN250
   FM260900 10007KT P6SM SCT028 BKN050
   PROB30 2611/2615 -SHRA BKN028
   FM261500 08012KT P6SM SCT019 BKN027
0E9
EffectiveExpiresCategoryNOTAM
Domestic
6/24/26
1534Z
8/24/26
2359Z
!FOD 06/218 0E9 OBST TOWER LGT (ASR 1016857) 404600.80N0932041.80W (4.8NM W 0E9) 1507.2FT (413.1FT AGL) U/S 2606241534-2608242359
6/23/26
0544Z
8/7/26
0543Z
!FOD 06/187 0E9 OBST TOWER LGT (ASR 1018566) 404207.00N0930445.70W (8.0NM ESE 0E9) 1375.7FT (339.9FT AGL) U/S 2606230544-2608070543
6/4/26
1743Z
8/4/26
2359Z
!FOD 06/027 0E9 OBST TOWER LGT (ASR 1273728) 405153.70N0930237.60W (11.1NM NE 0E9) 1253.0FT (257.9FT AGL) U/S 2606041743-2608042359
9/24/25
1635Z
!FOD 09/141 0E9 AD AP CLSD TO PUBLIC 2509241635-PERM
No
UNATNDD
JOEL WELLS
2644 HIGHWAY 2
CORYDON, IA 50060
Phone: 641-344-0250
JOEL WELLS
2644 HIGHWAY 2
CORYDON, IA 50060
Phone: 641-344-0250
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
FOD
--
--
N/A
Yes
No
No
None
No
None
None
None
None
None

Runway 09/27

3270 ft. x 80 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 87°267°
Traffic Pattern
Markings
Markings Condition
Latitude 40° 45' 16"N 40° 45' 18"N
Longitude 93° 14' 54"W 93° 14' 12"W
Elevation 1,045' 1,028'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11W/29W

3000 ft. x 100 ft.

WATER
NONE


--
--
--
--
  Runway 11W Runway 29W
True Heading 113°293°
Traffic Pattern
Markings
Markings Condition
Latitude 40° 45' 34"N 40° 45' 23"N
Longitude 93° 14' 35"W 93° 13' 59"W
Elevation 1,009' 1,002'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 09 HAS TALL GRASS & WEEDS HIDING DSPLCD THLD MARKER CONES.
A42-09_MARK09/27 ENDS & DSPLCD THLD MARKED WITH YELLOW CONES; TWO OUTBOARD CONES EACH SIDE OF RY MARK DSPLCD THLD.
A57-09APCH SLOPE 26:1 TO DSPLCD THLD.
E111PROVIDED APPROACHES ARE MAINTAINED FOR A 20:1 GLIDE SLOPE AND TRANSITIONAL SURFACES FOR A 7:1 SLOPE.
CORYDON (IATA: 0E9) is a public airport located in CORYDON, IA, US.
