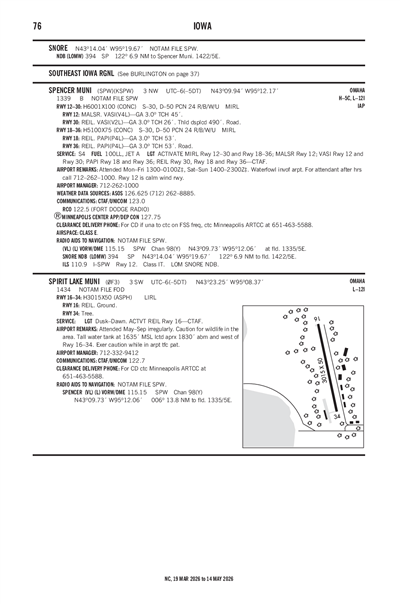

SPIRIT LAKE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0F3
Local 0F3
SPIRIT LAKE MUNI
PublicPUB

3 miles SW of SPIRIT LAKE, IA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 23' 15"N 95° 08' 22"W
Elevation
1434' MSL
Pattern Alt
2434' MSL
Mag Variation
2°E
Declination
5°E
Fuel
None Listed
FSS
FORT DODGE (FOD)
Sectional
OMAHA
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
4/16/26-5/14/26
KSPW (14nm) VFR
2:53 AM CDT
Overcast 7,500'
Scattered 6,000'
Scattered 4,700'
10sm
58°F
55°F
29.62"Hg
160° 10kts
AO2 SLP026 T01440128
METAR KSPW 270753Z AUTO 16010KT 10SM SCT047 SCT060 OVC075 14/13 A2962 RMK AO2 SLP026 T01440128
+ Add Your Business

0F3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
DUSK-DAWN. ACTVT REIL RWY 16 - CTAF.
UNICOM 122.7

FAA A/FD Pages

Terminal Area Forecast

KFOD (66nm)
Mon, 4/27 12:20 AM CDT
Mon, 4/27 1:00 AM CDT - Tue, 4/28 1:00 AM CDT
VFR
1:00 AM CDT - 2:00 AM CDT
Broken 3,500'
6sm
140° 13kts
Gusts 21kts
MVFR
2:00 AM CDT - 5:00 AM CDT
Overcast 2,000'
6sm
140° 12kts
Gusts 21kts
MVFR
2:00 AM CDT - 5:00 AM CDT
Light Thunderstorm and Rain
Overcast 1,500'
4sm
Calm
IFR
5:00 AM CDT - 7:00 AM CDT
Light Thunderstorm and Rain
Overcast 500'
4sm
Calm
MVFR
5:00 AM CDT - 10:00 AM CDT
Light Showers and Rain
Overcast 1,000'
6sm
150° 12kts
Gusts 20kts
MVFR
10:00 AM CDT - 12:00 PM CDT
Overcast 1,000'
6sm
180° 11kts
IFR
10:00 AM CDT - 12:00 PM CDT
Light Thunderstorm and Rain
Overcast 800'
4sm
Calm
IFR
12:00 PM CDT - 4:00 PM CDT
Light Thunderstorm and Rain
Overcast 800'
4sm
Calm
MVFR
12:00 PM CDT - 1:00 AM CDT
Light Showers and Rain
Broken 1,500'
6sm
210° 12kts
TAF KFOD 270520Z 2706/2806 14013G21KT P6SM BKN035
   FM270700 14012G21KT P6SM OVC020
   PROB30 2707/2710 4SM -TSRA OVC015CB
   FM271000 15012G20KT 6SM -SHRA OVC010
   PROB30 2710/2712 4SM -TSRA OVC005CB
   FM271500 18011KT P6SM OVC010
   PROB30 2715/2717 4SM -TSRA OVC008CB
   FM271700 21012KT 6SM -SHRA BKN015
   PROB30 2717/2721 4SM -TSRA OVC008CB
0F3
No NOTAM Available
No
MAY-SEP IRREG
DICKINSON COUNTY ARPT AUTH
BOX 702
OKOBOJI, IA 51355
Phone: 712-332-9412
DICKINSON COUNTY ARPT AUTH
BOX 702
OKOBOJI, IA 51355
Phone: 712-332-9412
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
FOD
--
DUSK-DAWN. ACTVT REIL RWY 16 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
None
None
None
None
None

Runway 16/34

3015 ft. x 50 ft.
ASPH
Fair
NONE
LOW

--
--
--
--
  Runway 16 Runway 34
True Heading 167°347°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 43° 23' 29"N 43° 23' 00"N
Longitude 95° 08' 27"W 95° 08' 18"W
Elevation 1,434' 1,420'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A11ARPT AUTHORITY CHAIRMAN - BRUCE SMITH - 712-332-7323.
A110-1TALL WTR TANK AT 1635 FT MSL LCTD APRX 1830 FT ABM AND WEST OF RWY 16/34. EXER CTN WHILE IN ARPT TFC PAT.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-3CAUTION FOR WILDLIFE IN THE AREA
A14BRUCE SMITH
A55-16+30' TREES 100' RIGHT OF RWY CNTRLN EXTNDD 520' FROM AER.
A57-16CONTROLLING OBST EXCEEDS A 45 DEG SLP.
A58-1610 FT TREES AND BRUSH 0 FT FM RWY END 110 FT L ON APCH 0:0 APCH SLP.
A58-3425 FT TREES AND BRUSH 0 FT FM RWY END 105 FT R ON APCH 0:0 APCH SLP.
A81-APTDUSK-DAWN. ACTVT REIL RWY 16 - CTAF.
A90BASED ACFT 40 SEASONALLY MAY-SEP.
SPIRIT LAKE MUNI (IATA: 0F3) is a public airport located in SPIRIT LAKE, IA, US.
