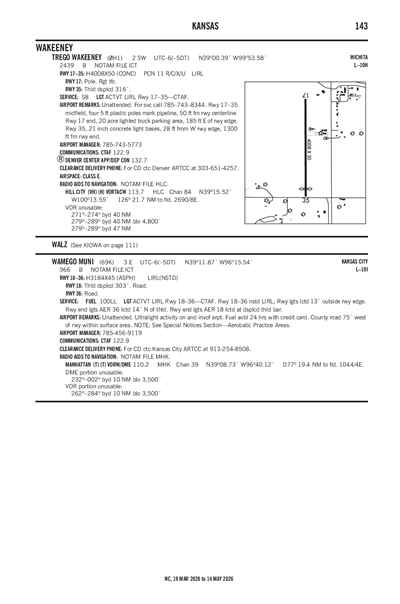

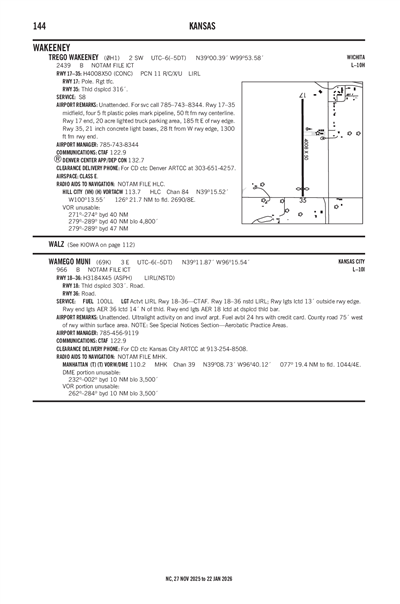

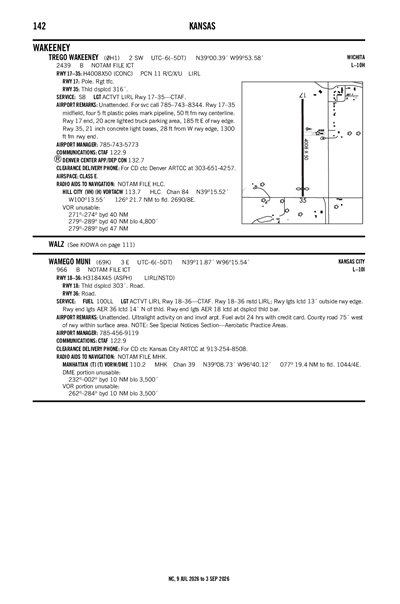

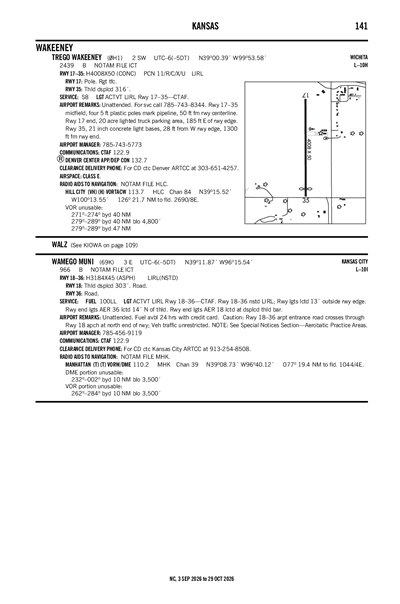

TREGO WAKEENEY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0H1
Local 0H1
TREGO WAKEENEY
PublicPUB

2 miles SW of WAKEENEY, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 00' 23"N 99° 53' 35"W
Elevation
2439' MSL
Pattern Alt
3439' MSL
Mag Variation
5°E
Declination
5°E
Fuel
None Listed
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
DENVER (ZDV)
Data Effective
10/1/26-10/29/26
KHLC (22nm) VFR
10:53 AM CDT
Clear
N/A
51°F
34°F
30.49"Hg
210° 15kts
Gusts 22kts
AO2 SLP335 T01060011 $
METAR KHLC 171553Z AUTO 21015G22KT CLR 11/01 A3049 RMK AO2 SLP335 T01060011 $
+ Add Your Business

0H1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT LIRL 17/35 - CTAF

Center

DENVER CENTER 132.7
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON 132.7/226.675 (HILL CITY RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KHYS (31nm)
Sat, 10/17 6:20 AM CDT
Sat, 10/17 7:00 AM CDT - Sun, 10/18 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Sky Clear
6sm
VRB° 4kts
VFR
10:00 AM CDT - 1:00 PM CDT
Sky Clear
6sm
200° 10kts
VFR
1:00 PM CDT - 7:00 PM CDT
Sky Clear
6sm
190° 18kts
Gusts 28kts
VFR
7:00 PM CDT - 7:00 AM CDT
Sky Clear
6sm
170° 10kts
TAF KHYS 171120Z 1712/1812 VRB04KT P6SM SKC
   FM171500 20010KT P6SM SKC
   FM171800 19018G28KT P6SM SKC
   FM180000 17010KT P6SM SKC
0H1
EffectiveExpiresCategoryNOTAM
Domestic
10/9/26
0502Z
10/24/26
0402Z
!ICT 10/223 0H1 OBST TOWER LGT (ASR 1032681) 390059.00N0995130.90W (1.7NM ENE 0H1) 2898.0FT (454.1FT AGL) U/S 2610090502-2610240402
FDC
5/13/26
1151Z
!FDC 6/9961 0H1 ODP TREGO WAKEENEY, WAKEENEY, KS. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG... TAKE-OFF MINIMUMS RWY 35: 300-1 1/2 OR STANDARD WITH A MINIMUM CLIMB OF 266 FT/NM TO 2800. ALL OTHER DATA REMAINS AS PUBLISHED. 2605131151-2805131151EST
No
UNATNDD
FOR SVC CALL 785-743-8344.
TREGO COUNTY
216 N MAIN
WAKEENEY, KS 67672
Phone: 785-743-5755
LORI AUGUSTINE - COUNTY CLERK

WAKEENEY, KS 67672
Phone: 785-743-5773
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT LIRL 17/35 - CTAF
N/A
Yes - Lighted
No
No
Tie-Down
No
None
Minor
None
None
Crop Dusting
Pilot Instruction

Runway 17/35

4008 ft. x 50 ft.
CONC
Excellent
NONE
LOW
11/R/C/X/U
--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 39° 00' 43"N 39° 00' 04"N
Longitude 99° 53' 35"W 99° 53' 34"W
Elevation 2,434' 2,425'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC DENVER ARTCC AT 303-651-4257.
A110-3RWY 17/35 MIDFIELD, FOUR 5 FT PLASTIC POLES MARK PIPELINE, 50 FT FM RWY CL.
A110-4RWY 17 END, 20 ACRE LIGHTED TRUCK PARKING AREA, 185 FT E OF RWY EDGE EDGE.
A110-5RWY 35, 21 INCH CONCRETE LIGHT BASES, 28 FT FROM W. RWY EDGE, 1300 FM RWY END.
A13LORI.AUGUSTINE@TREGOCOUNTYKS.GOV
A14COUNTY CLERK/INTERIM AMGR.
A17-M1FOR SVC CALL 785-743-8344.
A50-35APCH SLOPE 36:1 TO DTHR.
A57-17APCH SLOPE 36:1 TO DTHR. DTHR MKD/LGTD 462 FT FM RWY END.
A58-3511 FT RD, 27 FT DSTC, 125 FT L/R.
A81-APTACTVT LIRL 17/35 - CTAF
E111PRVDD EACH APCH IS MAINT FOR MIN 20:1 GLIDE SLOPE & TRSNL SFC MAINT FOR 7:1 SLOPE.
TREGO WAKEENEY (IATA: 0H1) is a public airport located in WAKEENEY, KS, US.
