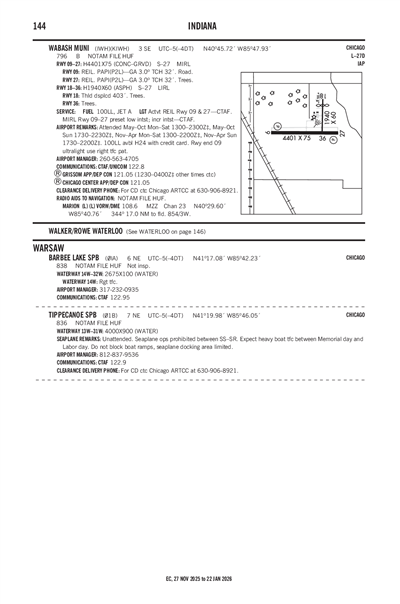

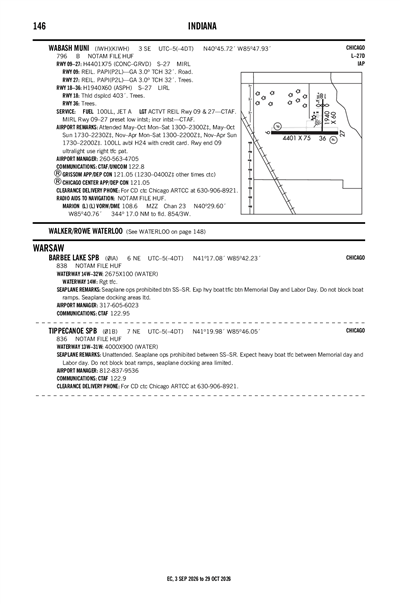

BARBEE LAKE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0IA
Local 0IA
BARBEE LAKE
PublicPUB

6 miles NE of WARSAW, IN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 17' 05"N 85° 42' 14"W
Elevation
838' MSL
Pattern Alt
1838' MSL
Mag Variation
5°W
Fuel
None Listed
FSS
TERRE HAUTE (HUF)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
8/6/26-9/3/26
KASW (6nm) VFR
12:35 PM EDT
Scattered 2,700'
10sm
76°F
64°F
30.01"Hg
010° 7kts
AO2 T02460177
METAR KASW 171635Z AUTO 01007KT 10SM SCT027 24/17 A3001 RMK AO2 T02460177
+ Add Your Business

0IA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.95

FAA A/FD Pages

Terminal Area Forecast

KFWA (29nm)
Mon, 8/17 7:20 AM EDT
Mon, 8/17 8:00 AM EDT - Tue, 8/18 8:00 AM EDT
IFR
Temporary 8:00 AM EDT - 10:00 AM EDT
Broken 900'
N/A
Calm
MVFR
8:00 AM EDT - 1:00 PM EDT
Broken 1,500'
6sm
290° 6kts
VFR
1:00 PM EDT - 10:00 PM EDT
Broken 3,500'
6sm
350° 9kts
VFR
10:00 PM EDT - 8:00 AM EDT
Few 5,000'
6sm
VRB° 3kts
TAF KFWA 171120Z 1712/1812 29006KT P6SM BKN015
   TEMPO 1712/1714 BKN009
   FM171700 35009KT P6SM BKN035
   FM180200 VRB03KT P6SM FEW050
0IA
EffectiveExpiresCategoryNOTAM
Domestic
8/11/26
0635Z
8/26/26
0535Z
!HUF 08/309 0IA OBST TOWER LGT (ASR 1218320) 411123.70N0854011.00W (5.9NM SSE 0IA) 1215.6FT (259.8FT AGL) U/S 2608110635-2608260535
8/9/26
2242Z
11/7/26
2342Z
!HUF 08/253 0IA OBST TOWER LGT (ASR 1063796) 411047.20N0853756.90W (7.1NM SSE 0IA) 1249.0FT (299.9FT AGL) U/S 2608092242-2611072342
7/29/26
0041Z
8/28/26
1700Z
!HUF 07/950 0IA OBST TOWER LGT (ASR 1027104) 410958.30N0852753.60W (12.9NM ESE 0IA) 1172.9FT (315.0FT AGL) U/S 2607290041-2608281700
No
Unknown
INDIANA DEPT OF NATURAL RESOURCES
402 WEST WASHINGTON ST RM W-255D
INDIANAPOLIS, IN 46204
Phone: 317-605-6023
BRIAN BAILEY
402 WEST WASHINGTON ST RM W-255D
INDIANAPOLIS, IN 46204
Phone: 317-605-6023
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
--
N/A
N/A
N/A
No
None
No
None
None
None
None
None

Runway 14W/32W

2675 ft. x 100 ft.
WATER
Fair
NONE


--
--
--
--
  Runway 14W Runway 32W
True Heading 140°320°
Traffic Pattern Right Left
Markings
Markings Condition
Latitude 41° 17' 15"N 41° 16' 55"N
Longitude 85° 42' 25"W 85° 42' 02"W
Elevation 838' 838'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1SEAPLANE OPS PROHIBITED BTN SS-SR. EXP HVY BOAT TFIC BTN MEMORIAL DAY AND LABOR DAY. DO NOT BLOCK BOAT RAMPS. SEAPLANE DOCKING AREAS LTD.
A14BOATING LAW ADMIR.
BARBEE LAKE (IATA: 0IA) is a public seaplane base located in WARSAW, IN, US.
