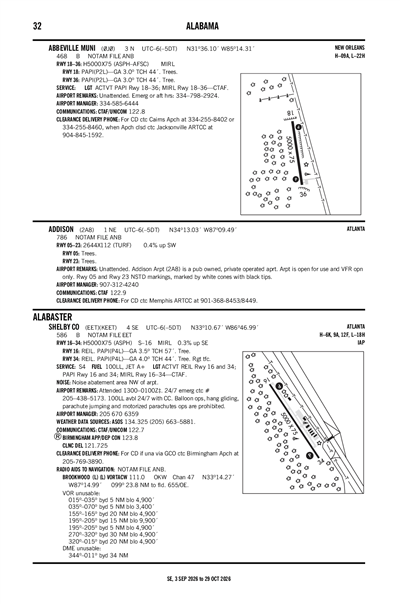

ABBEVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0J0
Local 0J0
ABBEVILLE MUNI
PublicPUB

3 miles N of ABBEVILLE, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 36' 06"N 85° 14' 19"W
Elevation
468' MSL
Pattern Alt
1468' MSL
Mag Variation
5°W
Declination
1°W
Fuel
None Listed
FSS
ANNISTON (ANB)
Sectional
NEW ORLEANS
ARTCC
JACKSONVILLE (ZJX)
Data Effective
9/3/26-10/1/26
KDHN (20nm) VFR
9:53 PM CDT
Few 12,000'
Few 10,000'
10sm
75°F
72°F
29.92"Hg
260° 3kts
AO1 RAE33 SLP126 P0001 60007 T02390222 53013
METAR KDHN 070253Z AUTO 26003KT 10SM FEW100 FEW120 24/22 A2992 RMK AO1 RAE33 SLP126 P0001 60007 T02390222 53013
+ Add Your Business

0J0 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT PAPI RWY 18/36; MIRL RWY 18/36 - CTAF.
UNICOM 122.8
UNICOM IS LCTD AT POLICE STATION.

FAA A/FD Pages

Terminal Area Forecast

KDHN (20nm)
Sun, 9/6 6:35 PM CDT
Sun, 9/6 7:00 PM CDT - Mon, 9/7 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 PM CDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 15,000'
Broken 7,000'
Scattered 4,000'
6sm
150° 5kts
VFR
10:00 PM CDT - 5:00 AM CDT
Overcast 15,000'
Broken 8,000'
6sm
260° 3kts
IFR
5:00 AM CDT - 9:00 AM CDT
Mist
Broken 500'
5sm
110° 3kts
VFR
9:00 AM CDT - 3:00 PM CDT
Broken 3,500'
Scattered 2,500'
6sm
060° 5kts
VFR
3:00 PM CDT - 7:00 PM CDT
Thunderstorm in vicinity
Broken 5,000'
Scattered 3,500'
6sm
050° 5kts
TAF KDHN 062335Z 0700/0724 15005KT P6SM -SHRA VCTS SCT040 BKN070CB OVC150
   FM070300 26003KT P6SM BKN080 OVC150
   FM071000 11003KT 5SM BR BKN005
   FM071400 06005KT P6SM SCT025 BKN035
   FM072000 05005KT P6SM VCTS SCT035 BKN050CB
0J0
EffectiveExpiresCategoryNOTAM
Domestic
9/6/26
0527Z
9/21/26
0427Z
!ANB 09/148 0J0 OBST TOWER LGT (ASR 1231885) 313928.90N0851628.90W (3.8NM NNW 0J0) 852.0FT (339.9FT AGL) U/S 2609060527-2609210427
8/30/26
0513Z
9/14/26
0413Z
!ANB 08/871 0J0 OBST TOWER LGT (ASR 1229985) 313416.10N0851548.10W (2.3NM SW 0J0) 676.2FT (284.1FT AGL) U/S 2608300513-2609140413
8/27/26
1838Z
11/25/26
1938Z
!ANB 08/802 0J0 OBST TOWER LGT (ASR 1239054) 313128.80N0851824.90W (5.9NM SW 0J0) 762.1FT (310.0FT AGL) U/S 2608271838-2611251938
8/14/26
0142Z
9/28/26
0142Z
!ANB 08/328 0J0 OBST TOWER LGT (ASR 1311874) 313232.08N0851401.79W (3.6NM S 0J0) 648FT (240FT AGL) U/S 2608140142-2609280142
7/18/26
1238Z
10/16/26
1238Z
!ANB 07/507 0J0 OBST TOWER LGT (ASR 1259590) 313259.70N0851642.00W (3.8NM SSW 0J0) 844.2FT (412.1FT AGL) U/S 2607181238-2610161238
No
UNATNDD
CITY OF ABBEVILLE
PO BOX 427
ABBEVILLE, AL 36310
Phone: 334-585-6444
MELISSA WILSON
PO BOX 427 101 E. WASHINGTON ST
ABBEVILLE, AL 36310
Phone: 334-585-6444
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT PAPI RWY 18/36; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
None

Runway 18/36

5000 ft. x 75 ft.
ASPH
Fair
AFSC
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 172°352°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 36' 31"N 31° 35' 42"N
Longitude 85° 14' 23"W 85° 14' 15"W
Elevation 465' 465'
Threshold Crossing Height 44 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC CAIRNS APCH AT 334-255-8402 OR 334-255-8460, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A110-2EMERG OR AFT HRS: 334-798-2924.
A81-APTACTVT PAPI RWY 18/36; MIRL RWY 18/36 - CTAF.
A82UNICOM IS LCTD AT POLICE STATION.
E111EXISTED PRIOR TO MAY 15, 1959.
ABBEVILLE MUNI (IATA: 0J0) is a public airport located in ABBEVILLE, AL, US.
