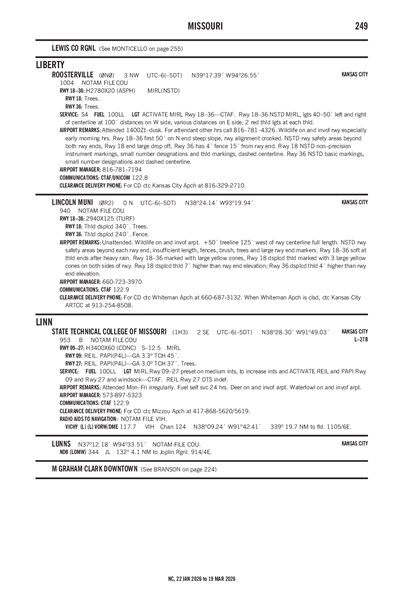

ROOSTERVILLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0N0
Local 0N0
ROOSTERVILLE
PublicPUB

3 miles NW of LIBERTY, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 17' 23"N 94° 26' 33"W
Elevation
1004' MSL
Pattern Alt
2004' MSL
Mag Variation
1°E
Declination
5°E
Fuel
100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
6/11/26-7/9/26
KGPH (7nm) VFR
6:55 PM CDT
Light Rain
Scattered 11,000'
10sm
73°F
70°F
29.94"Hg
Calm
AO2
METAR KGPH 252355Z AUTO 00000KT 10SM -RA SCT110 23/21 A2994 RMK AO2
+ Add Your Business

0N0 FBOs

Promote Listing
Aire Kare
UNICOM: 122.8
Phone: (816) 781-7194
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT MIRL RY 18/36 - CTAF.
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KMKC (12nm)
Thu, 6/25 6:21 PM CDT
Thu, 6/25 7:00 PM CDT - Fri, 6/26 7:00 PM CDT
MVFR
Temporary 7:00 PM CDT - 9:00 PM CDT
Light Showers and Rain and Mist
Scattered 3,000'
5sm
Calm
VFR
7:00 PM CDT - 10:00 PM CDT
Light Showers and Rain
Overcast 10,000'
Scattered 6,000'
6sm
060° 9kts
MVFR
10:00 PM CDT - 1:00 AM CDT
Light Showers and Rain
Overcast 4,000'
Broken 1,500'
4sm
080° 8kts
IFR
1:00 AM CDT - 5:00 AM CDT
Light Showers and Rain
Overcast 900'
5sm
070° 7kts
IFR
2:00 AM CDT - 5:00 AM CDT
Light Thunderstorm and Rain
Broken 600'
2sm
Calm
IFR
5:00 AM CDT - 11:00 AM CDT
Light Showers and Rain
Overcast 700'
5sm
070° 7kts
IFR
11:00 AM CDT - 7:00 PM CDT
Broken 700'
6sm
040° 8kts
TAF KMKC 252321Z 2600/2624 06009KT 6SM -SHRA SCT060 OVC100
   TEMPO 2600/2602 5SM -SHRA BR SCT030
   FM260300 08008KT 4SM -SHRA BKN015 OVC040
   FM260600 07007KT 5SM -SHRA OVC009
   PROB30 2607/2610 2SM -TSRA BKN006CB
   FM261000 07007KT 5SM -SHRA OVC007
   FM261600 04008KT P6SM BKN007
0N0
EffectiveExpiresCategoryNOTAM
Domestic
6/10/26
2300Z
7/20/26
1300Z
!COU 06/102 0N0 AD AP CLSD TO TRANSIENT ACFT 2606102300-2607201300
No
0800-DUSK
FOR ATTENDANT OTHER HRS CALL 816-781-4326.
AIRE KARE INC
11001 NE 112TH ST.
KANSAS CITY, MO 64157
Phone: 816-781-7194
PAUL STUBER
11001 NE 112TH ST.
KANSAS CITY, MO 64057
Phone: 816-781-7194
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
ACTVT MIRL RY 18/36 - CTAF.
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 18/36

2780 ft. x 20 ft.
ASPH
Good
NONE
NSTD

--
--
--
--
  Runway 18 Runway 36
True Heading 187°7°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 39° 17' 37"N 39° 17' 10"N
Longitude 94° 26' 31"W 94° 26' 35"W
Elevation 1,003' 1,004'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE ON & INVOF RY ESPECIALLY EARLY MORNING HRS.
A110-3NSTD RY SAFETY AREAS BEYOND BOTH RY ENDS; RY 18 END LARGE DROP OFF; RY 36 HAS 4 FT FENCE 15 FT FM RY END.
A110-4FOR CD CTC KANSAS CITY APCH AT 816-329-2710.
A17-M1FOR ATTENDANT OTHER HRS CALL 816-781-4326.
A30-18/36FIRST 50 FT ON NORTH END STEEP SLOPE; RY ALNMT CROOKED.
A40-18/36NSTD MIRL; LGTS 40-50 FT LEFT & RIGHT OF CNTRLN AT 100 FT DSTCS ON WEST SIDE; VARIOUS DSTCS ON EAST SIDE; 2 RED THLD LGTS AT EACH THLD.
A42-18_MARKRWY 18 NSTD NPI MARKINGS; SMALL NR DESIGNATIONS, THLD MARKINGS, & DASHED CNTRLN.
A42-36_MARKRWY 36 NSTD BASIC MARKINGS; SMALL NR DESIGNATIONS & DASHED CNTRLN.
A58-18RWY 18 1-20 FT GND; BLDGS & AUTO PARKING AREA 0-200 FT FM RY END, 10-125 FT R.
A58-36RWY 36 +1-4 FT GND & FC 25-30 FT FROM RY END L & R.
A81-APTACTVT MIRL RY 18/36 - CTAF.
E111PRVDD THE APCH TO EACH RWY IS MAINTD FOR A MIN 20:1 GLIDE SLOPE & THE TRANSITIONAL SFC BE MAINTD FOR A 7:1.
ROOSTERVILLE (IATA: 0N0) is a public airport located in LIBERTY, MO, US.
