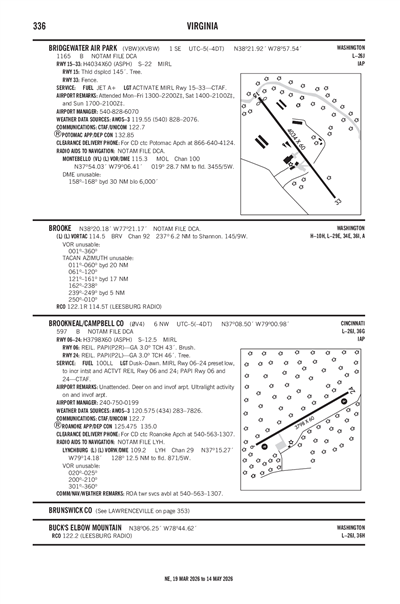

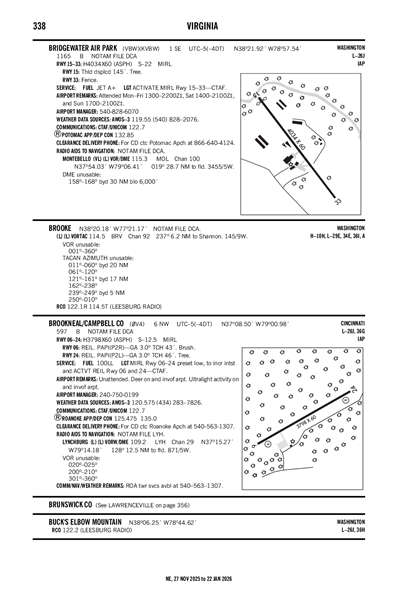

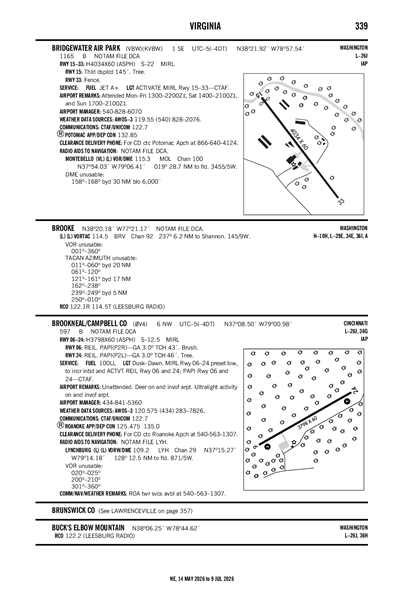

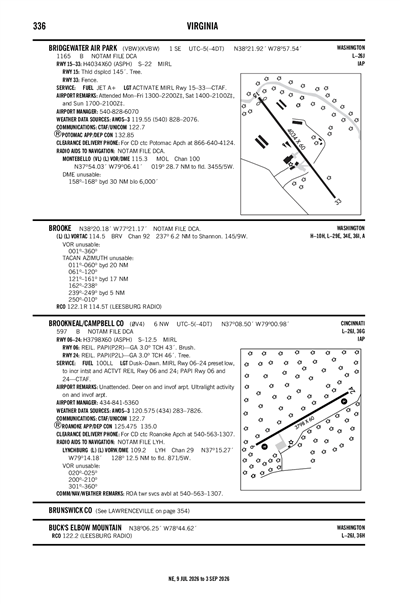

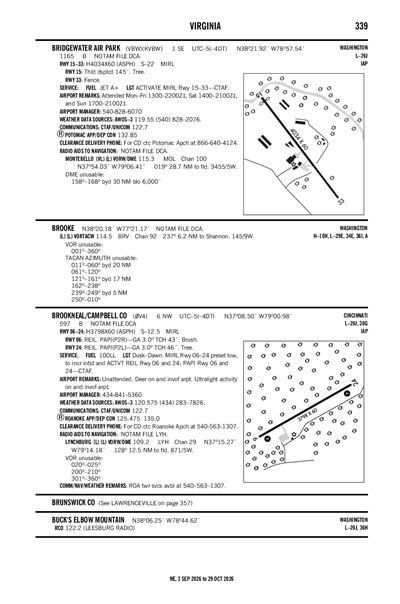

BROOKNEAL/CAMPBELL COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0V4
Local 0V4
BROOKNEAL/CAMPBELL COUNTY
PublicPUB

6 miles NW of BROOKNEAL, VA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 08' 30"N 79° 00' 59"W
Elevation
597' MSL
Pattern Alt
1597' MSL
Mag Variation
9°W
Declination
9°W
Fuel
100LL
FSS
LEESBURG (DCA)
Sectional
CINCINNATI
ARTCC
WASHINGTON (ZDC)
Data Effective
7/9/26-8/6/26
K0V4 MVFR
10:35 PM EDT
Overcast 1,900'
10sm
68°F
68°F
30.04"Hg
090° 5kts
AO1
METAR K0V4 260235Z AUTO 09005KT 10SM OVC019 20/20 A3004 RMK AO1
+ Add Your Business

0V4 FBOs

Campbell County Airport
UNICOM: 122.7
Phone: (540) 297-4859
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.575
(434) 283-7826

Common

CTAF 122.7
DUSK-DAWN. MIRL RWY 06/24 PRESET LOW, TO INCR INTST AND ACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24 - CTAF.
UNICOM 122.7

Approach

ROANOKE APPROACH 125.475
EAST OF LYH VORTAC
ROANOKE APPROACH 135.0
Initial Contact - WEST OF LYH VORTAC

Departure

ROANOKE DEPARTURE 125.475
EAST OF LYH VORTAC
ROANOKE DEPARTURE 135.0
Initial Contact - WEST OF LYH VORTAC

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLYH (14nm)
Sat, 7/25 7:20 PM EDT
Sat, 7/25 8:00 PM EDT - Sun, 7/26 8:00 PM EDT
VFR
8:00 PM EDT - 2:00 AM EDT
Scattered 2,800'
6sm
180° 3kts
MVFR
2:00 AM EDT - 4:00 AM EDT
Mist
Broken 4,500'
Scattered 500'
4sm
Calm
IFR
4:00 AM EDT - 9:30 AM EDT
Mist
Broken 8,000'
Scattered 300'
1.5sm
Calm
LIFR
Temporary 6:00 AM EDT - 8:00 AM EDT
Mist
Broken 300'
0.75sm
Calm
VFR
9:30 AM EDT - 12:00 PM EDT
Few 1,100'
6sm
250° 3kts
VFR
12:00 PM EDT - 8:00 PM EDT
Broken 5,000'
6sm
070° 3kts
TAF KLYH 252320Z 2600/2624 18003KT P6SM SCT028
   FM260600 00000KT 4SM BR SCT005 BKN045
   FM260800 00000KT 1 1/2SM BR SCT003 BKN080
   TEMPO 2610/2612 3/4SM BR BKN003
   FM261330 25003KT P6SM FEW011
   FM261600 07003KT P6SM BKN050
0V4
EffectiveExpiresCategoryNOTAM
Domestic
7/20/26
2111Z
Runway!DCA 07/587 0V4 RWY 06 /24 REDL U/S 2607202111-2701202111EST
6/10/26
1951Z
10/14/26
1800Z
!DCA 06/301 0V4 OBST TOWER LGT (ASR 1018679) 371059.60N0785014.30W (8.9NM ENE 0V4) 1065.9FT (328.1FT AGL) U/S 2606101951-2610141800
No
UNATNDD
BROOKNEAL/CAMPBELL CO. AUTH
PO BOX 100 133 RUNWAY ROAD
RUSTBURG, VA 24588
Phone: 434-592-9595
JERRY JENNINGS
85 CARDEN LANE PO BOX 100
GLADYS, VA 24554
Phone: 434-841-5360
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
DCA
--
DUSK-DAWN. MIRL RWY 06/24 PRESET LOW, TO INCR INTST AND ACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 06/24

3798 ft. x 60 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 06 Runway 24
True Heading 53°233°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 08' 19"N 37° 08' 41"N
Longitude 79° 01' 18"W 79° 00' 40"W
Elevation 596' 589'
Threshold Crossing Height 43 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1ULTRALGT ACTIVITY ON & INVOF ARPT.
A110-2DEER ON & INVOF ARPT.
A110-3ROA TWR SVCS AVBL AT 540-563-1307.
A110-4FOR CD CTC ROANOKE APCH AT 540-563-1307.
A57-06CTLG OBSTN EXCEEDS 45 DEG SLP.
A58-0610 FT BRUSH ON EACH SIDE OF RWY, 200 FT OFF CNTRLN.
A58-248 FT BRUSH, 80 FT R ON APCH.
A81-APTDUSK-DAWN. MIRL RWY 06/24 PRESET LOW, TO INCR INTST AND ACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24 - CTAF.
E111DETERMINATION PENDING.
BROOKNEAL/CAMPBELL COUNTY (IATA: 0V4) is a public airport located in BROOKNEAL, VA, US.
