KAYENTA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0V7
IATA MVMLocal 0V7
KAYENTA
PublicPUB

2 miles SE of KAYENTA, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 42' 59"N 110° 13' 42"W
Elevation
5688' MSL
Pattern Alt
6688' MSL
Mag Variation
10°E
Declination
13°E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
4/16/26-5/14/26
KU96 (46nm) VFR
12:55 PM MDT
Broken 22,000'
10sm
67°F
11°F
29.84"Hg
200° 7kts
Gusts 17kts
AO2 T01951118
METAR KU96 241855Z AUTO 20007G17KT 160V250 10SM BKN220 20/M12 A2984 RMK AO2 T01951118
+ Add Your Business

0V7 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.325
(928) 697-3638

Common

CTAF 122.9
ACTVT PAPI RWY 05 & 23; MIRL RWY 05/23 - CTAF.

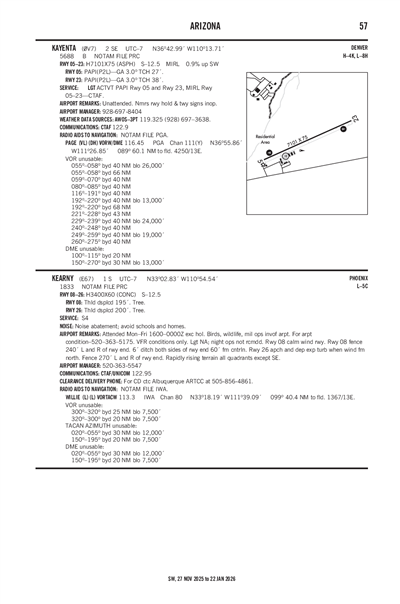

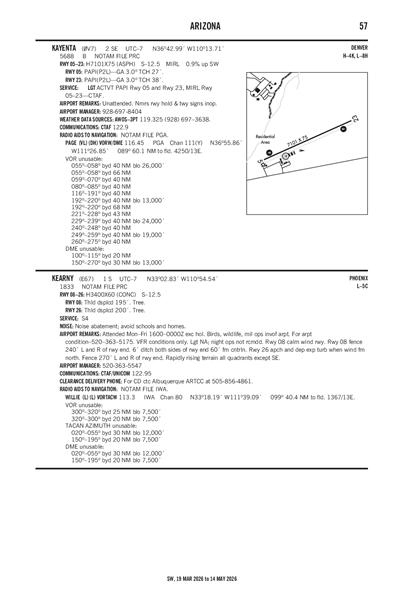

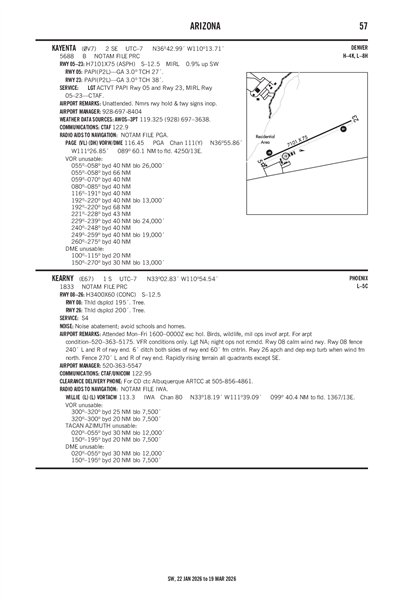

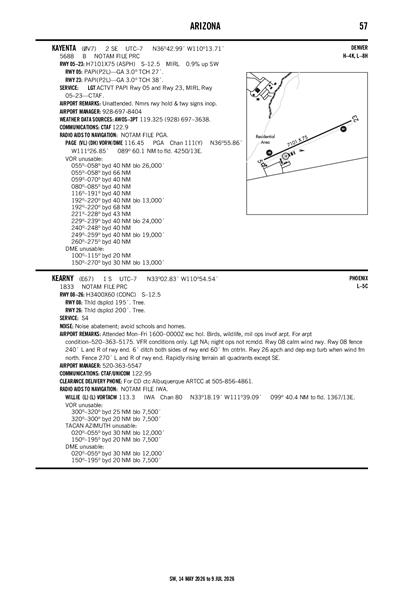

FAA A/FD Pages

Terminal Area Forecast

KPGA (60nm)
Fri, 4/24 10:30 AM MST
Fri, 4/24 11:00 AM MST - Sat, 4/25 11:00 AM MST
VFR
11:00 AM MST - 3:00 PM MST
Scattered 25,000'
6sm
VRB° 6kts
VFR
3:00 PM MST - 8:00 PM MST
Broken 25,000'
Scattered 12,000'
6sm
250° 12kts
Gusts 20kts
VFR
8:00 PM MST - 11:00 AM MST
Scattered 25,000'
Few 12,000'
6sm
220° 5kts
TAF KPGA 241730Z 2418/2518 VRB06KT P6SM SCT250
   FM242200 25012G20KT P6SM SCT120 BKN250
   FM250300 22005KT P6SM FEW120 SCT250
0V7
EffectiveExpiresCategoryNOTAM
Domestic
1/20/26
2112Z
4/30/26
2359Z
Runway!PRC 01/194 0V7 RWY 05 RWY END ID LGT U/S 2601202112-2604302359
1/20/26
2109Z
4/30/26
2359Z
!PRC 01/193 0V7 AD AP WINDCONE LGT U/S 2601202109-2604302359
1/20/26
2108Z
4/30/26
2359Z
Runway!PRC 01/192 0V7 RWY 23 PAPI U/S 2601202108-2604302359
1/20/26
2107Z
4/30/26
2359Z
Runway!PRC 01/191 0V7 RWY 05 PAPI U/S 2601202107-2604302359
1/20/26
2106Z
4/30/26
2359Z
Runway!PRC 01/190 0V7 RWY 23 RWY END ID LGT U/S 2601202106-2604302359
No
UNATNDD
KAYENTA TOWNSHIP
P.O. BOX 1490 PO BOX 4620
KAYENTA, AZ 86033
Phone: 928-697-0068
STEVE YOUNG
PUBLIC WORKS DEPT P.O. BOX 1490
KAYENTA, AZ 86033
Phone: 928-697-8404
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT PAPI RWY 05 & 23; MIRL RWY 05/23 - CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 05/23

7101 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 66°246°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 42' 45"N 36° 43' 14"N
Longitude 110° 14' 22"W 110° 13' 03"W
Elevation 5,688' 5,622'
Threshold Crossing Height 27 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No
A110-1NMRS RWY HOLD & TWY SIGNS INOP.
A14JARVIS WILLIAMS - 928-697-8451.
A58-05+3 FT BUSH 150 FT FM TH, 25 FT L OF CNTRLN.
A75-HBRING OWN ROPES OR CHAINS.
A81-APTACTVT PAPI RWY 05 & 23; MIRL RWY 05/23 - CTAF.
E111ESTAB PRIOR 5/15/59.
KAYENTA (IATA: 0V7) is a public airport located in KAYENTA, AZ, US.
