10D

Local 10D

WINSTED MUNI

PublicPUB

1 miles SW of WINSTED, MN, US

View on Map

Status

Operational

Coordinates

44° 57' 14"N 94° 03' 55"W

Elevation

1030' MSL

Pattern Alt

2030' MSL

Mag Variation

1°E

Declination

4°E

Fuel

100LL

FSS

PRINCETON (PNM)

Sectional

TWIN CITIES

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

7/9/26-8/6/26

KGYL (12nm) VFR

9:15 PM CDT RAW

Scattered 5,000'
Scattered 2,100'

Viz

10sm

Temp

78°F

Dew

75°F

Pres

29.86"Hg

Wind

Calm

RMK

AO2 T02560241

METAR KGYL 260215Z AUTO 00000KT 10SM SCT021 SCT050 26/24 A2986 RMK AO2 T02560241

Add Your Business

10D FBOs

Promote Listing

Winsted Municipal Airport

Phone: (320) 485-2201

0 Reviews (Read | Sign In To Write)

Your Information

Business

Common

CTAF

122.9

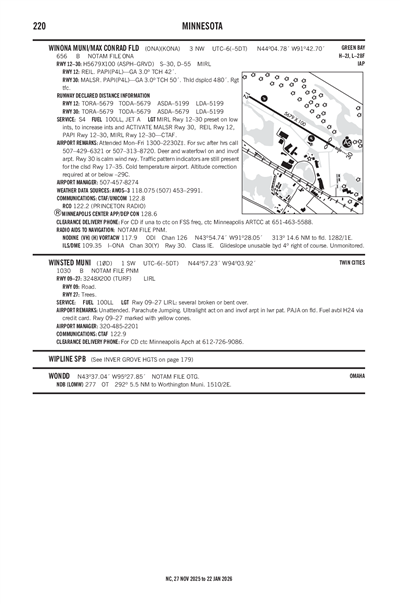

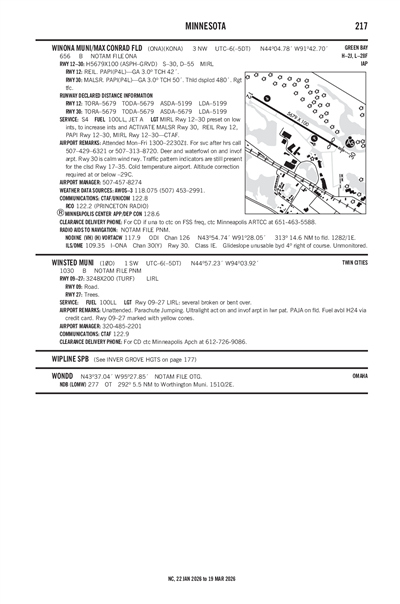

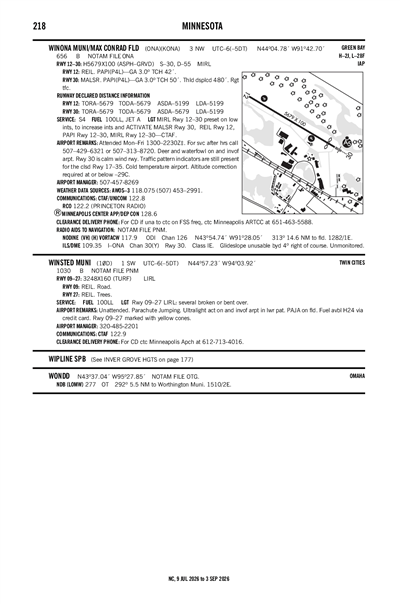

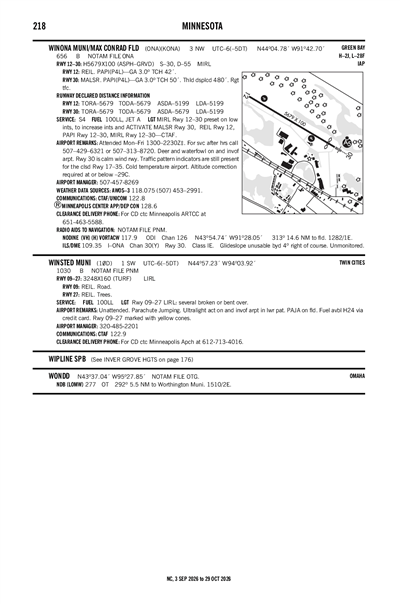

FAA A/FD Pages

FAA A/FD Page

Terminal Area Forecast

KSTC (35nm)

RAW

Reported

Sat, 7/25 6:20 PM CDT

Valid

Sat, 7/25 7:00 PM CDT - Sun, 7/26 7:00 PM CDT

VFR

7:00 PM CDT - 10:00 AM CDT

Few 25,000'

Viz

6sm

Wind

VRB° 4kts

VFR

10:00 AM CDT - 7:00 PM CDT

Scattered 25,000'

Viz

6sm

Wind

200° 8kts

TAF KSTC 252320Z 2600/2624 VRB04KT P6SM FEW250
FM261500 20008KT P6SM SCT250

10D

Effective	Expires	NOTAM
Domestic
7/2/26 2144Z	9/30/26 2144Z	!PNM 07/024 10D OBST TOWER LGT (ASR 1207944) 450254.00N0940457.10W (5.7NM N 10D) 1330.7FT (250.0FT AGL) U/S 2607022144-2609302144
6/29/26 0944Z	10/27/26 0944Z	!PNM 06/549 10D OBST TOWER LGT (ASR 1221642) 450433.10N0940642.20W (7.6NM NNW 10D) 1362.9FT (311.0FT AGL) U/S 2606290944-2610270944
6/15/26 2003Z	9/13/26 2003Z	!PNM 06/306 10D OBST TOWER LGT (ASR 1245798) 445222.80N0940505.50W (4.9NM S 10D) 1387.8FT (384.8FT AGL) U/S 2606152003-2609132003

ATC Tower

Attendance

UNATNDD

Owner

CITY OF WINSTED
PO BOX 126
WINSTED, MN 55395
Phone: 320-485-2366

Manager

DAVID MEYER
PO BOX 126
WINSTED, MN 55395
Phone: 320-485-2201

FSS

PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF

NOTAM

PNM

Light Schedule

Sunset to Sunrise

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Parachute Jump Activity
Aircraft Sales

Runway 09/27

Dimensions

3248 ft. x 160 ft.

Surface Type

TURF

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

LOW

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 09	Runway 27
True Heading	90°	270°
Traffic Pattern
Markings
Markings Condition
Latitude	44° 57' 14"N	44° 57' 14"N
Longitude	94° 04' 18"W	94° 03' 33"W
Elevation	1,021'	1,022'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	ULTRALIGHT ACT ON & INVOF ARPT IN LWR PAT.
A110-2	PAJA ON FLD.
A110-3	FOR CD CTC MINNEAPOLIS APCH AT 612-713-4016.
A16	OR 612-986-2184.
A40-09/27	SVRL BKN OR BENT OVR.
A42-09_MARK	YELLOW CONES.
A42-27_MARK	YELLOW CONES.
A70-100LL	FUEL AVBL H24 VIA CREDIT CARD.

WINSTED MUNI (IATA: 10D) is a public airport located in WINSTED, MN, US.
