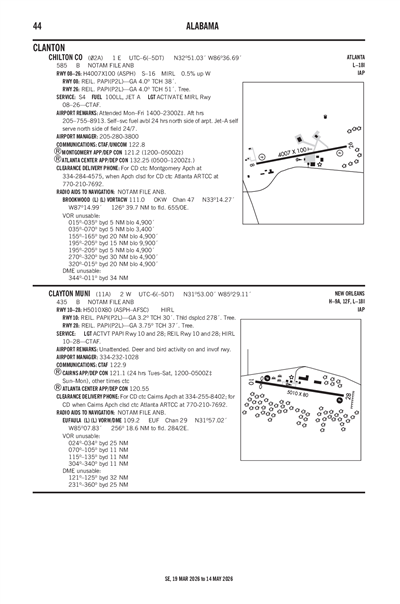

CLAYTON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

11A
Local 11A
CLAYTON MUNI
PublicPUB

2 miles W of CLAYTON, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 52' 60"N 85° 29' 07"W
Elevation
435' MSL
Pattern Alt
1435' MSL
Mag Variation
4°W
Declination
4°W
Fuel
None Listed
FSS
ANNISTON (ANB)
Sectional
NEW ORLEANS
ARTCC
ATLANTA (ZTL)
Data Effective
9/3/26-10/1/26
KEUF (19nm) VFR
8:58 PM CDT
Clear
10sm
73°F
73°F
29.87"Hg
Calm
AO1 SLP111 T02280228
METAR KEUF 070158Z AUTO 00000KT 10SM CLR 23/23 A2987 RMK AO1 SLP111 T02280228
+ Add Your Business

11A FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT PAPI RWY 10 & 28; REIL RWY 10 & 28; HIRL RWY 10/28 - CTAF.

Approach

CAIRNS APPROACH 121.1

Departure

CAIRNS DEPARTURE 121.1

Center

CAIRNS CENTER 120.55
LOW, APCH/DEP SVC PRVDD BY ATLANTA ARTCC ON FREQS 120.55/270.25 (MONTGOMERY RCAG) WHEN CAIRNS APCH/DEP CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDHN (34nm)
Sun, 9/6 6:35 PM CDT
Sun, 9/6 7:00 PM CDT - Mon, 9/7 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 PM CDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 15,000'
Broken 7,000'
Scattered 4,000'
6sm
150° 5kts
VFR
10:00 PM CDT - 5:00 AM CDT
Overcast 15,000'
Broken 8,000'
6sm
260° 3kts
IFR
5:00 AM CDT - 9:00 AM CDT
Mist
Broken 500'
5sm
110° 3kts
VFR
9:00 AM CDT - 3:00 PM CDT
Broken 3,500'
Scattered 2,500'
6sm
060° 5kts
VFR
3:00 PM CDT - 7:00 PM CDT
Thunderstorm in vicinity
Broken 5,000'
Scattered 3,500'
6sm
050° 5kts
TAF KDHN 062335Z 0700/0724 15005KT P6SM -SHRA VCTS SCT040 BKN070CB OVC150
   FM070300 26003KT P6SM BKN080 OVC150
   FM071000 11003KT 5SM BR BKN005
   FM071400 06005KT P6SM SCT025 BKN035
   FM072000 05005KT P6SM VCTS SCT035 BKN050CB
11A
EffectiveExpiresCategoryNOTAM
Domestic
9/6/26
2224Z
10/21/26
2224Z
!ANB 09/178 11A OBST TOWER LGT (ASN 2019-ASO-21918-OE) 314249N0853701W (12.3NM SSW 11A) 898FT (365FT AGL) U/S 2609062224-2610212224
9/2/26
1418Z
10/17/26
1417Z
!ANB 09/045 11A OBST TOWER LGT (ASN 2017-ASO-19075-OE) 314629N0852116W (9.2NM SE 11A) 813FT (365FT AGL) U/S 2609021418-2610171417
9/2/26
0424Z
9/17/26
0324Z
!ANB 09/031 11A OBST TOWER LGT (ASR 1264022) 315319.00N0854226.70W (11.4NM W 11A) 908.1FT (411.1FT AGL) U/S 2609020424-2609170324
8/28/26
0254Z
12/26/26
0254Z
!ANB 08/813 11A OBST TOWER LGT (ASR 1246593) 315237.90N0852109.60W (6.8NM E 11A) 870.1FT (310.0FT AGL) U/S 2608280254-2612260254
6/17/26
1447Z
Runway!ANB 06/651 11A RWY 10 PAPI U/S 2606171447-2612172111EST
6/17/26
1446Z
Runway!ANB 06/650 11A RWY 10 RWY END ID LGT U/S 2606171446-2612172111EST
No
UNATNDD
CITY OF CLAYTON
PO BOX 385
CLAYTON, AL 36016
Phone: 334-775-9176
DARRELL BYRD
25 ROBERTSON AIRPORT RD.
CLAYTON, AL 36016
Phone: 334-232-1028
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT PAPI RWY 10 & 28; REIL RWY 10 & 28; HIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 10/28

5010 ft. x 80 ft.
ASPH
Fair
AFSC
HIGH

--
--
--
--
  Runway 10 Runway 28
True Heading 97°277°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 31° 53' 03"N 31° 52' 57"N
Longitude 85° 29' 36"W 85° 28' 38"W
Elevation 422' 434'
Threshold Crossing Height 30 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3.2° 3.75°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER AND BIRD ACTVTY ON AND INVOF RWY.
A110-2FOR CD CTC CAIRNS APCH AT 334-255-8402; FOR CD WHEN CAIRNS APCH CLSD CTC ATLANTA ARTCC AT 770-210-7692.
A57-10APCH RATIO 19:1 FM DSPLCD THR.
A81-APTACTVT PAPI RWY 10 & 28; REIL RWY 10 & 28; HIRL RWY 10/28 - CTAF.
E111VFR ONLY
CLAYTON MUNI (IATA: 11A) is a public airport located in CLAYTON, AL, US.
