iFlightPlanner



...

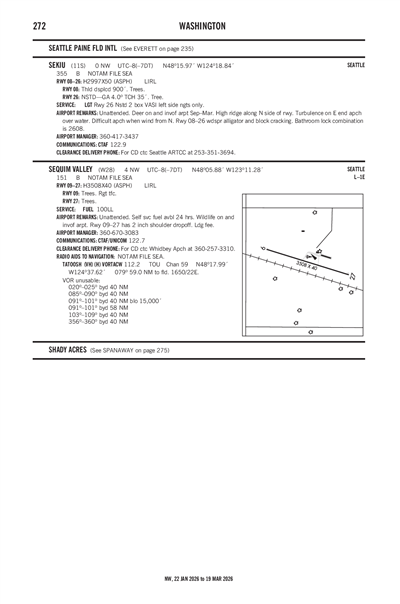

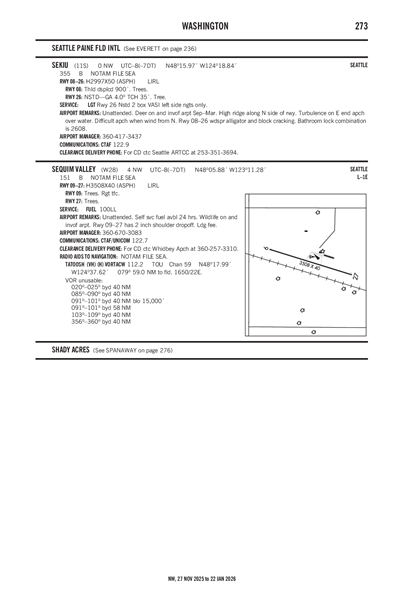

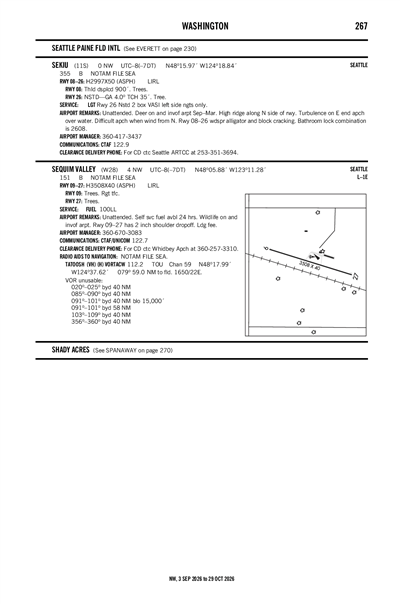

SEKIU - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

11S
Local 11S
SEKIU
PublicPUB

0 miles NW of SEKIU, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 15' 58"N 124° 18' 50"W
Elevation
355' MSL
Pattern Alt
1355' MSL
Mag Variation
16°E
Declination
21°E
Fuel
None Listed
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
6/11/26-7/9/26
CWQK (31nm) VFR
4:00 PM PDT
No Clouds
N/A
55°F
50°F
29.86"Hg
290° 11kts
AO1 SLP109 T01300100 56013
METAR CWQK 252300Z AUTO 29011KT 13/10 RMK AO1 SLP109 T01300100 56013
+ Add Your Business

11S FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KCLM (34nm)
Thu, 6/25 4:20 PM PDT
Thu, 6/25 5:00 PM PDT - Fri, 6/26 5:00 PM PDT
MVFR
5:00 PM PDT - 10:00 PM PDT
Light Showers and Rain
Broken 1,200'
6sm
300° 6kts
MVFR
10:00 PM PDT - 4:00 AM PDT
Light Showers and Rain
Overcast 1,500'
6sm
VRB° 2kts
IFR
4:00 AM PDT - 10:00 AM PDT
Light Showers and Rain
Overcast 900'
6sm
Calm
MVFR
10:00 AM PDT - 2:00 PM PDT
Showers in vicinity
Overcast 1,300'
6sm
320° 8kts
MVFR
2:00 PM PDT - 5:00 PM PDT
Showers in vicinity
Overcast 2,500'
6sm
320° 10kts
Gusts 20kts
TAF KCLM 252320Z 2600/2624 30006KT P6SM -SHRA BKN012
   FM260500 VRB02KT P6SM -SHRA OVC015
   FM261100 00000KT P6SM -SHRA OVC009
   FM261700 32008KT P6SM VCSH OVC013
   FM262100 32010G20KT P6SM VCSH OVC025
11S
No NOTAM Available
No
UNATNDD
PORT OF PORT ANGELES
338 W FIRST STREET PO BOX 1350
PORT ANGELES, WA 98362
Phone: 360-457-8527
JAMES ALTON
338 WEST FIRST STREET PO BOX 1350
PORT ANGELES, WA 98362
Phone: 360-417-3437
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
SEA
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
None

Runway 08/26

2997 ft. x 50 ft.
ASPH
Poor
NONE
LOW

--
--
--
--
  Runway 08 Runway 26
True Heading 100°280°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 48° 16' 01"N 48° 15' 55"N
Longitude 124° 19' 12"W 124° 18' 28"W
Elevation 312' 355'
Threshold Crossing Height -- 35 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- NSTD
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TURBULENCE ON E END APCH OVER WATER. DIFFICULT APCH WHEN WIND IS FROM N.
A110-2HI RIDGE ALONG N SIDE OF RWY.
A110-3DEER ON & INVOF ARPT SEP-MAR.
A110-4BRUSH, BLDGS, FENCES IN PRIMARY SFC.
A110-5TALL TREES IN TRANSITION AREAS BOTH SIDE OF RWY.
A110-7FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A110-8BATHROOM LOCK COMBINATION IS 2608.
A33-08/26_CONDWDSPR ALLIGATOR AND BLOCK CRACKING.
A43-26NSTD 2-BOX VASI LEFT SIDE NGTS ONLY.
A57-08RY 08 APCH SLOPE 50:1 FROM DSPLCD THLD.
A58-0839 FT TREES 125 FT L & R OF CNTRLN 0 FT FM THR.
A58-26RWY 26, CLIFF, 47 FT R AND 71 FT L FM RWY END.
A75-TPILOTS BRING OWN ROPES.
E111ESTABLISHED PRIOR TO 15 MAY 1959.
SEKIU (IATA: 11S) is a public airport located in SEKIU, WA, US.
