PORT BUCYRUS/CRAWFORD COUNTY - Airport Diagram

17G

Local 17G

PORT BUCYRUS/CRAWFORD COUNTY

PublicPUB

1 miles S of BUCYRUS, OH, US

View on Map

Status

Operational

Coordinates

40° 46' 54"N 82° 58' 29"W

Elevation

1008' MSL

Pattern Alt

2008' MSL

Mag Variation

7°W

Declination

7°W

Fuel

JET A (FSII), 100LL

FSS

CLEVELAND (CLE)

Sectional

DETROIT

ARTCC

CLEVELAND (ZOB)

Data Effective

2/19/26-3/19/26

KMNN (11nm) VFR

11:53 AM EDT RAW

Clear

Viz

10sm

Temp

64°F

Dew

38°F

Pres

29.76"Hg

Wind

190° 22kts

Gusts 33kts

RMK

AO2 PK WND 19033/1551 SLP078 T01780033

METAR KMNN 151553Z AUTO 19022G33KT 10SM CLR 18/03 A2976 RMK AO2 PK WND 19033/1551 SLP078 T01780033

Add Your Business

17G FBOs

Promote Listing

DeTray Aviation

UNICOM: 122.8

Phone: (419) 562-7596

Other: (419) 561-0158

0 Reviews (Read | Sign In To Write)

EPIC

As of 3/3	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	5.63		5.99

Fuel Notes

Prices include tax

Fuel Hours

100LL available during business hours 8:30 AM to 5:00 PM only. After hour call out fee applies.
Jet A requires 24 hour notice.

Your Information

Business

Weather and Advisory

AWOS-3	126.625
(419) 562-0279

Common

CTAF	122.8
ACTVT WINDSOCK; WIND T; REIL RWY 04 & 22; MIRL RWY 04/22 - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
UNICOM	122.8

Approach

CLEVELAND APPROACH

128.35

Departure

CLEVELAND DEPARTURE

128.35

Center

CLEVELAND CENTER	135.1
LOW, APCH/DEP SVC PRVDD BY CLEVELAND APCH (CLE) 0600-0100. APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 135.1/291.725 (FINDLAY RCAG) 0100-0600.

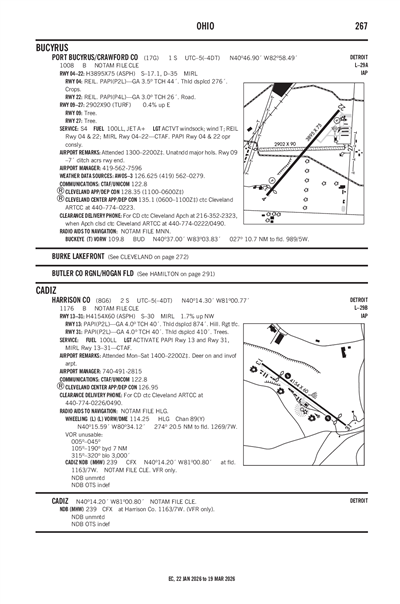

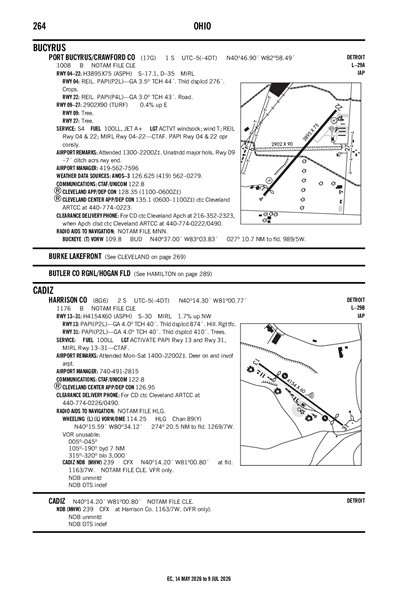

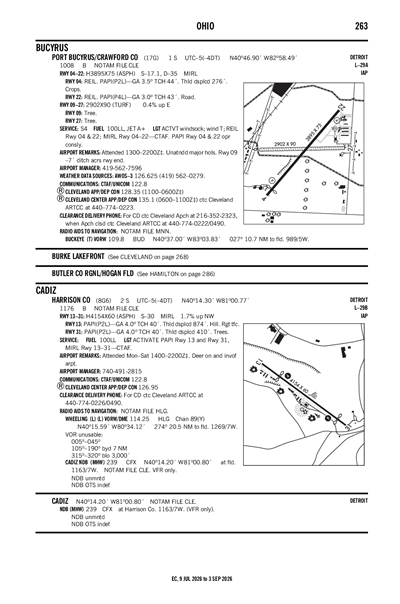

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

TAKEOFF MINIMUMS

Instrument Approach

Terminal Area Forecast

KMFD (21nm)

RAW

Reported

Sun, 3/15 7:39 AM EDT

Valid

Sun, 3/15 8:00 AM EDT - Mon, 3/16 8:00 AM EDT

VFR

8:00 AM EDT - 10:00 AM EDT

Broken 10,000'

Viz

6sm

Wind

150° 11kts

Gusts 22kts

VFR

10:00 AM EDT - 3:00 PM EDT

Broken 25,000'

Viz

6sm

Wind

180° 18kts

Gusts 31kts

VFR

3:00 PM EDT - 9:00 PM EDT

Scattered 25,000'

Viz

6sm

Wind

180° 22kts

Gusts 41kts

VFR

9:00 PM EDT - 3:00 AM EDT

Broken 5,000'

Viz

6sm

Wind

160° 21kts

Gusts 30kts

MVFR

3:00 AM EDT - 5:00 AM EDT

Showers and Rain and Mist

Overcast 2,500'

Viz

6sm

Wind

180° 22kts

Gusts 42kts

VFR

5:00 AM EDT - 8:00 AM EDT

Showers in vicinity

Overcast 3,500'

Viz

6sm

Wind

190° 21kts

Gusts 28kts

TAF KMFD 151139Z 1512/1612 15011G22KT P6SM BKN100
   FM151400 18018G31KT P6SM BKN250
   FM151900 18022G41KT P6SM SCT250
   FM160100 16021G30KT P6SM BKN050
   FM160700 18022G42KT 6SM SHRA BR OVC025
   FM160900 19021G28KT P6SM VCSH OVC035

17G

Effective	Expires	Category	NOTAM
Domestic
3/14/26 1450Z	3/31/26 2359Z		!CLE 03/556 17G AD AP JET A FUEL NOT AVBL 2603141450-2603312359
3/6/26 0042Z	7/4/26 0042Z		!CLE 03/145 17G OBST TOWER LGT (ASR 1226345) 404428.20N0830425.60W (5.1NM WSW 17G) 1224.1FT (254.9FT AGL) U/S 2603060042-2607040042
3/2/26 1132Z	3/31/26 2359Z	Runway	!CLE 03/024 17G RWY 22 PAPI U/S 2603021132-2603312359
12/11/25 0943Z	3/31/26 2359Z	Runway	!CLE 12/495 17G RWY 09/27 SFC COND NOT REP 2512110943-2603312359

ATC Tower

Attendance

0800-1700
UNATNDD MAJOR HOLS.

Owner

CITY OF BUCYRUS
PO BOX 1244
BUCYRUS, OH 44820
Phone: 419-562-6767

Manager

KEVIN DETRAY
2254 ISAAC BEAL RD
BUCYRUS, OH 44820
Phone: 419-562-7596

FSS

CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF

NOTAM

CLE

Light Schedule

Lights

ACTVT WINDSOCK; WIND T; REIL RWY 04 & 22; MIRL RWY 04/22 - CTAF. PAPI RWY 04 & 22 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

Dimensions

3895 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

17,000lbs

Double Wheel

35,000lbs

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	36°	216°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	40° 46' 38"N	40° 47' 09"N
Longitude	82° 58' 44"W	82° 58' 14"W
Elevation	1,000'	999'
Threshold Crossing Height	44 ft. AGL	26 ft. AGL
Visual Glide Path Angle	3.5°	3°
Visual Slope Indicator	P2L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

Runway 09/27

Dimensions

2902 ft. x 90 ft.

Surface Type

TURF

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 09	Runway 27
True Heading	86°	266°
Traffic Pattern	Left	Left
Markings	NONE	NONE
Markings Condition
Latitude	40° 46' 53"N	40° 46' 55"N
Longitude	82° 58' 48"W	82° 58' 11"W
Elevation	996'	1,008'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110-2	FOR CD CTC CLEVELAND APCH AT 216-352-2323, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0222/0490.
A110-3	RWY 09: -7 FT DITCH ACRS RWY END.
A14	KNDETRAY@GMAIL.COM.
A17-M3	UNATNDD MAJOR HOLS.
A57-04	OBSTN CLNC SLP 0:1 TO THR OVR +5 FT CROPS, 201 FT DIST, 230 FT L; 0:1 TO DTHR OVR +5 FT CROPS, 200 FT DIST, 230 FT L.
A57-09	OBSTN CLNC SLP 5:1 OVR +60 FT TREE, 325 FT DIST, 20 FT R.
A57-22	OBSTN CLNC SLP 11:1 OVR +15 FT ROAD, 375 FT DIST, 270 FT L.
A57-27	OBSTN CLNC SLP 5:1 OVR +55 FT TREE, 275 FT DIST, 70 FT L.
A58-04	+5 FT CROPS, 200 FT DIST FM DTHR, 230 FT L, 0:1.
A75-H	PRIOR CDN RQRD FOR TSNT HNGR.
A81-APT	ACTVT WINDSOCK; WIND T; REIL RWY 04 & 22; MIRL RWY 04/22 - CTAF. PAPI RWY 04 & 22 OPR CONSLY.

PORT BUCYRUS/CRAWFORD COUNTY (IATA: 17G) is a public airport located in BUCYRUS, OH, US.
