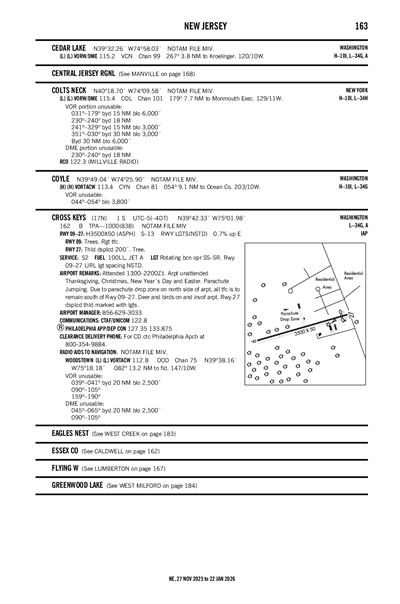

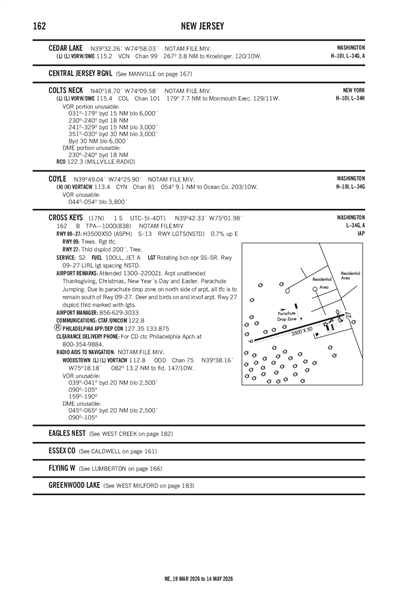

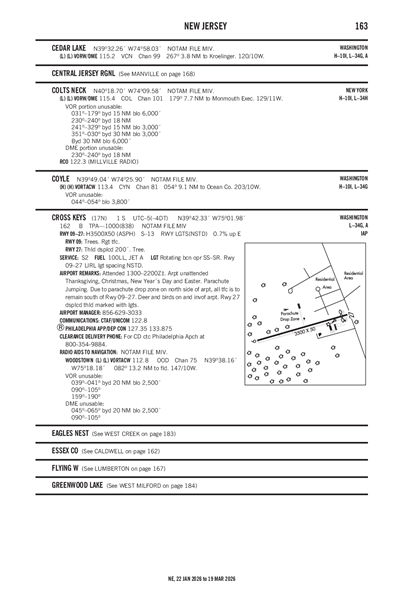

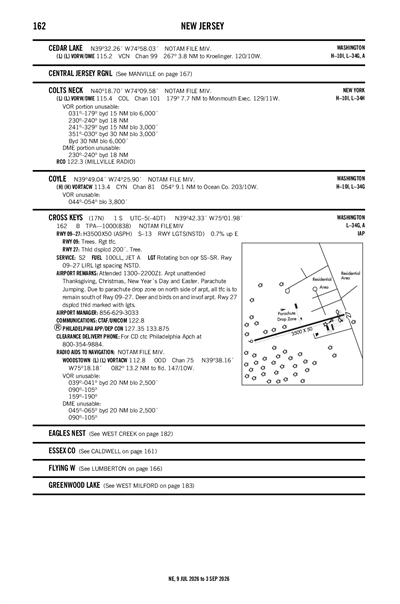

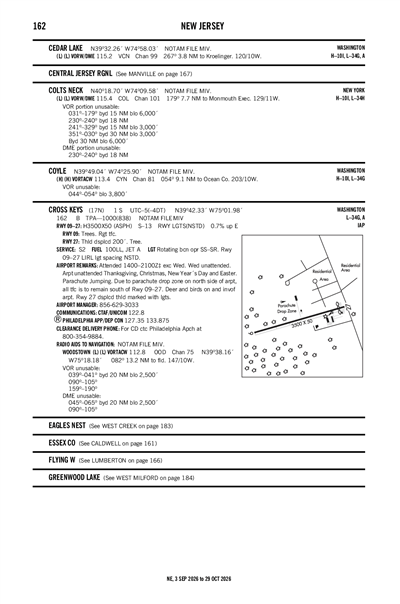

CROSS KEYS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

17N
Local 17N
CROSS KEYS
PublicPUB

1 miles S of CROSS KEYS, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 42' 20"N 75° 01' 59"W
Elevation
162' MSL
Pattern Alt
1000' MSL
Mag Variation
12°W
Declination
10°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
4/16/26-5/14/26
KPHL (14nm) VFR
3:54 AM EDT
Broken 9,000'
Scattered 6,000'
10sm
52°F
45°F
29.92"Hg
060° 7kts
AO2 RAB31E47 SLP131 P0000 T01110072 $
METAR KPHL 250754Z 06007KT 10SM SCT060 BKN090 11/07 A2992 RMK AO2 RAB31E47 SLP131 P0000 T01110072 $
+ Add Your Business

17N FBOs

Promote Listing
Cross Keys Airport
UNICOM: 122.8
Phone: (856) 629-3033
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/1
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.85
Full Serve 7.20
Fuel Notes
Prices include tax
JET A located midfield at the Skydive facility. Call on 122.8 or (856) 629-3033 for assistance.
Fuel Hours
Full serve available 9a-4p daily, except holidays, and 24hrs for self serve account holders. call 856-629-3033 for after hours assistance.
Volume Discounts
Fuel purchase waives transient parking fees.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

Approach

PHILADELPHIA APPROACH 127.35
PHILADELPHIA APPROACH 133.875

Departure

PHILADELPHIA DEPARTURE 127.35
PHILADELPHIA DEPARTURE 133.875

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPHL (14nm)
Sat, 4/25 1:20 AM EDT
Sat, 4/25 2:00 AM EDT - Sun, 4/26 8:00 AM EDT
VFR
2:00 AM EDT - 9:00 AM EDT
Broken 6,000'
6sm
100° 6kts
VFR
9:00 AM EDT - 11:00 AM EDT
Showers in vicinity
Overcast 4,500'
6sm
110° 10kts
Gusts 18kts
MVFR
11:00 AM EDT - 3:00 PM EDT
Showers in vicinity
Overcast 2,500'
6sm
110° 12kts
Gusts 20kts
MVFR
3:00 PM EDT - 5:00 PM EDT
Light Rain and Mist
Overcast 1,500'
6sm
110° 12kts
Gusts 20kts
IFR
5:00 PM EDT - 8:00 PM EDT
Light Rain and Mist
Overcast 800'
4sm
100° 12kts
Gusts 20kts
IFR
8:00 PM EDT - 2:00 AM EDT
Light Rain and Mist
Overcast 600'
3sm
080° 10kts
Gusts 18kts
IFR
2:00 AM EDT - 8:00 AM EDT
Light Rain and Mist
Overcast 600'
4sm
060° 12kts
Gusts 20kts
TAF KPHL 250520Z 2506/2612 10006KT P6SM BKN060
   FM251300 11010G18KT P6SM VCSH OVC045
   FM251500 11012G20KT P6SM VCSH OVC025
   FM251900 11012G20KT 6SM -RA BR OVC015
   FM252100 10012G20KT 4SM -RA BR OVC008
   FM260000 08010G18KT 3SM -RA BR OVC006
   FM260600 06012G20KT 4SM -RA BR OVC006
17N
EffectiveExpiresCategoryNOTAM
Domestic
11/11/25
1517Z
11/11/26
1515Z
Runway!MIV 11/066 17N RWY 09/27 CLSD TO TGL 2511111517-2611111515
No
0800-1700
CROSS KEYS AIRPORT LLC
1531 N. TUCKAHOE ROAD
WILLIAMSTOWN, NJ 08094
Phone: 856-629-3033
HARRY STRAHLENDORF
1531 N. TUCKAHOE ROAD
WILLIAMSTOWN, NJ 08094
Phone: 856-629-3033
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MIV
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 09/27

3500 ft. x 50 ft.
ASPH
Good
NONE
NSTD

13,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 74°254°
Traffic Pattern Right Left
Markings NPI BSC
Markings Condition FAIR FAIR
Latitude 39° 42' 15"N 39° 42' 25"N
Longitude 75° 02' 20"W 75° 01' 37"W
Elevation 137' 161'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1DUE TO PARACHUTE DROP ZONE ON N SIDE OF ARPT, ALL TFC TO REMAIN S OF RWY 09/27.
A110-4DEER & BIRDS ON & INVOF ARPT.
A110-7ARPT UNATTND THANKSGIVING, CHRISTMAS, NEW YEAR'S DAY AND EASTER.
A110-8FOR CD CTC PHILADELPHIA APCH AT 800-354-9884.
A40-09/27LIRL LGT SPACING NSTD.
A51-27DSPLCD THLD MARKED WITH LGTS.
A52-27ROAD, FENCE, BLDGS, & TREES NEAR APCH END.
A56-09TREES ARE 125' R & L OF CNTRL EXTNDD.
A58-09+20 FT TREES 50 FT RT & LFT OF EXTD CTLN 0-200 FT FM APP END. +60 FT TREES 200 FT RT & LFT OF EXTD CTLN AT APP END.
CROSS KEYS (IATA: 17N) is a public airport located in CROSS KEYS, NJ, US.
