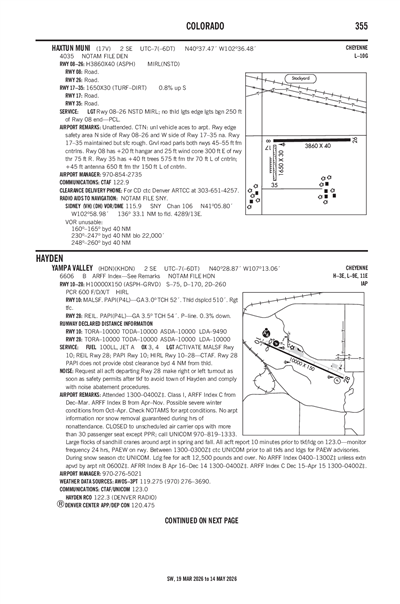

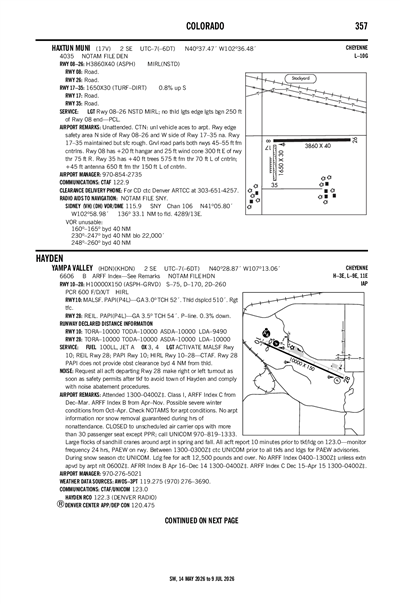

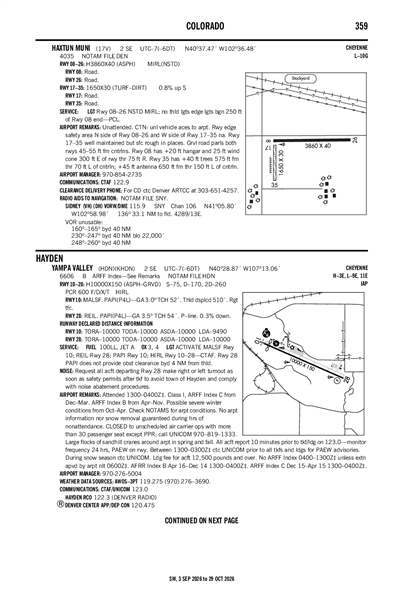

HAXTUN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

17V
Local 17V
HAXTUN MUNI
PublicPUB

2 miles SE of HAXTUN, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 37' 28"N 102° 36' 29"W
Elevation
4035' MSL
Pattern Alt
5035' MSL
Mag Variation
7°E
Declination
10°E
Fuel
None Listed
FSS
DENVER (DEN)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
6/11/26-7/9/26
KHEQ (15nm) IFR
5:55 PM MDT
Overcast 2,400'
Broken 1,100'
Broken 600'
10sm
64°F
62°F
29.98"Hg
090° 9kts
AO2 60008 T01780166 10180 20167 58015 $
METAR KHEQ 252355Z AUTO 09009KT 10SM BKN006 BKN011 OVC024 18/17 A2998 RMK AO2 60008 T01780166 10180 20167 58015 $
+ Add Your Business

17V FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KSNY (33nm)
Thu, 6/25 5:29 PM MDT
Thu, 6/25 6:00 PM MDT - Fri, 6/26 6:00 PM MDT
MVFR
6:00 PM MDT - 12:00 AM MDT
Thunderstorm in vicinity
Broken 1,200'
6sm
150° 12kts
Gusts 18kts
MVFR
Temporary 8:00 PM MDT - 11:00 PM MDT
Light Thunderstorm and Rain
Broken 1,000'
3sm
VRB° 30kts
Gusts 40kts
IFR
12:00 AM MDT - 4:00 AM MDT
Mist
Overcast 800'
1sm
VRB° 6kts
MVFR
4:00 AM MDT - 1:00 PM MDT
Broken 1,000'
6sm
170° 12kts
Gusts 17kts
VFR
1:00 PM MDT - 6:00 PM MDT
Broken 13,000'
Scattered 900'
6sm
170° 15kts
Gusts 22kts
TAF KSNY 252329Z 2600/2624 15012G18KT P6SM VCTS BKN012CB
   TEMPO 2602/2605 VRB30G40KT 3SM -TSRA BKN010CB
   FM260600 VRB06KT 1SM BR OVC008
   FM261000 17012G17KT P6SM BKN010
   FM261900 17015G22KT P6SM SCT009 BKN130
17V
No NOTAM Available
No
UNATNDD
TOWN OF HAXTUN
TOWN HALL BOX 205
HAXTUN, CO 80731
Phone: 970-774-6104
RON CARPENTER
TOWN HALL BOX 205
HAXTUN, CO 80731
Phone: 970-854-2735
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 08/26

3860 ft. x 40 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 08 Runway 26
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

1650 ft. x 30 ft.
TURF DIRT
Poor
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 40° 37' 36"N 40° 37' 20"N
Longitude 102° 36' 29"W 102° 36' 29"W
Elevation 4,021' 4,034'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1GRVL ROAD PARLS BOTH RWYS 45-55 FT FM CNTRLNS.
A110-3RWY EDGE SAFETY AREA N SIDE OF RWY 08/26 & W SIDE OF RWY 17/35 NA.
A110-4CTN: UNL VEHICLE ACES TO ARPT.
A110-7FOR CD CTC DENVER ARTCC AT 303-651-4257.
A16EMERG - POLICE DISPATCH 970-774-6289.
A30A-08+20 FT HANGAR & 25 FT WIND CONE 300 FT E OF RWY THR 75 FT R.
A30A-35+40 FT TREES 575 FT FM THR 70 FT L OF CNTRLN; +45 FT ANTENNA 650 FT FM THR 150 FT L OF CNTRLN.
A33-17/35_SURFRWY MAINTAINED BUT SFC ROUGH.
A40-08/26NSTD MIRL; NO THLD LGTS EDGE LGTS BGN 250 FT OF RWY 08 END - PCL.
A57-08CONTROLLING OBSTN EXCEEDS A 45 DEG SLP.
A58-08+15 FT ROAD AT THR PARL TO CTNRLN 50 FT L; +15 FT ROAD 55 FM THR BOTH SIDES; +8 FT SIGN 50 FT FM THR 75 FT L.
A58-2615 FT ROAD AT THR 50 FT R PARL TO CNTRLN FULL LEN.
HAXTUN MUNI (IATA: 17V) is a public airport located in HAXTUN, CO, US.
