18A
Local 18A
FRANKLIN-HART
PublicPUB

1 miles SW of CANON, GA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 20' 25"N 83° 07' 51"W
Elevation
890' MSL
Pattern Alt
1890' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A, JET A (FSII), 100LL
FSS
MACON (MCN)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
9/3/26-10/1/26
K18A VFR
11:35 PM EDT
Broken 10,000'
Broken 6,500'
Scattered 3,200'
10sm
74°F
70°F
29.99"Hg
Calm
AO2 T02350212
METAR K18A 070335Z AUTO 00000KT 10SM SCT032 BKN065 BKN100 23/21 A2999 RMK AO2 T02350212
+ Add Your Business

18A FBOs

Promote Listing
Franklin-Hart Airport
Phone: (706) 245-1002
Other: (706) 245-7555
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 8/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.12 5.68
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.625
(706) 245-1097

Common

CTAF 122.9
DUSK-0000. AFT 0000, ACTVT PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.

Center

ATLANTA CENTER 127.5
LOW/HIGH, APCH/DEP SVC PRVDD BY ATLANTA ARTCC ON FREQS 127.5/316.05 (ATHENS RCAG).

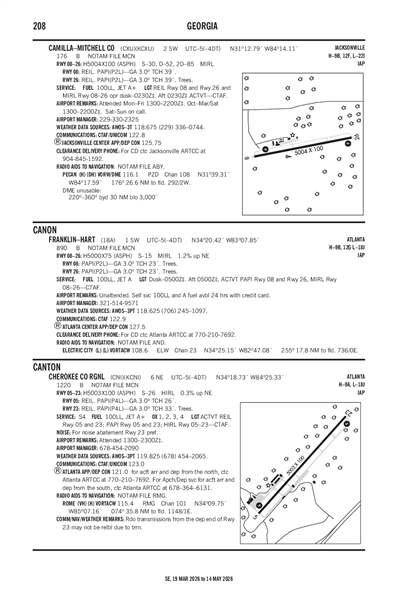

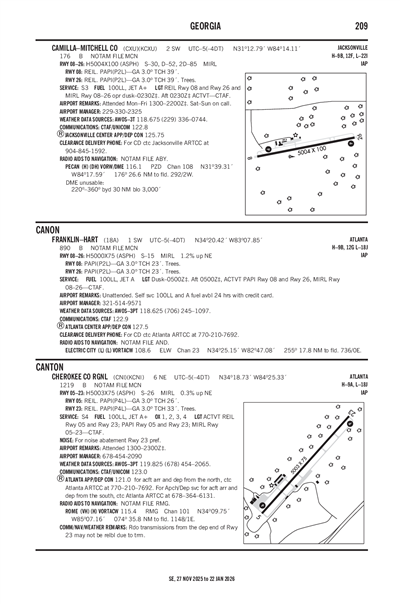

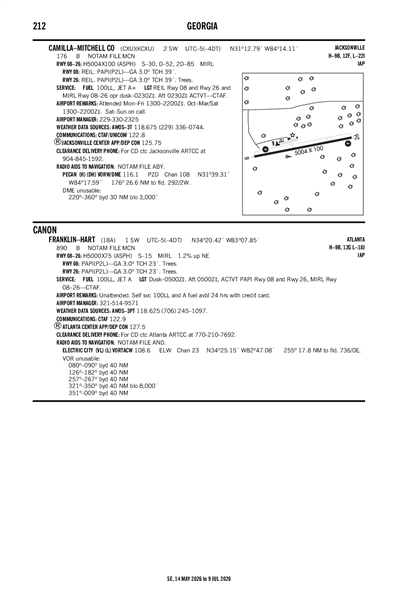

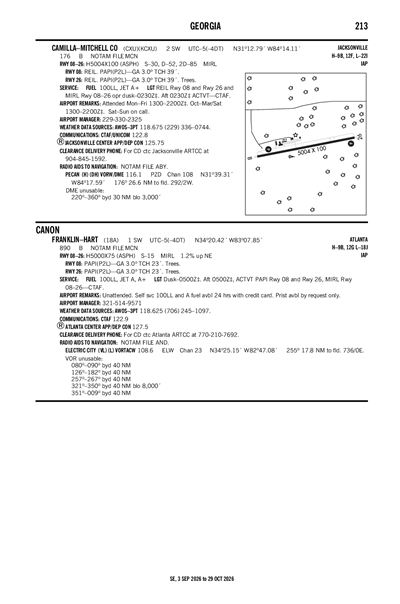

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KAND (23nm)
Sun, 9/6 7:21 PM EDT
Sun, 9/6 8:00 PM EDT - Mon, 9/7 8:00 PM EDT
VFR
8:00 PM EDT - 3:00 AM EDT
Showers in vicinity
Few 6,000'
6sm
090° 7kts
IFR
3:00 AM EDT - 10:00 AM EDT
Overcast 1,400'
Broken 800'
6sm
060° 7kts
MVFR
10:00 AM EDT - 4:00 PM EDT
Broken 1,600'
6sm
070° 13kts
MVFR
4:00 PM EDT - 8:00 PM EDT
Broken 2,100'
6sm
060° 13kts
Gusts 21kts
TAF KAND 062321Z 0700/0724 09007KT P6SM VCSH FEW060
   FM070700 06007KT P6SM BKN008 OVC014
   FM071400 07013KT P6SM BKN016
   FM072000 06013G21KT P6SM BKN021
18A
EffectiveExpiresCategoryNOTAM
Domestic
9/6/26
2011Z
1/4/27
2011Z
!MCN 09/208 18A OBST TOWER LGT (ASR 1021625) 342843.00N0830337.00W (9.1NM NNE 18A) 1125.3FT (305.1FT AGL) U/S 2609062011-2701042011
9/6/26
2007Z
1/4/27
2007Z
!MCN 09/207 18A OBST TOWER LGT (ASR 1021626) 342504.00N0831003.00W (5.0NM NNW 18A) 1038.4FT (262.5FT AGL) U/S 2609062007-2701042007
9/4/26
0726Z
10/19/26
0725Z
!MCN 09/140 18A OBST TOWER LGT (ASN 2021-ASO-49543-OE) 342750N0830144W (9.1NM NE 18A) 1000FT (255FT AGL) U/S 2609040726-2610190725
8/24/26
0320Z
10/8/26
0319Z
!MCN 08/847 18A OBST TOWER LGT (ASR 1018778) 341845.00N0825615.00W (9.7NM E 18A) 1217.8FT (399.9FT AGL) U/S 2608240320-2610080319
8/19/26
2028Z
9/19/26
2300Z
!MCN 08/716 18A OBST TOWER LGT (ASN 2025-ASO-6984-OE) 340816N0830616W (12.2NM S 18A) 940FT (265FT AGL) U/S 2608192028-2609192300
8/19/26
1123Z
11/18/26
0400Z
!MCN 08/704 18A OBST TOWER LGT (ASR 1205180) 341139.10N0830152.50W (10.0NM SSE 18A) 1057.1FT (309.1FT AGL) U/S 2608191123-2611180400
8/8/26
1057Z
10/7/26
0400Z
!MCN 08/297 18A OBST TOWER LGT (ASR 1021322) 342517.80N0831015.30W (5.2NM NNW 18A) 1104.0FT (263.1FT AGL) U/S 2608081057-2610070400
7/27/26
1619Z
10/25/26
1619Z
!MCN 07/825 18A OBST TOWER LGT (ASR 1040150) 342257.70N0831420.10W (5.9NM WNW 18A) 1203.1FT (479.0FT AGL) U/S 2607271619-2610251619
7/24/26
1816Z
10/23/26
1200Z
!MCN 07/762 18A OBST TOWER LGT (ASR 1208596) 342145.30N0831303.50W (4.5NM WNW 18A) 999.7FT (299.9FT AGL) U/S 2607241816-2610231200
7/24/26
1303Z
11/21/26
1303Z
!MCN 07/753 18A OBST TOWER LGT (ASR 1064869) 342216.40N0831524.10W (6.5NM WNW 18A) 1019.0FT (258.9FT AGL) U/S 2607241303-2611211303
No
UNATNDD
FRANKLIN COUNTY
823 AIRPORT ROAD
CANON, GA 30520
Phone: 706-244-0383
CHUCK FLOYD
823 AIRPORT ROAD
CANON, GA 30520
Phone: 321-514-9571
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
DUSK-0000. AFT 0000, ACTVT PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 08/26

5000 ft. x 75 ft.
ASPH
Fair
NONE
MED

15,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 72°252°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 34° 20' 18"N 34° 20' 33"N
Longitude 83° 08' 19"W 83° 07' 23"W
Elevation 828' 890'
Threshold Crossing Height 23 ft. AGL 23 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11FRANKLIN-HART AIRPORT AUTHORITY.
A110-1FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A14AIRPORT AUTHORITY.
A16ARPT PHONE 706-245-1002.
A70-100LLSELF SVC 100LL AND A FUEL AVBL 24 HRS WITH CREDIT CARD.
A70-A+PRIST AVBL BY REQUEST ONLY.
A81-APTDUSK-0000. AFT 0000, ACTVT PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.
FRANKLIN-HART (IATA: 18A) is a public airport located in CANON, GA, US.
