TATUM - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

18T
Local 18T
TATUM
PublicPUB

3 miles E of TATUM, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 15' 39"N 103° 16' 43"W
Elevation
3986' MSL
Pattern Alt
4986' MSL
Mag Variation
6°E
Declination
10°E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
FORT WORTH (ZFW)
Data Effective
5/14/26-6/11/26
KE57 (28nm) VFR
12:15 PM CDT
Few 11,000'
10sm
72°F
63°F
30.09"Hg
150° 7kts
AO2
METAR KE57 041715Z AUTO 15007KT 10SM FEW110 22/17 A3009 RMK AO2
+ Add Your Business

18T FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

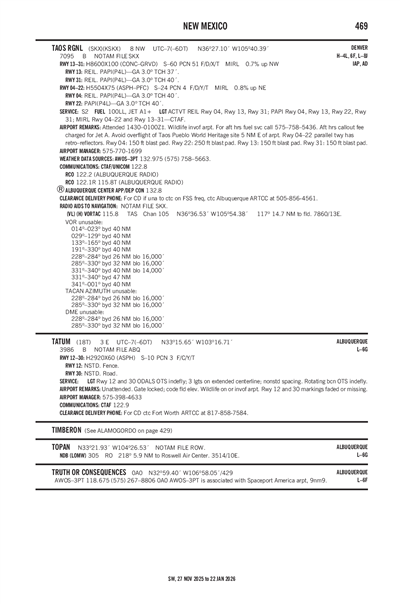

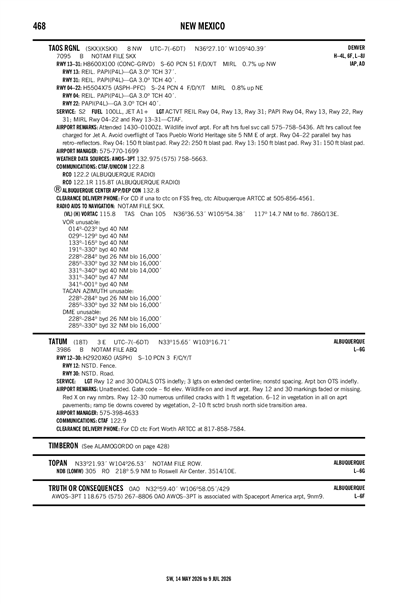

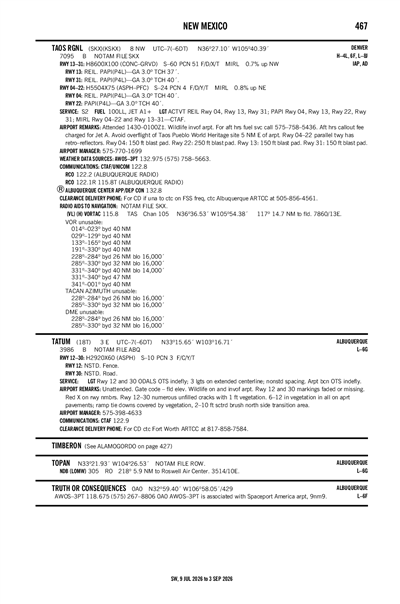

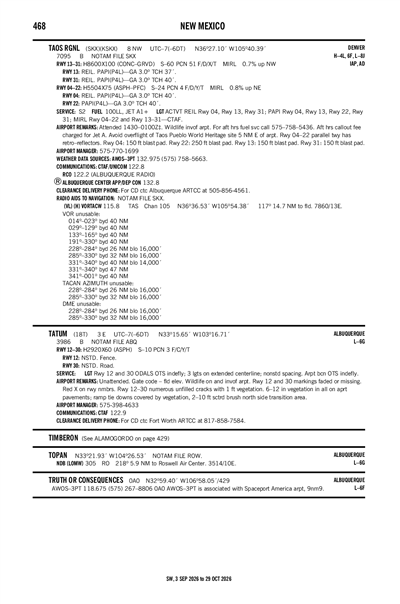

FAA A/FD Pages

Terminal Area Forecast

KHOB (35nm)
Thu, 6/4 11:20 AM MDT
Thu, 6/4 12:00 PM MDT - Fri, 6/5 12:00 PM MDT
VFR
12:00 PM MDT - 2:00 PM MDT
Scattered 15,000'
6sm
080° 9kts
VFR
2:00 PM MDT - 12:00 PM MDT
Scattered 25,000'
6sm
150° 10kts
TAF KHOB 041720Z 0418/0518 08009KT P6SM SCT150
   FM042000 15010KT P6SM SCT250
18T
EffectiveExpiresCategoryNOTAM
Domestic
6/4/26
1114Z
6/19/26
1014Z
!ABQ 06/068 18T OBST TOWER LGT (ASR 1030567) 331244.70N1032009.00W (4.1NM SW 18T) 4427.8FT (423.9FT AGL) U/S 2606041114-2606191014
5/15/26
2204Z
6/29/26
2204Z
!ABQ 05/199 18T OBST TOWER LGT (ASR 1326439) 331519.81N1031937.43W (2.5NM W 18T) 4217FT (214FT AGL) U/S 2605152204-2606292204
No
UNATNDD
TOWN OF TATUM
120 W BROADWAY P.O BOX 156
TATUM, NM 88267
Phone: 575-398-4633
ARNOLD RAMIREZ
120 W BROADWAY P.O BOX 156
TATUM, NM 88267
Phone: 575-398-4633
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
--
N/A
OTS INDEFLY.
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 12/30

2920 ft. x 60 ft.
ASPH
Poor
NONE

3/F/C/Y/T
10,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 132°312°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 33° 15' 48"N 33° 15' 29"N
Longitude 103° 16' 55"W 103° 16' 30"W
Elevation 3,986' 3,986'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights NSTD NSTD
Centerline Lights
Runway End Identifier Lights
A110-1GATE CODE - FLD ELEV.
A110-3WILDLIFE ON & INVOF OF ARPT.
A110-4FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-56"-12" VEGETATION IN ALL ON ARPT PAVEMENTS; RAMP TIE DOWNS COVERED BY VEGETATION, 2 FT-10 FT SCTRD BRUSH NORTH SIDE TRANSITION AREA.
A33-12/30_CONDNUMEROUS UNFILLED CRACKS WITH 1 FT VEGETATION.
A42-12_CONDRWY 12 MRKG FADED OR MISSING RED "X" ON NMBR.
A42-30_CONDRWY 30 MARKING FADED OR MISSING.RED "X" ON RWY NMBR.
A49-12ODALS OTS INDEFLY; 3 LGTS ON EXTDD CNTRLN; NONSTD SPACING.
A49-30ODALS OTS INDEFLY; 3 LGTS ON EXTDD CNTRLN; NONSTD SPACING.
A80OTS INDEFLY.
TATUM (IATA: 18T) is a public airport located in TATUM, NM, US.
